PASSENGER COMPARTMENT -
SPECIAL FACILITIES
44
WARE 401
Wheelchair installation
Obtain the ramp tool, seat belt extender and
wheelchair harness from their storage position in
the centre armrest. Where the kerb height is
below 125 mm (5 in.) the ramp extension will
also be required from the boot. Open the kerb
side passenger door, release the catches below

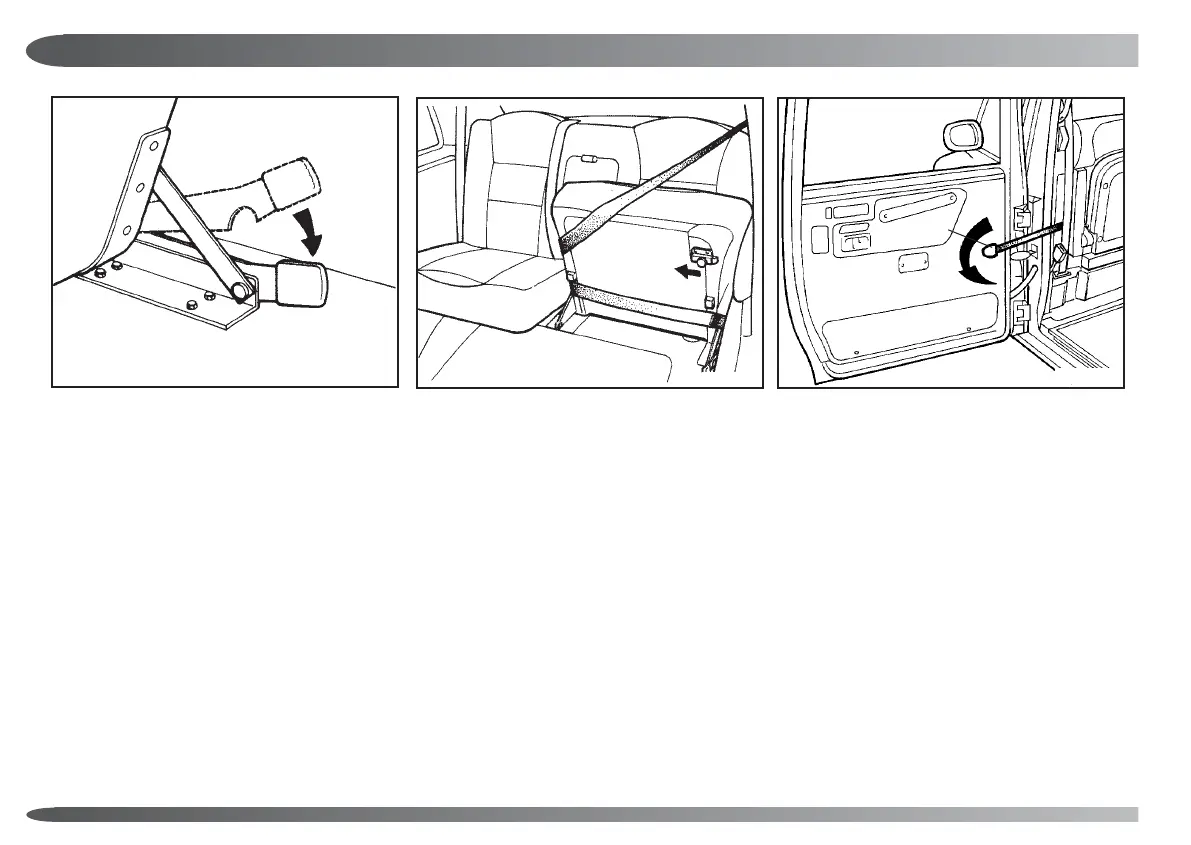

each rear seat, Secure the kerbside seat squab
in the upright position using the locking lever
incorporated into the outboard seat hinges
(Fig 1) adjacent to the wheel arches.
Then secure using the seat belt around the seat
base as illustrated (Fig 2).
Note: Always fasten the seat belt correctly and
do not attempt to secure the seat by wrapping
the seat belt round the seat catch.
Now secure drivers side rear seat squab upright
using the locking lever as before.
Disengage the door restraint strap end fitting (A)
by turning anti-clockwise 90° before pulling it
out so that the door may be fully opened.
WARE 400
EIV 0025
Fig 1 Fig 2
A
