Lucent Technologies -48V CPS4000/CPS4000 PLUS Cabinet Power System
Issue 13 December 2000 Installation and Testing 5 - 21
Distribution Modules, continued
ES610 The ES610 plug-in distribution module provides up to twelve GMT type
telecom fuses ranging in rating from 1/4 to 10 amperes. Twelve load and
return wire termination slots are provided with each module. The total
output current of each module is limited to 25 amperes. Distribute
system loads across fuse blocks. Refer to Figure 5-7.

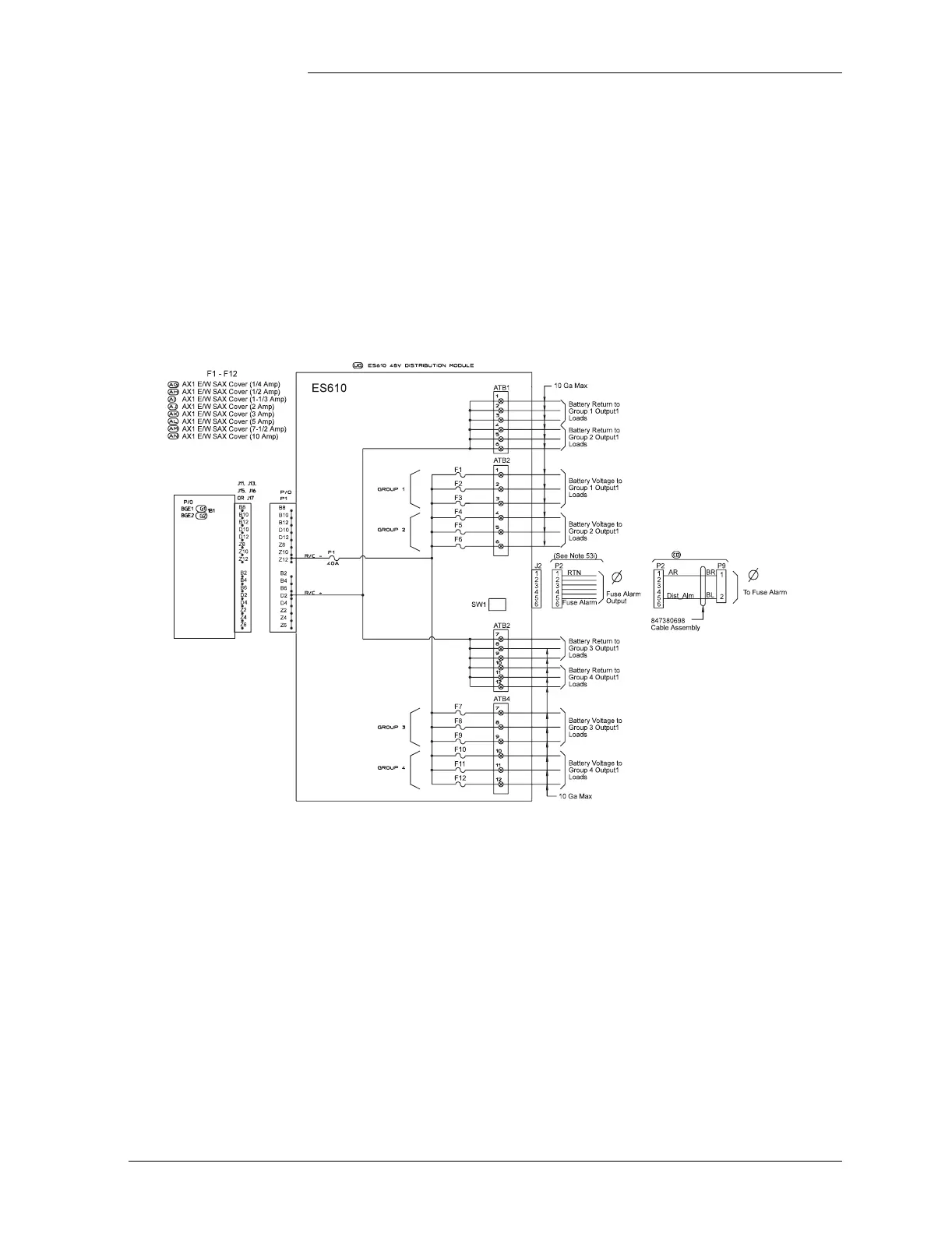

Figure 5-7: ES610 Distribution Module Wiring
