Lucent Technologies -48V CPS4000/CPS4000 PLUS Cabinet Power System
Issue 13 December 2000 Product Description 2 - 11
Power Modules, continued
Ringing
Generators,
continued
Two CPS ringing generators installed in a single-shelf plant provide
redundant ringing power. Two- and three-shelf plants offer additional
ringing capacity with up to two ringing generators in each shelf.
Intershelf signal cable adaptor, comcode 847922135, is to be installed at
J7 on each supplementary shelf that has ringers present. This cable is to
be used in conjunction with the two- or three-shelf cable assemblies.
The output ringing power on each shelf is provided on connector J14,
and is electrically isolated from the output ringing power of the other
shelves and from frame ground. Either one of the outputs at J14 may be
connected to frame ground to reference the ringing voltage to frame
ground.
Caution
Do not parallel the output ringing power of a multi-shelf plant
together. Ringer damage may result.

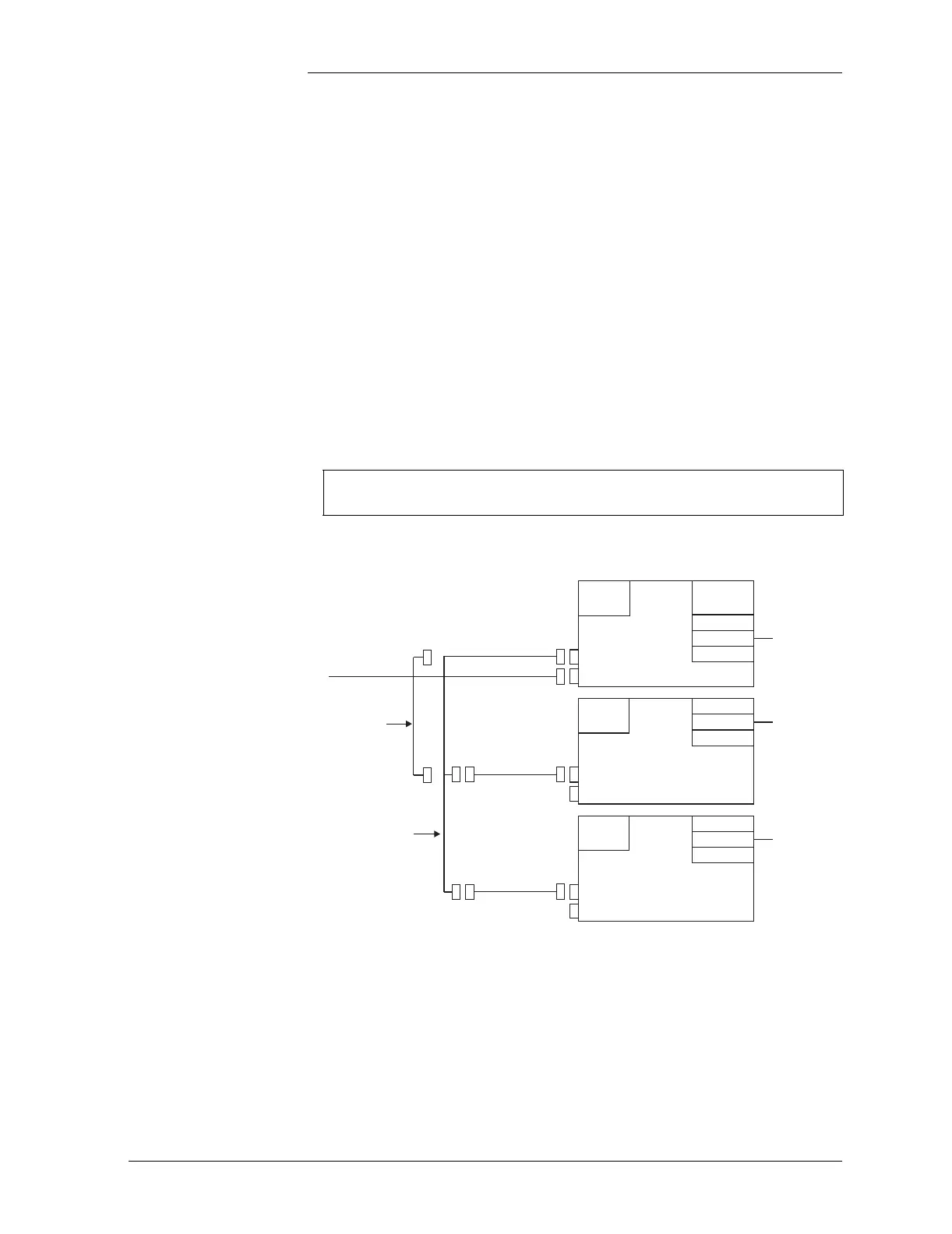

Figure 2-5: Intershelf Adapter Cables
No MCU
or ACU
No MCU
or ACU
MCU
or ACU
3rd Shelf
2nd Shelf
1st Shelf
J7
J6
J7
J6
J7
J6
J9
J9
J9
J14
J14
J14
J15
J15
J15
3 Shelf Cable
Assembly
847334794
2 Shelf Cable
Assembly
847334786
Ringing
Power
Ringing
Power
Ringing
Power
Office Alarms
Intershelf
Adapter
847922135
Intershelf
Adapter
847922135
J10
J12
J11
J13
