Lucent Technologies -48V CPS4000/CPS4000 PLUS Cabinet Power System
5 - 18 Installation and Testing Issue 13 December 2000
DC Distribution Wiring
Output Assemblies

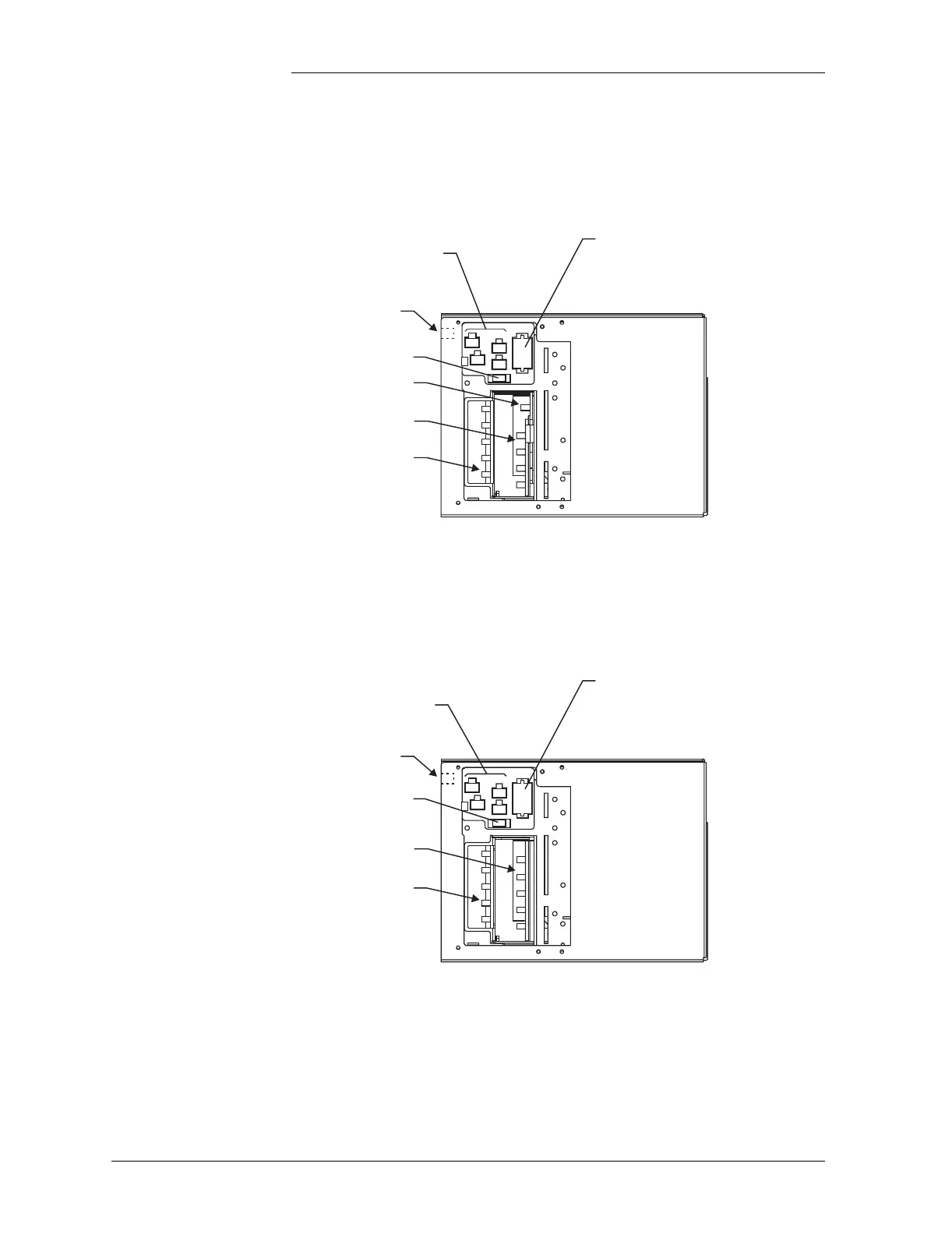

Figure 5-6: Output Assemblies (Right Side of CPS Shelf)
List 34 - Output for:
Supplemental Shelf or
Converter Only Shelf or
Batteryless Rectifier Plant
(Not Equipped with LVD
Contactor or Battery Shunt)
J14: Output 2 (Secondary)
List 1: 24V
List 2: 130V
List 3: Ringer
List 4: Not Used
J14 Output 2 (Secondary)
List 1: 24V
List 2: 130V
List 3: Ringer
List 4: Not Used
J10-J13 Thermal
Probe Connectors
J15 Output 2 (Secondary)
Current Monitor
(Front of CPS Shelf Access)
J15 Output 2 (Secondary)
Current Monitor
(Front of CPS Shelf Access)
J10-J13 Not Used
J9 Fuse Alarm
Connector
J9 Fuse Alarm
Connector
TB3 Discharge Bus (–)
(Primary)
TB2 Charge Bus (–)
(Primary)
TB2 Charge Bus (–) or
Converter Input (Primary)
TB1 Return Bus (+)
(Primary) (C.O.Ground)
TB1 Return Bus (+) or
Converter Input (Primary)
List 31
List 35
List 36
- Output w/o LVD Contactor
- Output Equipped w/ 100A LVD Contactor,
Initial Shelf w/ Rectifier in Initial Shelf Only
- Output Equipped w/ 150A LVD Contactor,
Initial Shelf w/ Rectifier in Initial,
and Supplemental Shelves
