Plug-in Modules
Introduction Refer to Figure 5-5 and the illustration in the following procedure for the
locations of the plug-in modules (power units).

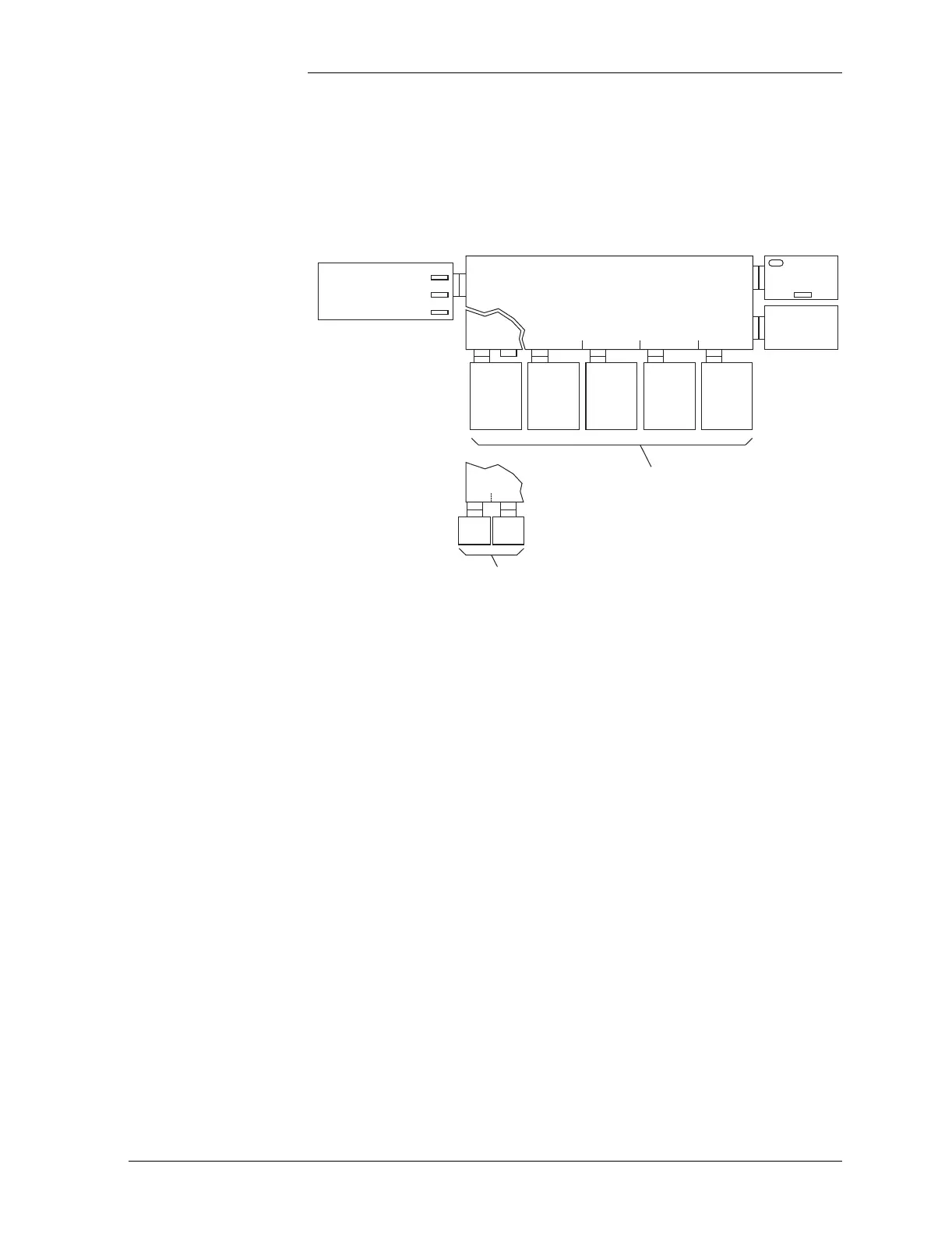

Figure 5-5: CPS Plug-In Modules
V1
Control Unit
Power Unit Slots
LVD
BSR1
SW440
SW1
SW2*
SW201
321
1B1A
45
Rectifiers
Converters
Distribution Modules
or
Ringers
SW2 on ES648A, ES648B,
ES648C, and ES648BZ
Boards Only.
*
