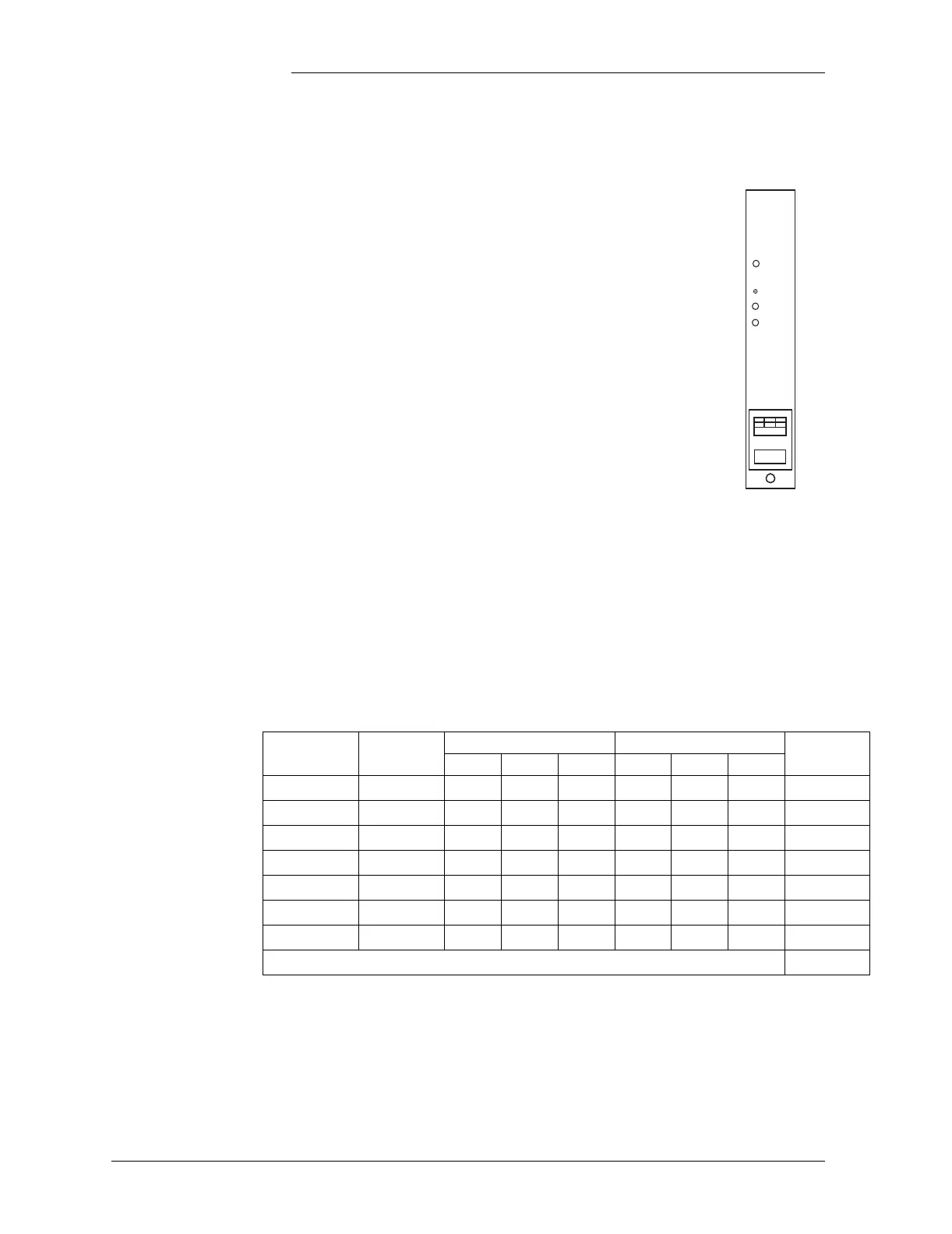

Lucent Technologies CPS4000 - Ringing Generators; Table 2-A: CPS4000 Ringing Generators

Lucent Technologies -48V CPS4000/CPS4000 PLUS Cabinet Power System
2 - 10 Product Description Issue 13 December 2000
Power Modules, continued
Ringing
Generators
Two CPS ringing generators installed in a single-shelf
plant provide redundant ringing power. Two-shelf
plants offer additional ringing capacity with up to two
ringing generators in each shelf.
Two ringers are installed in the shelf first beginning in
Slot 1, then rectifiers are installed beginning in Slot 2,
installing from left to right. Note: If ringers are not
installed, rectifiers are installed beginning in Slot 1.
The ringers feature ROM-based wave form generation
typical of Lucent Technologies Type-3 Ringing
Generators. CPS ringers feature a unique self-contained
ring switch unit that automatically detects a failed
ringing generator and switches the on-line spare into
active service.
Ringing output is provided on the shelf from the secondary bus output
connector J14. The ring signal cadencing and tripping device must be
provided by the end-use product.
Table 2-A provides information about the ringing power of the ringing
generators.
Alarm
On
Standby
Test
Ringing
Generator
Table 2-A: CPS4000 Ringing Generators
Apparatus
Code
Output
Capacity
Vout (ac-rms) Vout (dc) Frequency
HzMin. Nom. Max. Min. Nom. Max.
ES620
50VA 95 100 105 -43 -48 -60 20
ES620B
50VA 71 75 79 -43 -48 -60 25
ES621
100VA 95 100 105 -43 -48 -60 20
ES621A
100VA 95 100 105 -43 -48 -60 20
ES621B
100VA 85 90 95 -43 -48 -60 20
ES622B
100VA 75 80 85 -43 -48 -60 25
ES622C*
100VA 95 100 105 -43 -48 -60 20
*Provides EMI protection for Class B installations.
