Lucent Technologies -48V CPS4000/CPS4000 PLUS Cabinet Power System
Issue 13 December 2000 Installation and Testing 5 - 3
Installing Shelves and Batteries
Frame Mounted
Shelves, Batteries,
and Modules
If -48V CPS shelves, batteries, or battery modules are already mounted
in a cabinet or frame, proceed to “AC Input Wiring.”
One-Shelf Plants To install a one-shelf CPS plant, ensure that adequate space is available
for mounting the shelf. Dimensions are shown in Figure 5-1.
• The shelf is mounted in a 23-inch framework.
• The shelf requires a minimum of 10.75 inches of vertical height,
including a minimum of 1 inch above and 1 inch below the unit for
cooling.
• Twelve inches of space in front of the shelf is required for insertion
and removal of the power units.

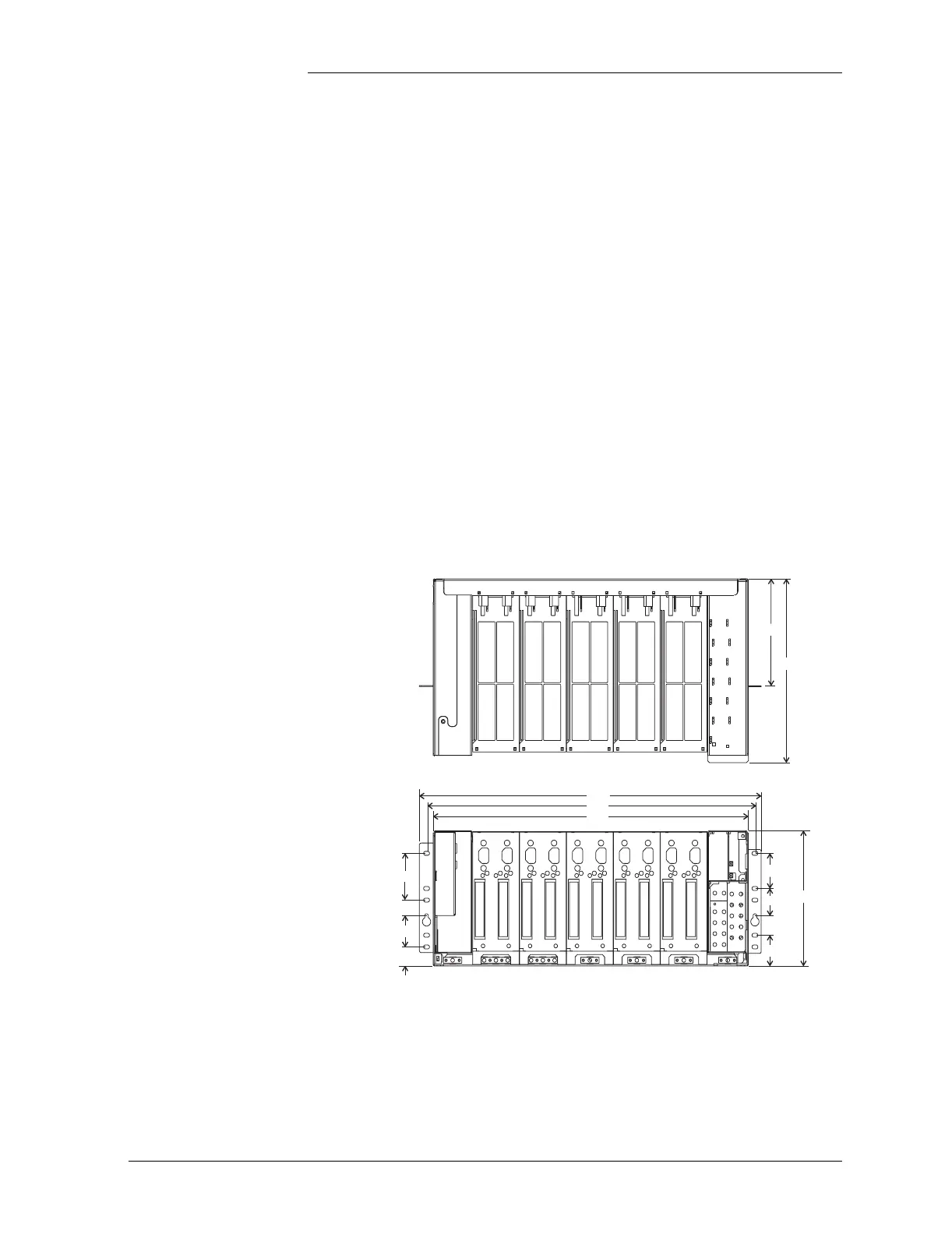

Figure 5-1: CPS Shelf Dimensions
Holes for Use with
1.00" Rack Spaces
Holes for Use with
1.75" Rack Spaces
1.97
1.25
1.75
2.25
8.67
21.40
1.22
2.00
1.00
3.00
22.31
23.22
12.00
7.00
TOP VIEW
J85500R-1
FRONT VIEW
