As shown in Figure 3-3, the front of the shelf is covered with an electromagnetic
compatibility (EMC) cover. If the shelf needs to be accessed for maintenance
activities, the cover is hinged to drop down 180 degrees or it can be easily
removed by pulling out when at 45 degrees. The rear of the shelf is covered over
the DS3 interface connectors and shelf cables. All covers are necessary to meet
the EMC guidelines set by the Federal Communications Commission (FCC).

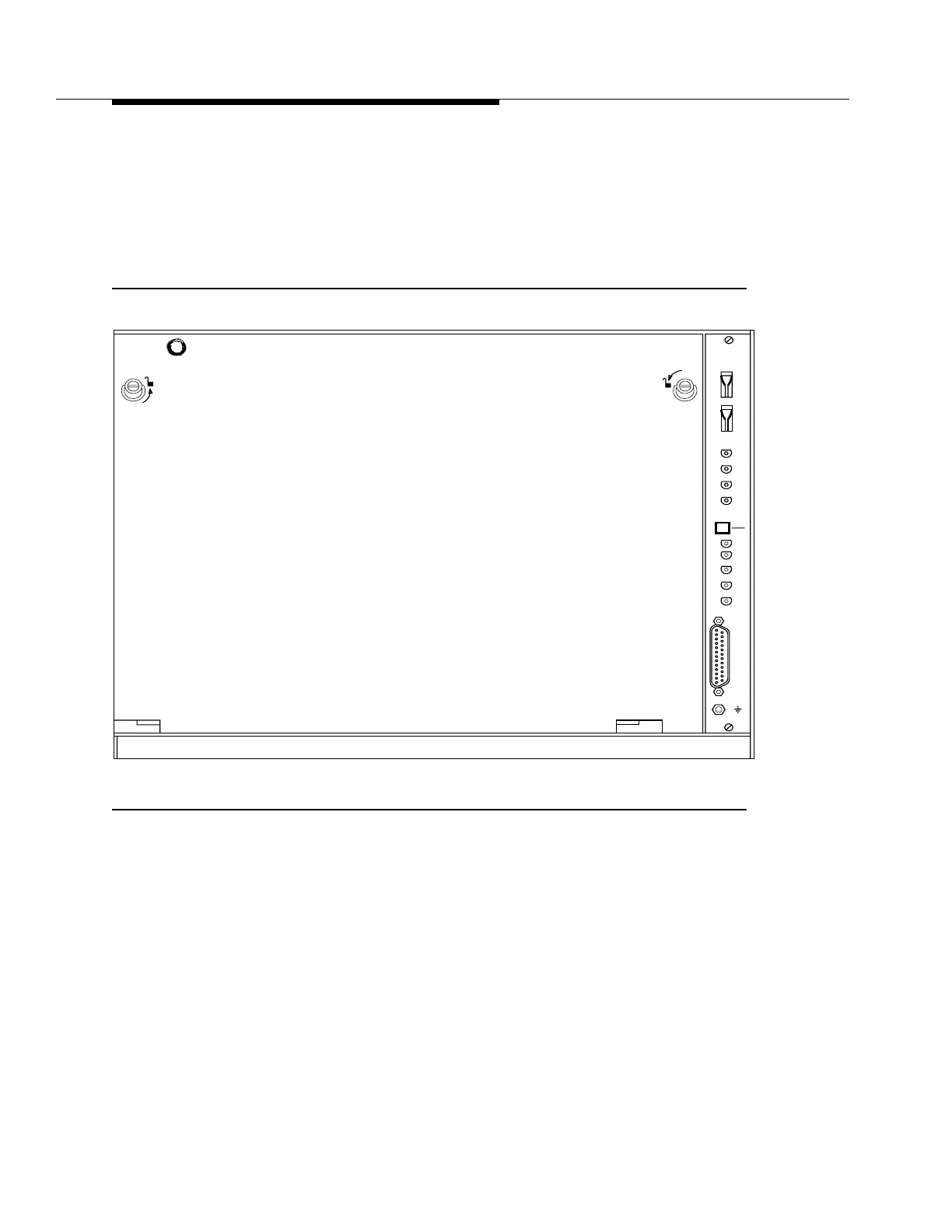

Figure 3-3. DDM-2000 OC-12 Front Panel
Lucent Technologies
Bell Labs Innovations
DDM-2000 OC-12
ON
ABN
NE
ACTY
FE
ACTY
CIT
ACO
TST
FA
FB
CR
MJ
MN
PWN
PWR
A
B
