Circuit Pack Descriptions
7-30 Issue 1 December 1997
BBG11 3DS3 Hardware Settings 7
The location of the BBG11 3DS3 circuit pack line build-out (LBO) jumpers is
shown in Figure 7-12. The 3DS3 LBO settings are shown in the table.

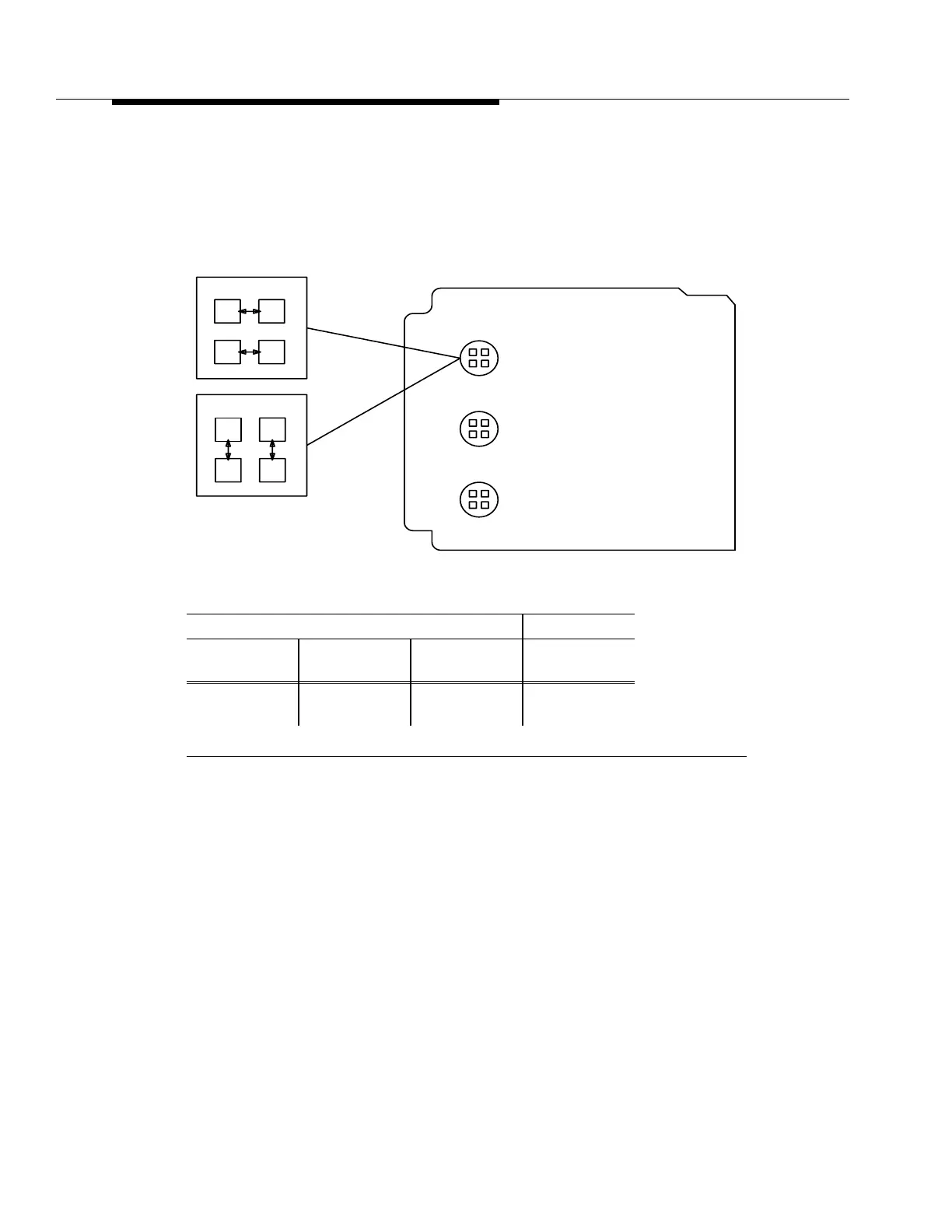

Figure 7-12. 3DS3 Line Build-Out (LBO) Jumpers
3DS3 LBO Settings
Cable Length (Ft) LBO Setting
734A
Cable
Mini-Coax
KS-19224
735A
Cable
0 to 225
>225 to 450
0 to 75
>75 to 150
0 to 125
>125 to 250
LBO IN
LBO OUT
# 2
# 1
Component Side
# 3
LBO OUT
LBO IN
Connector
Edge
