Lucent Technologies DDM-2000 OC-12 User Manual

363-206-295 DLP-546
8of7Page1997December1,Issue
Ring 1
Ring 2
MAIN-B-1 MAIN-B-2(P)
m-1
m-2
m-3
m-12
TSI
A
BD
m-1
m-2
m-3
m-12
m-1
m-2
m-3
m-12
m-1
m-2
m-3
m-12
Node 1
MAIN-B-1 MAIN-B-2(P)
m-1
m-2
m-3
m-12
TSI
BC
m-1
m-2
m-3
m-12
m-1
m-2
m-3
m-12
m-1
m-2
m-3
m-12
Node 2
3DS3
IN
OUTIN
OUT
MAIN-B-1 MAIN-B-2(P)
m-1 m-2 m-3 m-12
TSI
A
BD
m-1 m-2 m-3 m-12
m-1 m-2 m-3 m-12 m-1 m-2 m-3 m-12
Node 6
DS3
MAIN-B-1 MAIN-B-2(P)
m-1 m-2 m-3 m-12
TSI
AB D
m-1 m-2 m-3 m-12
m-1 m-2 m-3 m-12 m-1 m-2 m-3 m-12
Node 3
Node 5
MAIN-B-1MAIN-B-2(P)
m-1
m-2
m-3
m-12
TSI
ABC
m-1
m-2
m-3
m-12
m-1
m-2
m-3
m-12
m-1
m-2
m-3
m-12
Node 4
IN
OUT
DS3
IN
OUT
IN
OUT
OUT
IN
IN OUT
IN
OUT
OUT
IN
C
DA
C
D
MAIN-B-1MAIN-B-2(P)
m-1
m-2
m-3
m-12
TSI
A
BD
m-1
m-2
m-3
m-12
m-1
m-2
m-3
m-12
m-1
m-2
m-3
m-12
3DS3
C
C
::
::::
::
::
::
::
::
: ::
:
: ::
:
mb-1 to a-1 (ent-crs-sts1:mb-1,a-1)
where:
mb-1 = address of STS-1 #1 in MAIN OLIU
a-1 = address of DS3 port for 3DS3
circuit pack in FN A
mb-1 to a-1 (ent-crs-sts1:mb-1,a-1)
where:
mb-1 = address of STS-1 #1 in MAIN OLIU
a-1 = address of DS3 port for 3DS3
circuit pack in FN A
mb-1 to mb-1
pass through connection
(ent-crs-sts1:mb-1,mb-1)
mb-1 to mb-1
pass through connection
(ent-crs-sts1:mb-1,mb-1)
mb-1 to mb-1 pass through connection (ent-crs-sts1:mb-1,mb-1)
mb-1 to mb-1 pass through connection (ent-crs-sts1:mb-1,mb-1)

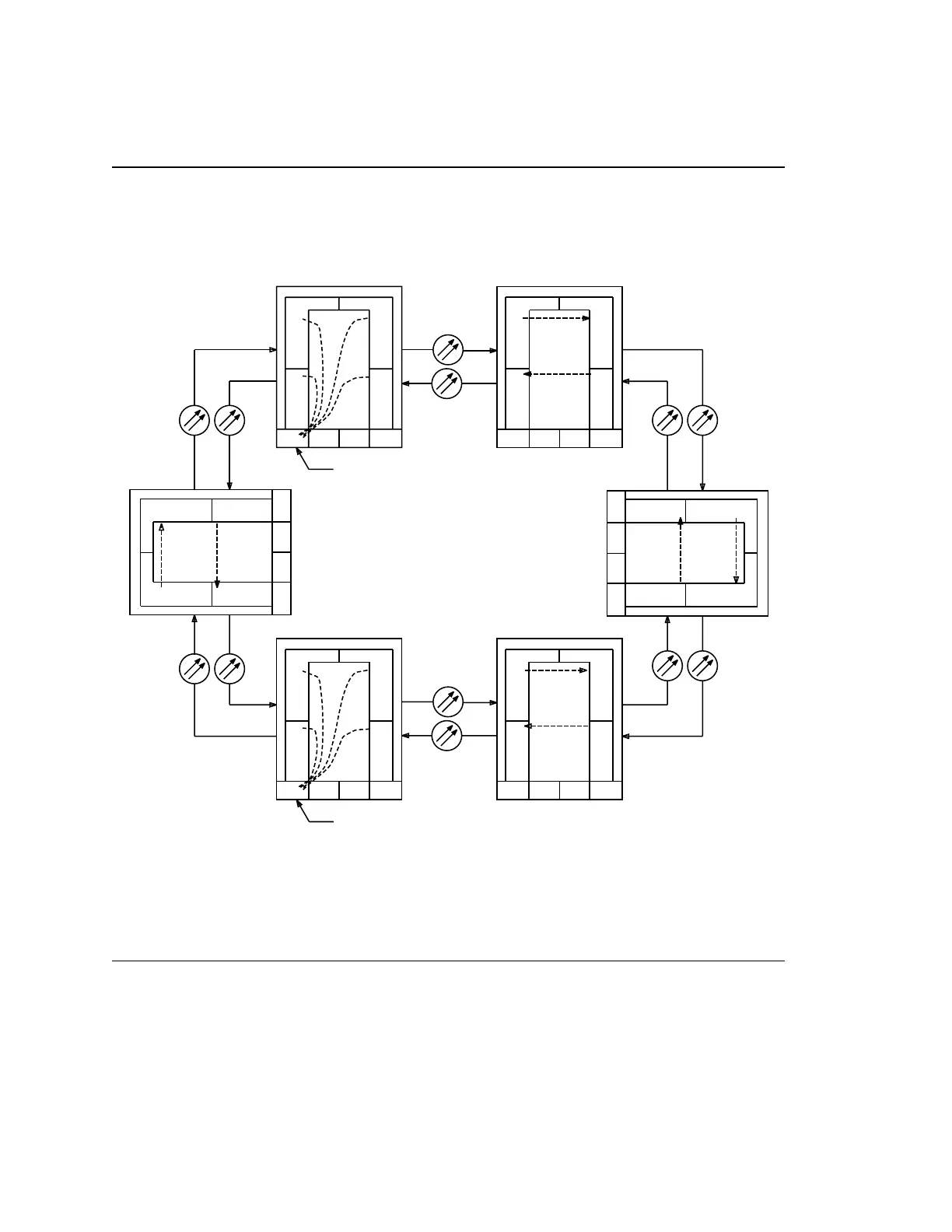

Cross-ConnectionsSTS1withDS3)to(DS3NetworkRingProtectedPathOC-124.Figure
