Circuit Pack Descriptions
7-44 Issue 1 December 1997
BBG12 3STS1E Hardware Settings 7

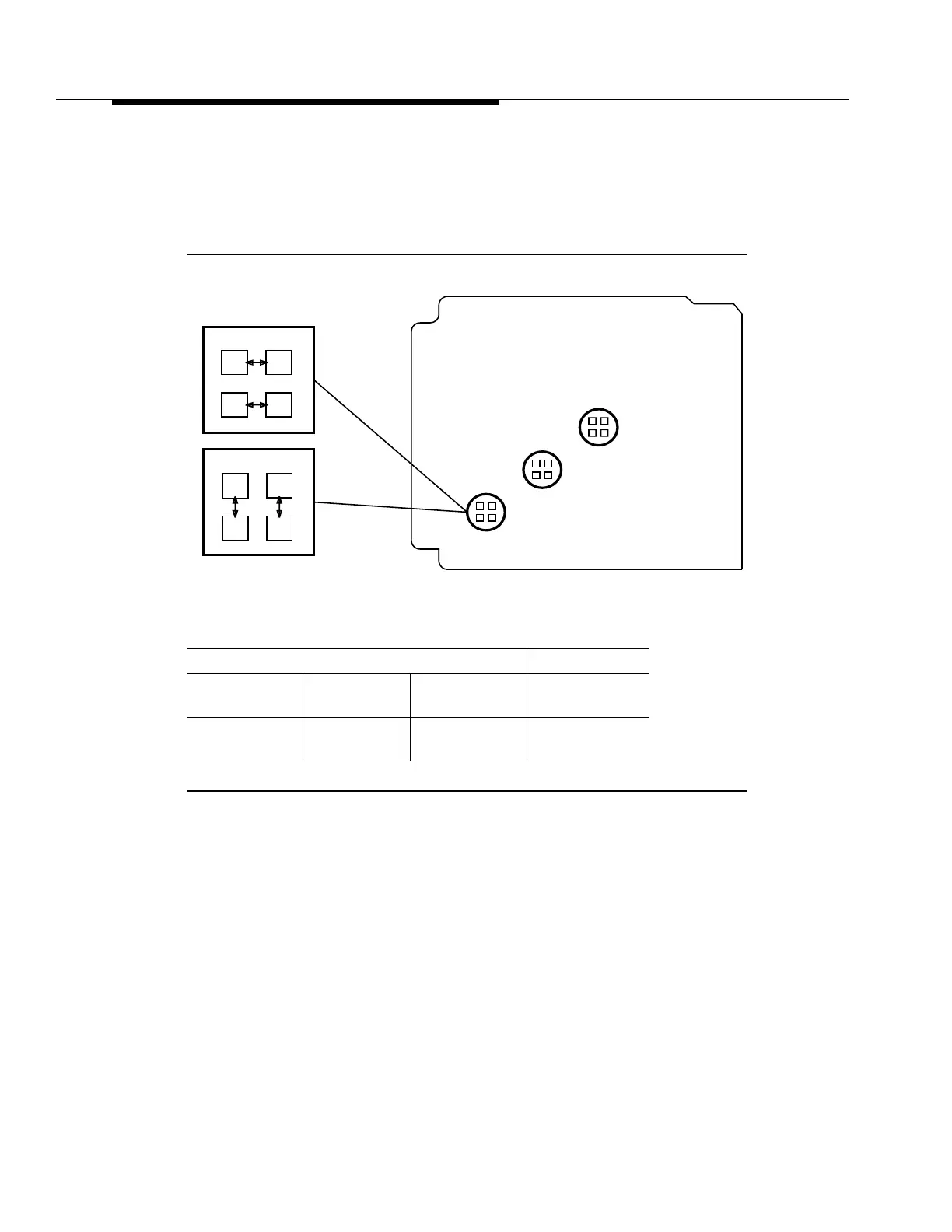

The location of the BBG12 3STS1E circuit pack LBO jumpers is shown in
Figure 7-18. The 3STS1E LBO settings are shown in the table.
Figure 7-18. 3STS1E Line Build-Out Jumpers
3STS1E LBO Settings
Cable Length (Ft) LBO Setting
734A
Cable
Mini-Coax
KS-19224
735A
Cable
0 to 225
>225 to 450
0 to 75
>75 to 150
0 to 125
>125 to 250
LBO IN
LBO OUT
Edge
Connector
LBO IN
LBO OUT
Component Side
# 3
# 2
# 1
