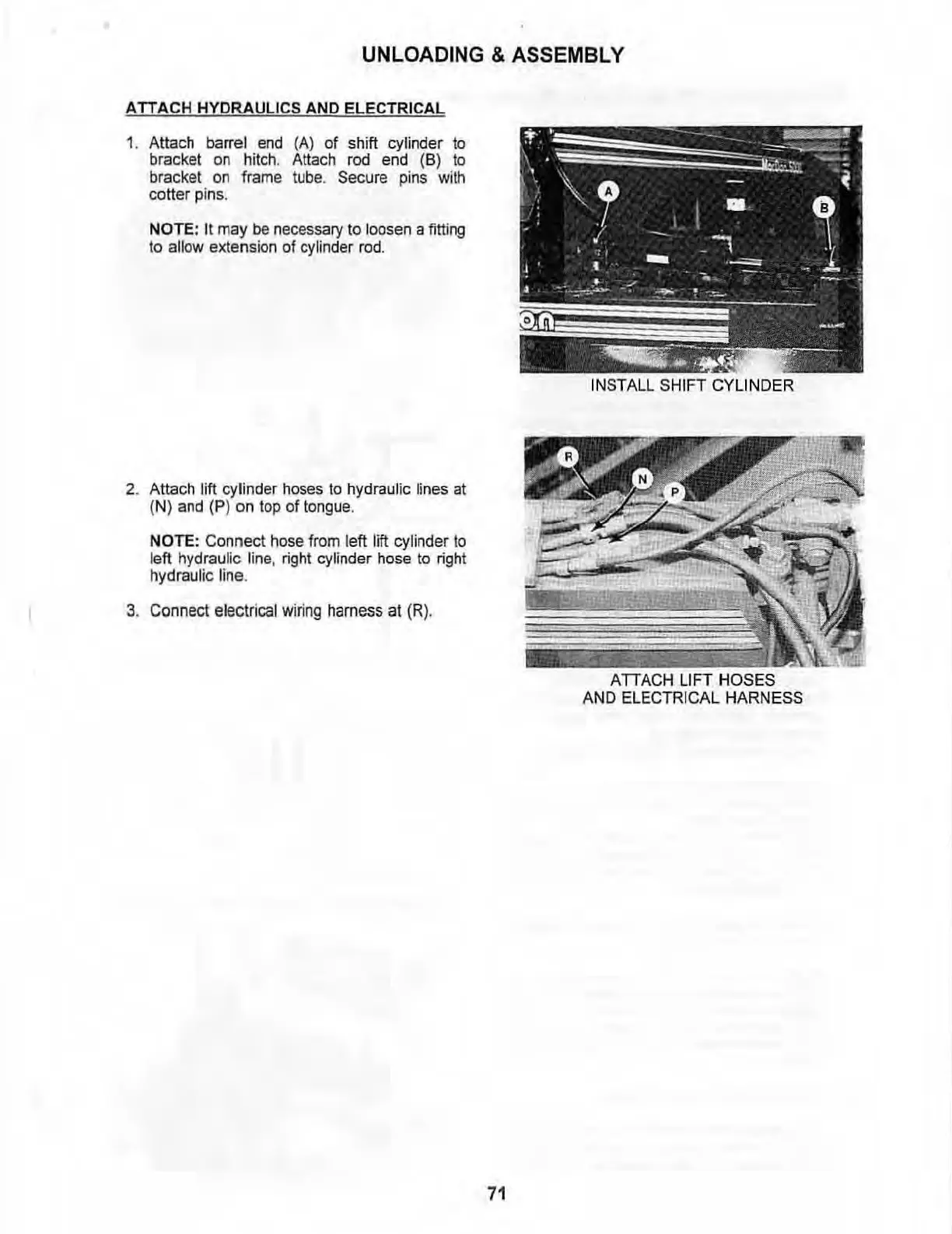

UNLOADING & ASSEMBLY
ATTACH HYDRAULICS AND ELECTRICAL
1. Attach barrel end ( A) of shift cylinder to
bracket on hitch, Attach rod e nd (6) to
bracket on frame lube. Secu re p in s with
co tt er pins.
NOTE : It may be necessary to loosen a fitting
to allow extension of cylinder rod.
2. Attach
lift cylinder hoses to hydraulic lines at
(N) and (P) on top
of tongue.
NOTE : Connect hose from le ft lift cylind er to
left hydraul
ic li ne , rig ht cylind er hose to right
hydraulic line.
3. Connect elect ri ca l wi ring harn ess at (R) .
71
INSTALL SH IFT CYLINDER
ATTACH LIFT HOSE S
AND ELECTRICAL HARNESS
