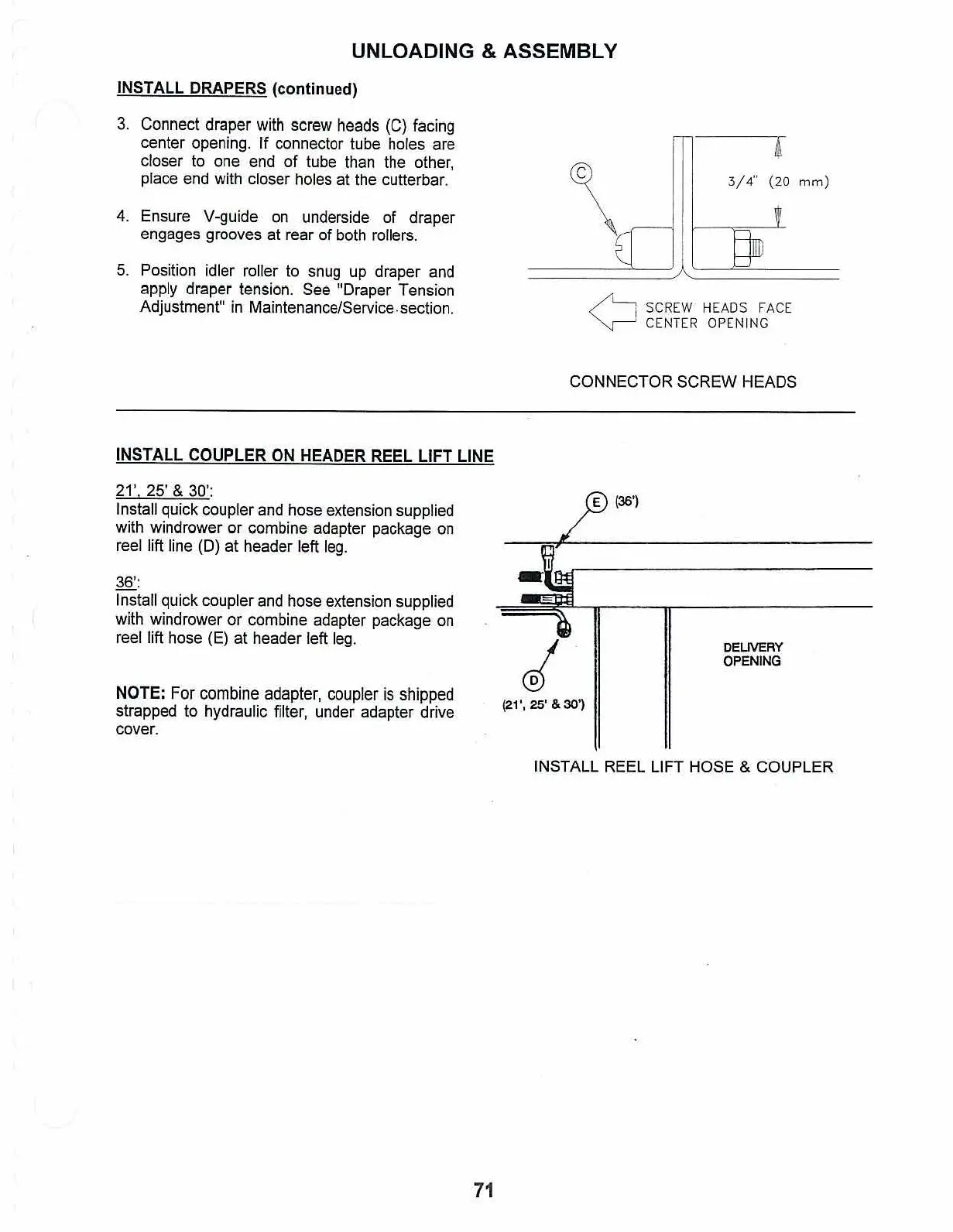

UNLOADING & ASSEMBLY
INSTALL DRAPERS (continued)
3.
Connect
draper
with
screw
heads
(C)
facing
center opening. If connector tube holes are
closer
to
one
end
of
tube
than
the
other,
place end with closer holes at the cutterbar.
4.
Ensure V-guide
on
underside of draper
engages grooves at rear
of
both rollers.
5.
Position idler roller
to
snug
up
draper and
apply draper tension. See "Draper Tension
Adjustment" in Maintenance/Service.section.
INSTALL
COUPLER
ON HEADER REEL
LIFT
LINE
6
\
3/4"
(20
mm)
~
~
~
~
SCREW
HEADS
FACE
~
CENTER OPENING
CONNECTOR
SCREW
HEADS
21',25'
&
3D',
Install quick coupler and hose extension supplied
with
windrower
or
combine
adapter
package
on
reel lift line
(0)
at
header left leg.
36',
Install quick coupler and hose extension supplied
with windrower or combine adapter package on
reel lift hose (E) at header [eft leg.
NOTE: For combine adapter, coupler is shipped
strapped to hydraulic filter, under adapter drive
cover.
~(361
,
(21',25' &30')
OELNERV
OPENING
71
INSTALL REEL LIFT HOSE & COUPLER
