500 HOUR - PERIODIC MAINTENANCE - EVERY 500 HOURS OF SERVICE
CHECK Hydraulic oil
MANITOU offers a hydraulic oil analysis kit, which might make it possible to delay
the recommended due date for periodic maintenance (2000 hours). In this case we
recommend an analysis of the hydraulic oil every 500 hours of operation.
The oil analysis kit also makes it possible to confirm the oil quality so as to obtain a
deadline of 2000 hours for specific uses causing constraints on the hydraulic circuit:
extreme environmental conditions, use of the attachments with a very high hydraulic
flow rate (such as a sweeper, or a concrete mixer).
- You can order an oil analysis kit from your dealer.
- When you receive the kit, collect a sample and follow the kit instructions.
- Keep the analysis report or replace the hydraulic oil, depending on the results.
MANITOU oil analysis kit Part No. 958162.
REPLACE I.C. engine oil
REPLACE I.C. engine oil filter
Place the telehandler on level ground, let the I.C. engine run at idle for a few minutes,
then stop the engine.
t
IMPORTANT
t
Dispose of the drain oil in an ecological manner.
Tighten the oil filter only by hand, and lock it by a fourth of a turn.

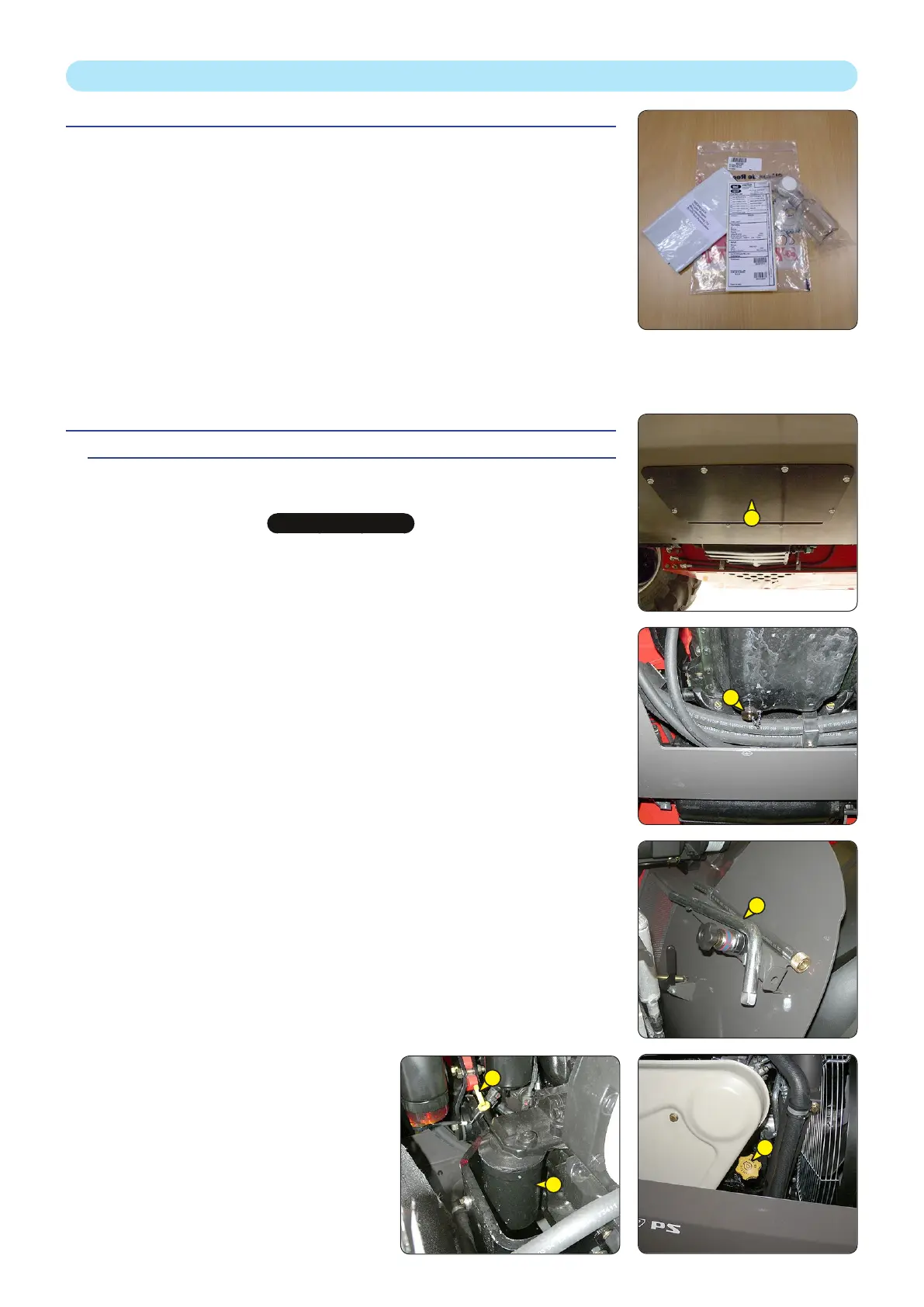

DRAINING OIL
- Open the engine bonnet.
- Remove access door 1.
- Place a container under the drain hole and unscrew the drain plug 2.
- Take drain hose 3.
- Place the end of the drain hose in the container and screw the hose fully to the
drain connector 2.
- Remove filler plug 4 to facilitate draining.
REPLACING THE FILTER
- Unscrew and dispose of the engine oil filter 5 and relevant gasket.
- Clean the mount of the filter with a wet clean cloth that does not leave lint.
- Lightly oil the gasket before reassembling the new oil filter (see: 3 - MAINTENANCE:
FILTER ELEMENTS AND BELTS) on its bracket.
NOTE: Ensure that the notches of the dust seal are correctly fitted in the grooves of
the filter holder.
FILLING UP THE OIL
- Remove, clean and refit drain hose 3.
- Refit and tighten the drain plug 2.
- Fill up with oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) through the filler
hole 4.
- Wait for a few minutes to allow oil falling into the crankcase.
- Start the engine and let it run for a few minutes.
- Check for any leakage from the drain plug and oil filter.
- Turn off the engine, wait for a few minutes
and check on gauge 6 that level is correctly
between the two reference points.
- Top-up if necessary.
- Refit the access door 1.
4
3
2
6
5
1
649100 EN-US-AU (20/05/2019) MLT 961-145 V PLUS L JD ST4 S1
