Manitou MLT 961-145 V PLUS L JD ST4 S1 - Page 131

3 - 23

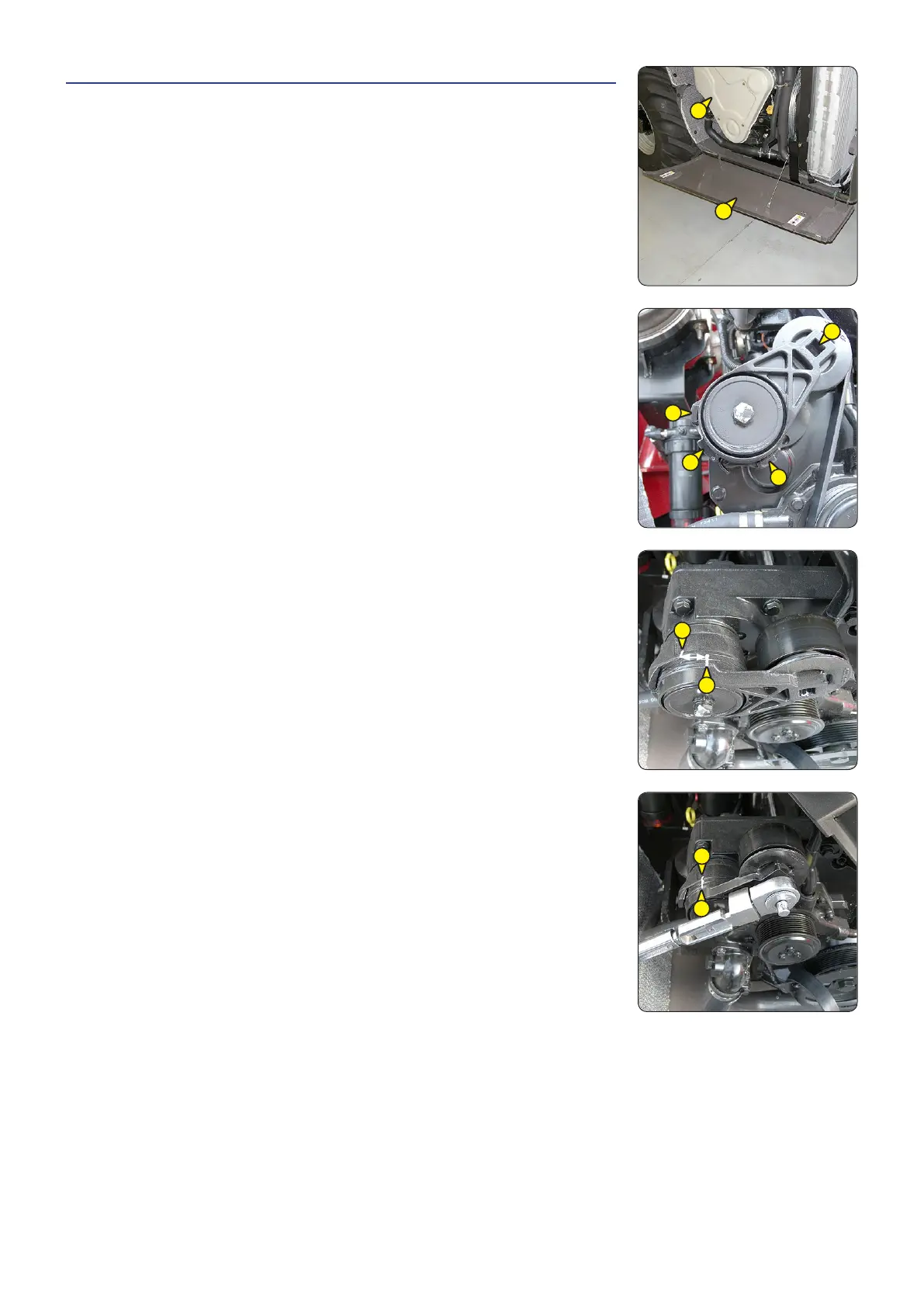

CHECK Automatic tensioner of the alternator belt
- Open engine bonnet and the lower cover 1.
- Remove the guard 2.
ALTERNATOR BELT TENSION
- The belt tensioner is designed to work within the travel limits of the boom between
the two fixed end-stops 3.
- Visually check the travel of the boom. If the pivoting boom stop 4 touches one of
the two fixed end-stops 3, check the condition of the alternator bracket, the belt
tensioner and the return pulley.
- Check the length of the alternator belt and change if necessary (see: 3 - MAINTENANCE:
H - OCCASIONAL MAINTENANCE).
- Do not check the automatic tensioner spring tension if the alternator belt tension
is correct. In case of doubts, contact your dealer.
AUTOMATIC TENSIONER SPRING TENSION (IF NECESSARY)
- Place a 1/2" socket wrench in the square of the automatic tensioner 5 to slacken
the belt and remove it.
- Release the force and remove the socket wrench.
- Make a mark A on the pivoting arm, measure a distance of 21 mm (0.8 in) from this
point and make another mark B on the fixed part of the tensioner.
- Place a torque wrench, with the centres of the pulley and the tensioner aligned and
turn the tensioner until marks A and B are aligned. The torque should be 20 N.m.
- If necessary replace the automatic belt tensioner.
- Refit the alternator belt (see: 3 - MAINTENANCE: H - OCCASIONAL MAINTENANCE).
B
A
21 mm/0.8 in
A
B
1
2
3
4
3
5
