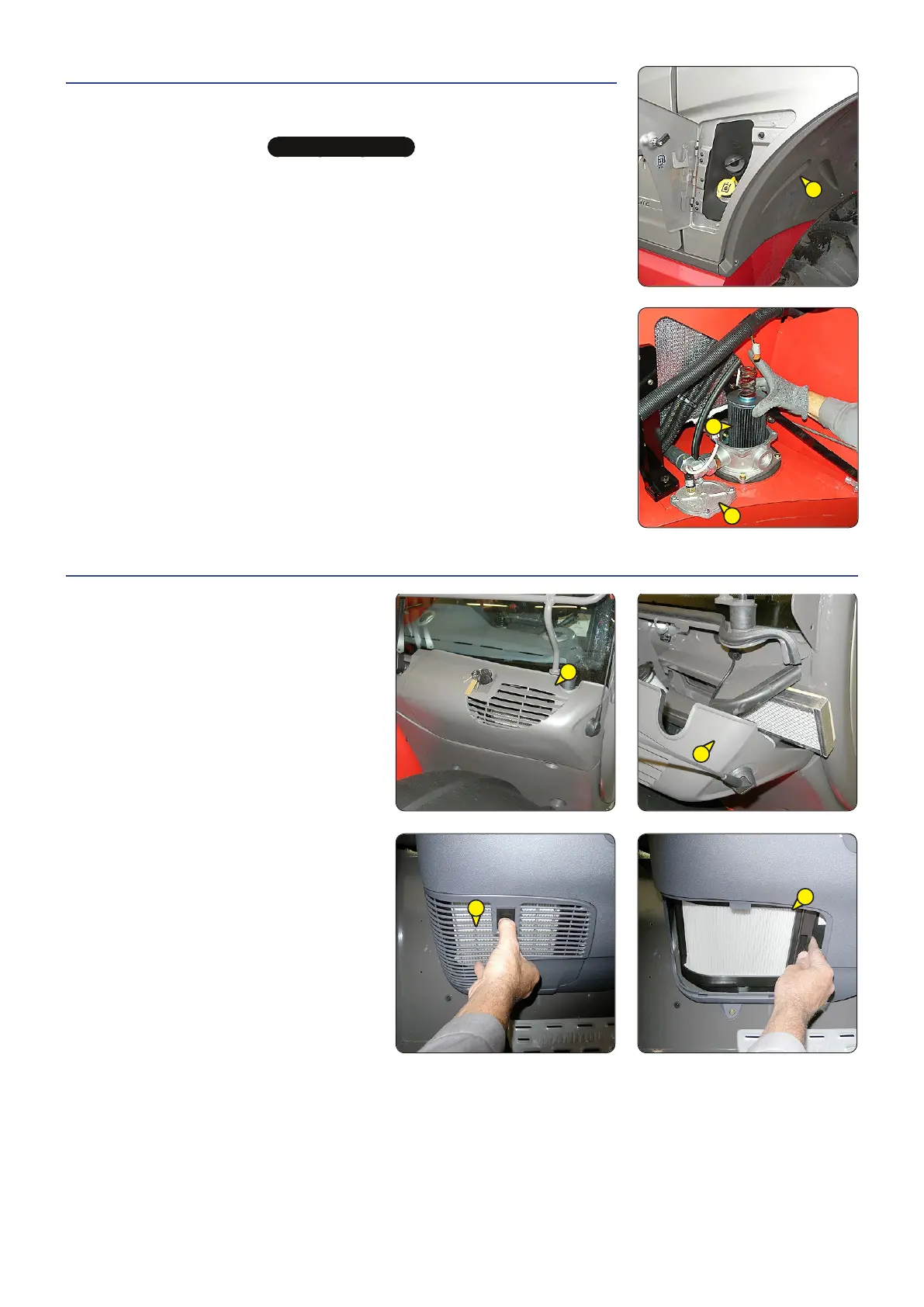

REPLACE Hydraulic return oil filter cartridge
Place the telehandler on level ground with the I.C. engine stopped and boom retracted
and lowered as far as possible.
t
IMPORTANT
t
Before any intervention, thoroughly clean the area surrounding the drain plugs, the suction strainer and the outside of
the filter on the hydraulic tank.
- Remove the guard 1.
- Unscrew the fastening screws of cover 2.
- Wait for a few minutes for oil to flow out into the receptacle.
- Remove the hydraulic return oil filter cartridge 3 and fit new replacement cartridge
(see: 3 - MAINTENANCE: FILTER ELEMENTS AND BELTS).
- Make sure that the cartridge is correctly positioned and refit the cover 2.
- Reassemble the guard 1.
REPLACE Cab ventilation filters
CAB EXTERNAL VENTILATION FILTER
- Remove the guard 1 using a contact wrench.
- Remove the cab ventilation filter 2 and replace
it with a new one (e: 3 - MAINTENANCE:
FILTER ELEMENTS AND BELTS).
- Refit the guard.
CAB INTERNAL VENTILATION FILTER
- Remove the protection grille 3.
- Remove the cab ventilation filter 4 and replace
it with a new one (e: 3 - MAINTENANCE:
FILTER ELEMENTS AND BELTS).
- Refit the protection grille.
