ATTACHMENT CONNECTION MANOEUVRES

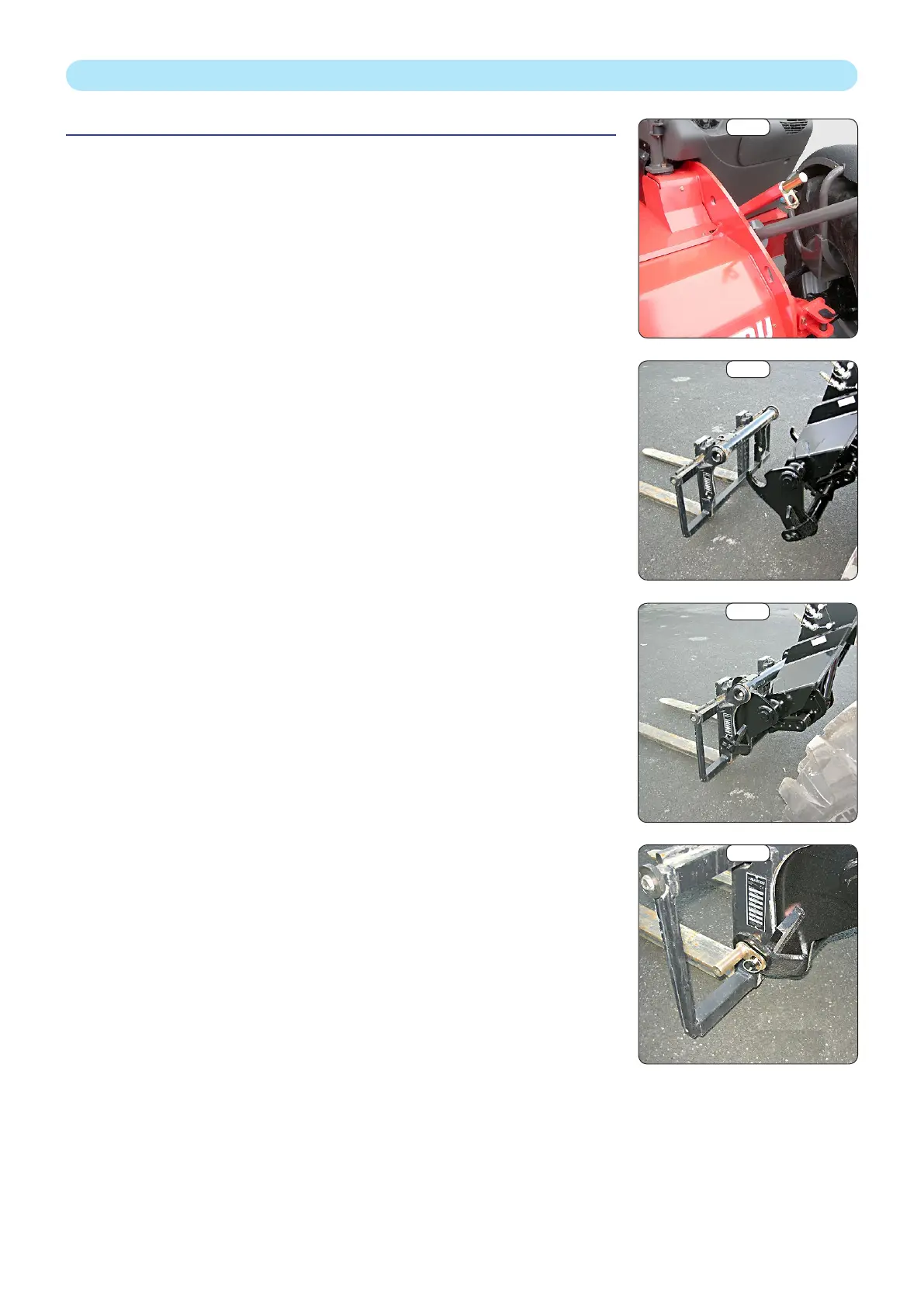

1 - ATTACHMENT WITHOUT HYDRAULIC CIRCUIT WITH MANUAL LOCK
ENGAGING THE ATTACHMENT
- Check that the attachment is in a position which simplifies the connection to the
carriage. If it is badly positioned, take all the necessary precautions to move it safely.
- Check that the locking pin is engaged in the support (Fig. A).
- Place the telehandler with the boom lowered in front of and parallel to the attachment
and tilt the carriage forward (Fig. B).
- Take the carriage under the connection pipe of the attachment, slightly raise the
boom and tilt the carriage back in order to position the attachment (Fig. C).
- Raise the attachment off the ground for easier engagement.
MANUAL LOCKING
- Take the locking pin from the support (Fig. A) and lock the attachment in place
(Fig. D). Do not forget to fit on the split pin.
MANUAL RELEASE
- Follow the MANUAL LOCKING procedure in reverse order, taking care to replace
the locking pin in its support (Fig. A).
LAYING THE ATTACHMENT
- Follow the ENGAGING THE ATTACHMENT procedure in reverse order, taking care
to lay the attachment flat on the ground and in closed position.
A
B
C
D
6
649100 EN-US-AU (20/05/2019) MLT 961-145 V PLUS L JD ST4 S1
