2 - 61

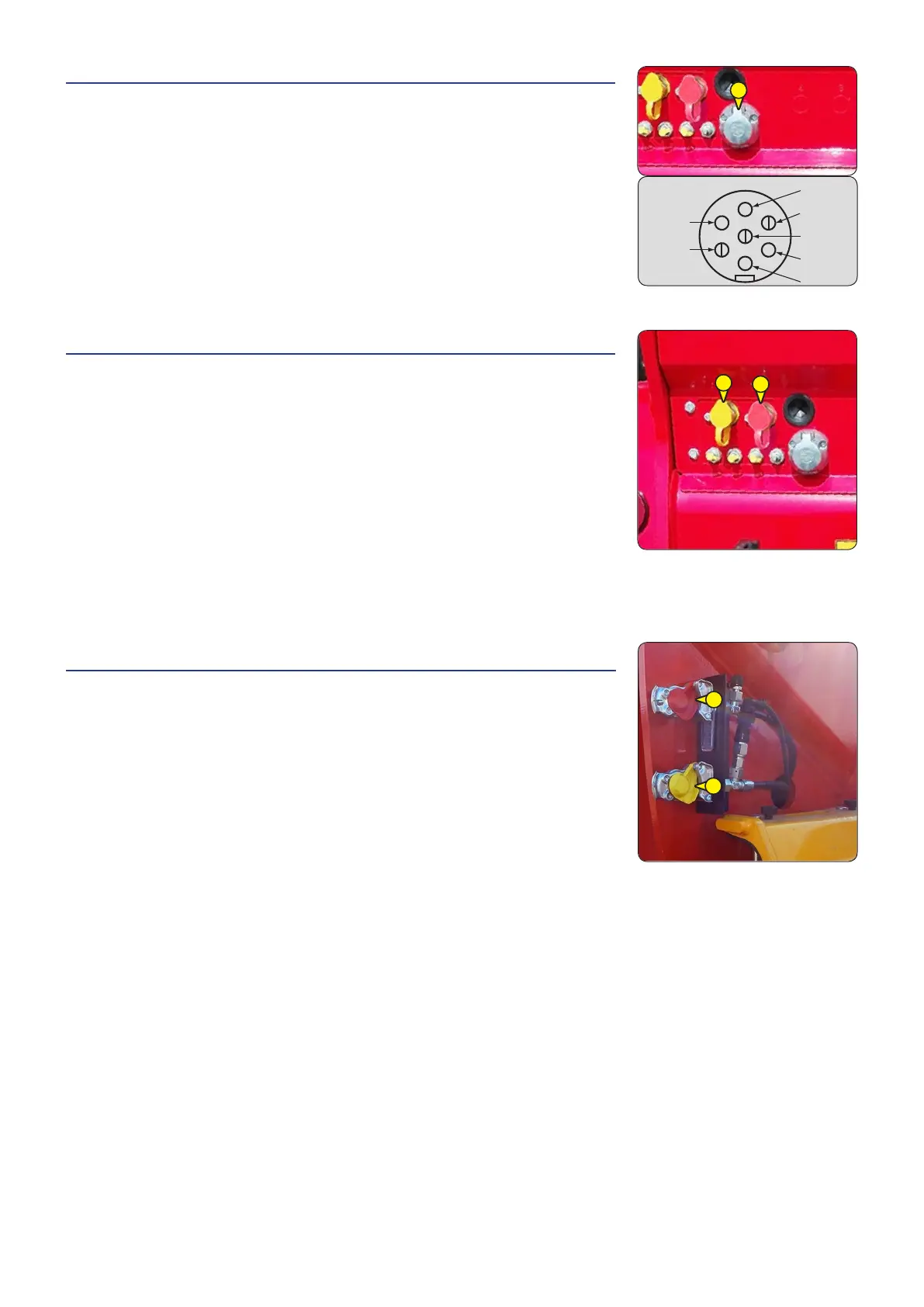

10 - REAR ELECTRIC SOCKET
- Connect the male plug to the female socket 1 on the telehandler and make sure
the lights of the trailer or the light bar are working properly.
• A - Rear left turning light.
• B - OPTION Rear fog lights.
• C - Ground.
• D - Rear right turning light.
• E - Rear right light.
• F - Rear stop lights.
• G - Left rear headlight + number plate.
11 - TRAILER BRAKE SYSTEM (OPTIONAL)
TRAILER BRAKE WITH SINGLE LINE "CL"
- Connect the brake pipe to the line "CL" 1 of the truck.
- Check proper operation of the trailer brakes and familiarise yourself with the effects
of braking before using it on public roads.
TRAILER BRAKE WITH DOUBLE LINE "CL" and "SL"
- Connect the brake pipe to the line "CL" 1 of the truck.
- Connect the brake release pipe to the line "SL" 2 of the truck.
- Check proper operation of the trailer brakes and familiarise yourself with the effects
of braking before using it on public roads.
12 - TRAILER BRAKE SYSTEM (COMPRESSED AIR) (OPTIONAL)
TRAILER BRAKE WITH SINGLE LINE "CL"
- Connect the brake pipe to the line "CL" 1 of the truck.
- Check proper operation of the trailer brakes and familiarise yourself with the effects
of braking before using it on public roads.
TRAILER BRAKE WITH DOUBLE LINE "CL" and "SL"
- Connect the brake pipe to the line "CL" 1 of the truck.
- Connect the brake release pipe to the line "SL" 2 of the truck.
- Check proper operation of the trailer brakes and familiarise yourself with the effects
of braking before using it on public roads.
A
G
C
B
D
E
F
1
1
2
2
1
