2 - 60
9 - HYDRAULIC TRAILER HOOK (OPTION)
t
IMPORTANT
t
Never use the trailer hook to raise the rear of the lift truck
(replacing the rear wheel, for example).
t
IMPORTANT
t
When released, ensure that the trailer stands on its own.

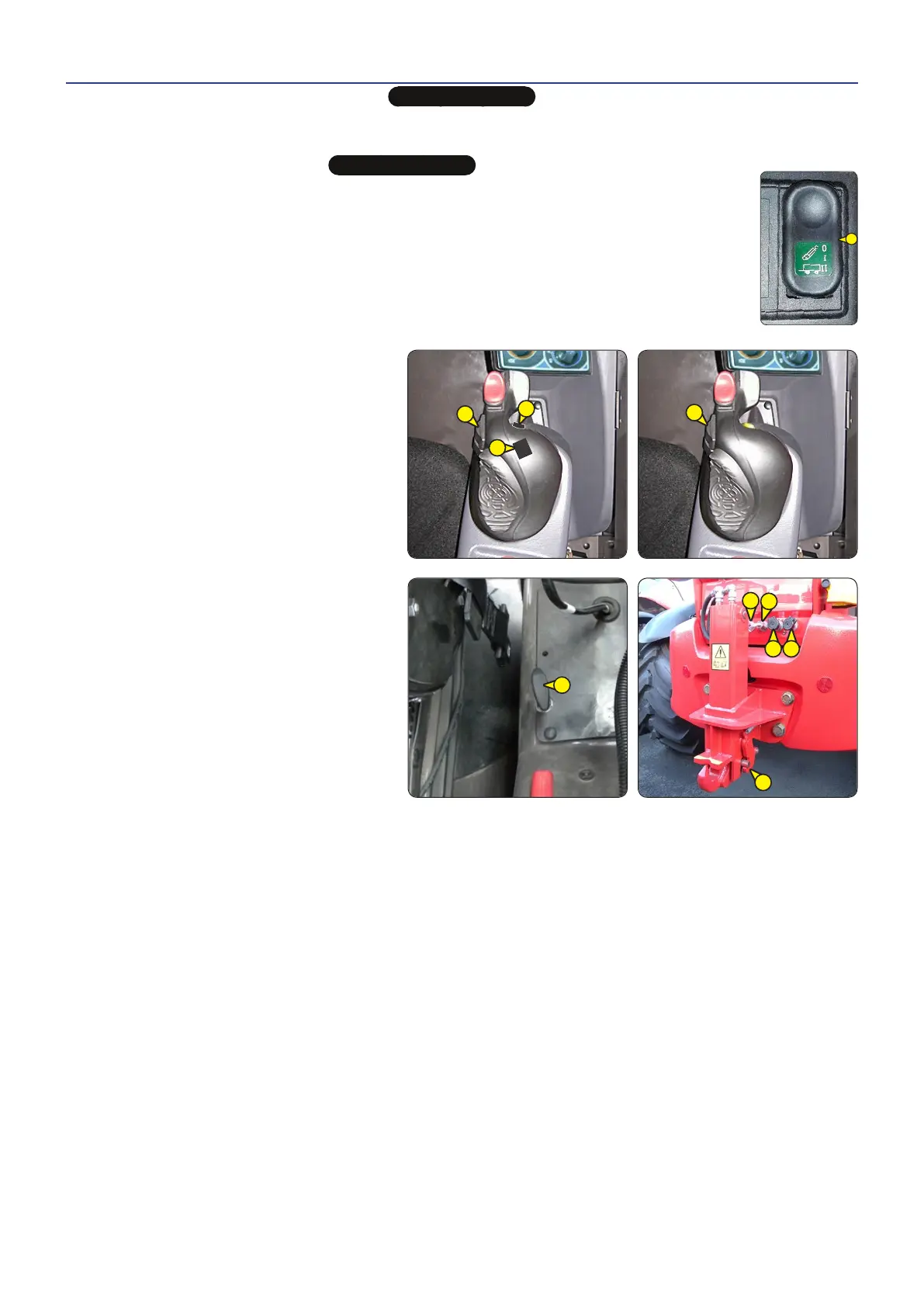

- Press switch 4 to position "II" to select the rear hydraulic line "L3 - L4" that moves the hydraulic hook.
- Actuate the roller 1 on the joystick forward to release the locking pin of hook 2.
- Pull lever 3 and keep this position.
- Actuate the roller 1 on the joystick backward to lower the towing hook.
- Release lever 3.
- Couple or uncouple the trailer.
- Actuate the roller 1 on the joystick forward to
fully lift the towing hook.
- Then actuate the roller 1 on the joystick
backward to bring the locking pin on hook 2.
3
2
4
1
OK
OK
1
L3
L4
L2
L1
(According to equipment)
649100 EN-US-AU (20/05/2019)
