2 - 59

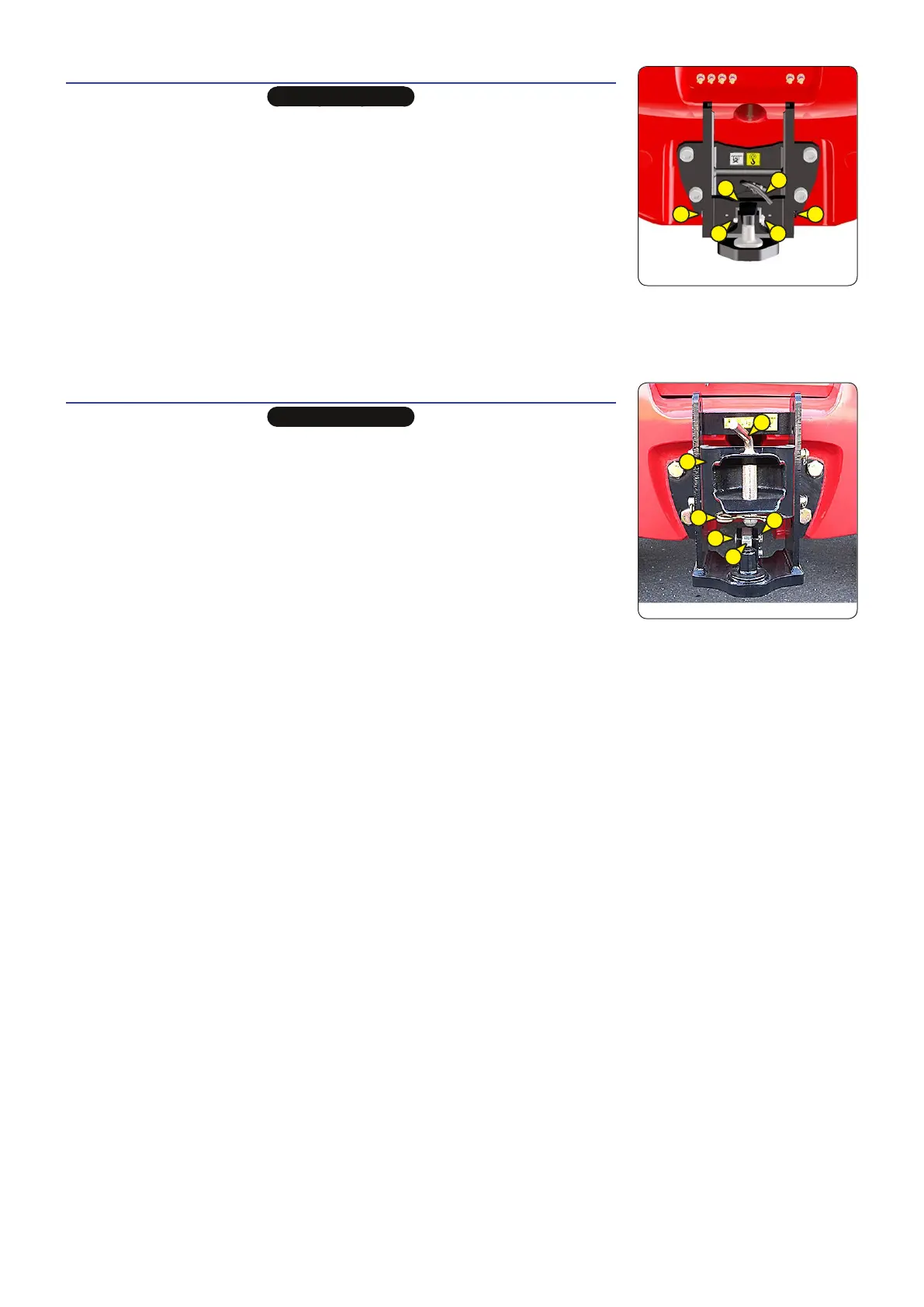

7 - FIXED PIN ON COUPLING LADDER (OPTIONAL)
t
IMPORTANT
t
Pay attention to the risk of pinching or crushing during this operation.
When released, ensure that the trailer stands on its own.
- Position the lift truck as near as possible to the trailer ring.
ADUSTING THE TOWING HOOK
- Lift handle 1 and turn it upward to release pins 2 on each side of the ladder.
- Support the towing hook and position it according to the height of the towing ring.
- Turn handle 1 downward to insert pins 2 into the ladder and release the handle.
COUPLING AND UNCOUPLING THE TRAILER
- Remove pin 2 and withdraw pin 3.
- Lift stop 4.
- Position or remove the hook of the trailer on the fixed pin.
- Refit block 4, pin 3 and pin 2.
8 - FIXED TOWING HOOK + HOOK ON COUPLING LADDER (OPTIONAL)
t
IMPORTANT
t
Pay attention to the risk of pinching or crushing during this operation.
Do not forget to put pin back in place.
When released, ensure that the trailer stands on its own.
COUPLING AND UNCOUPLING THE TRAILER
- Position the lift truck as near as possible to the trailer ring.
- Apply the handbrake and switch off the engine.
ON THE FIXED PIN
- Remove pin 1, withdraw axis 2 and remove the stop 3.
- Position or remove the trailer ring, lower stop 3 and assemble axis 2.
ON THE COUPLING LADDER
- Adjust hook 4 according to the height of the trailer ring.
- Remove split pin 5, lift the towing pin 6 and position or remove the ring of the trailer.
