Reference Only

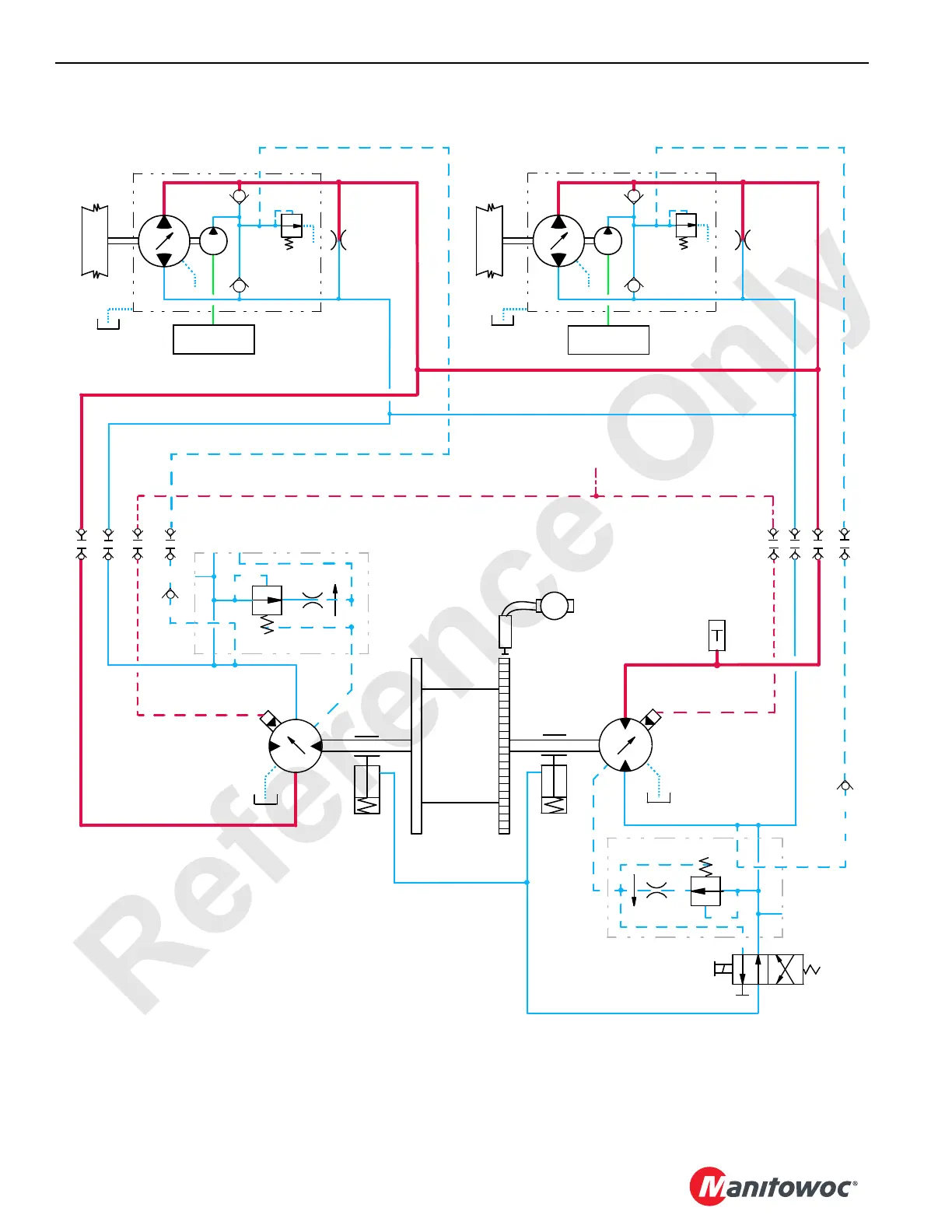

INTRODUCTION 18000 SERIVCE/MAINTENANCE MANUAL
1-40
Published 12-05-17, Control # 035-23
X
4 GPM
A
B
HS-6
DRUM
SUCTION
MANIFOLD
BOOM HOIST
DOWN
UP
340 PSI
(23 BAR)
B
A
PRESSURE
SENDER
X
X
A
B
SUCTION
MANIFOLD
DOWN
UP
340 PSI
(23 BAR)
B
A
(DRUM 4-2) PUMP
BOOM HOIST
(DRUM 4-1) PUMP
PILOT PRESSURE FROM LEFT
X
BRAKE
DRUM
BRAKE
PM
ELECTRIC
DRUM
PAWL
BOOM HOIST
DRUM 4
.060.060
TRAVEL CHARGE PUMP
MAKE-UP FLUID
MAKE-UP FLUID
EQUALIZING LINE
EQUALIZING LINE
(15 m/l)
OPENS AT
200 PSI (14 bar)
4 GPM
(15 m/l)
OPENS AT
200 PSI (14 bar)
FIGURE 1-27
18CSM1-125
