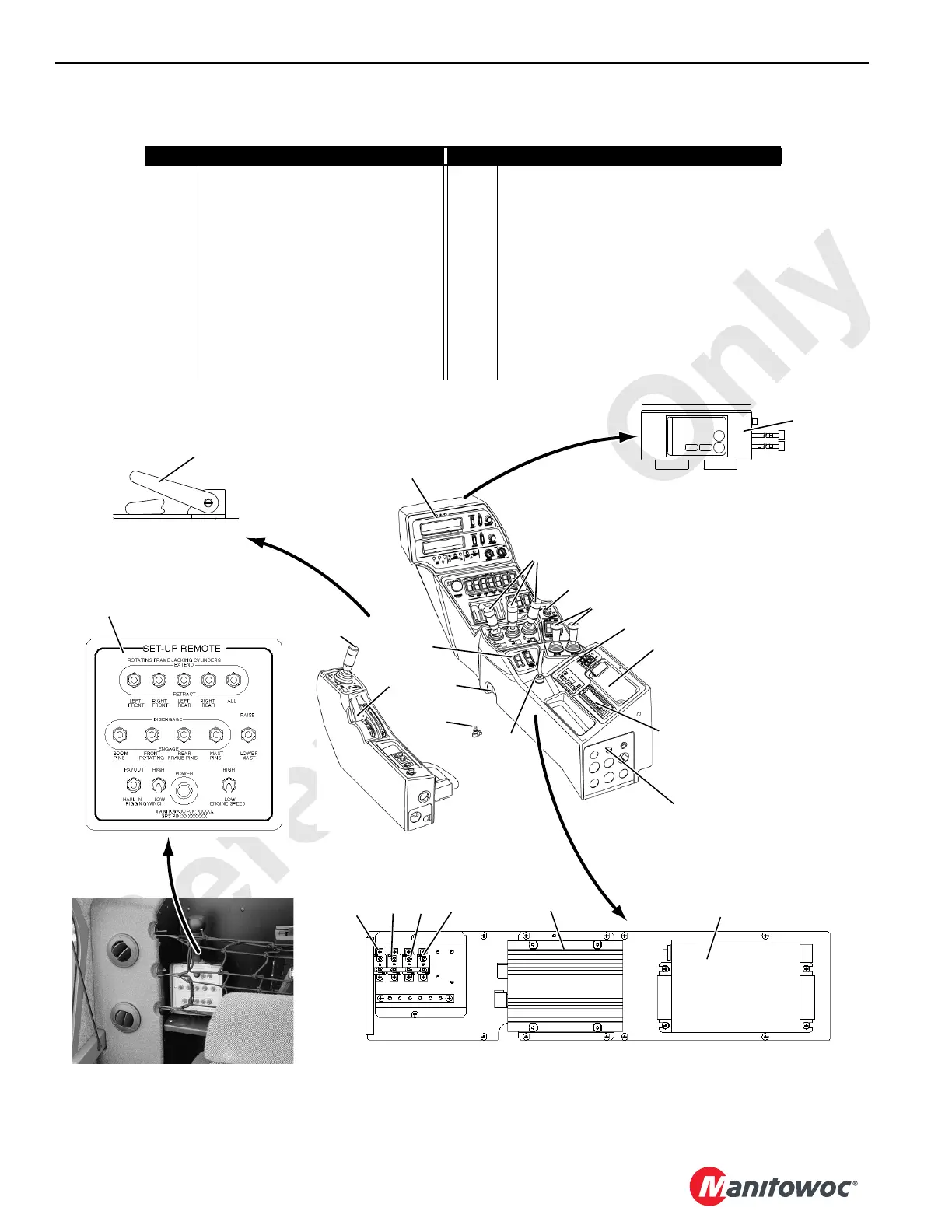

Operator Cab/Controls
Item Description Item Description
1 Engine Foot Throttle 13 Test Point Receptacle
2 Node-1 Master Controller 14 Horn/Travel Cruise Panel
3 Node-2 Side Console Controller 15 Main Console
4 Front Console (with RCL) 16 Boom or Luffing Jib Hoist Handle
5 Drum Handles 17 Engine Hand Throttle
6 Engine Start/Travel Controls Console 18 Hand-Held Radio Remote
7 Crawler Left and Right Handles 19 Circuit Breaker A8CB1 (24/12 Volt Converter)
8 Windshield Wiper Switches 20 Circuit Breaker A8CB2 (A/C Heater Power)
9 Customer Panel (Optional) 21 Circuit Breaker A8CB3 (Windshield Wipers)
10 Radio (Optional) 22 Circuit A8CB4 (Panel Lights)
11 12 Volt Power Receptacle (2) 23 24/12 Volts Converter
12 Foot Activated Horn
On Floor in
Front of Seat
1
Right Console In Operator’s Cab
Node 1 in Front Console
19
20
2
21
23
22
9
6
14
15
17
18
7
Computer Test Port
Behind Seat in Operator’s Cab
P1976
4
8
11
10
13
12
16
5
FIGURE 1-9
3
18CSM1-109a
18CSM1-107
18CSM1-110
18CSM1-108
18C SM 1-111
