Manitowoc 18000 Service Maintenance Manual

Reference Only
Manitowoc Published 12-05-17, Control # 035-23 1-13
18000 SERIVCE/MAINTENANCE MANUAL INTRODUCTION
1
P1987
1
3
2
4

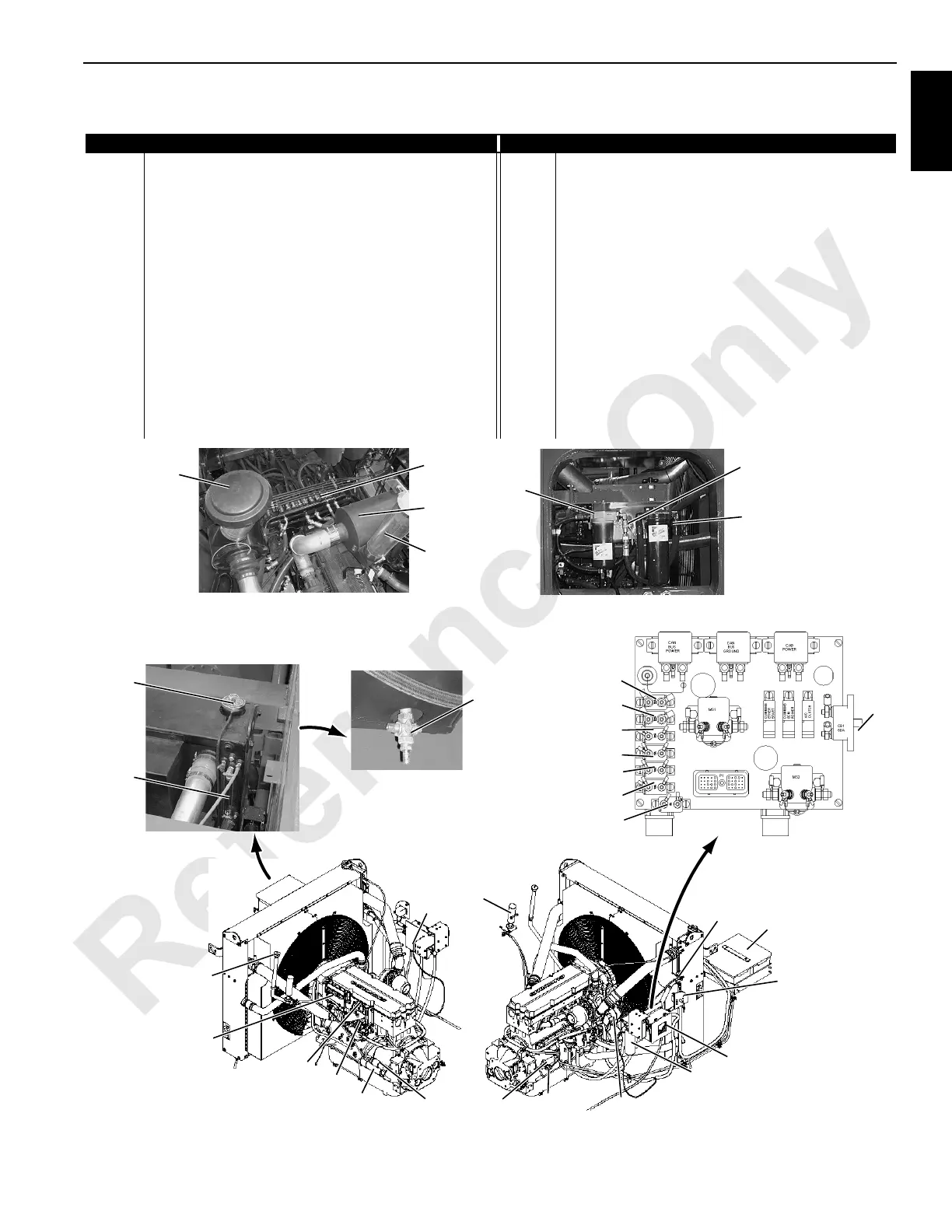

Top of Engine
Cummins Engine Tier 3
Item Description Item Description
1 Engine Air Cleaner 17 Engine Node-0 Controller
2 Pump Drive 18 Engine Water Filter
3 Engine Exhaust Stack 19 Engine Alternator
4 Engine Muffler 20 Engine Starter Motor (2)
5 Fuel Shut Off Valve 21 Engine Starter Solenoid (2)
6 Fuel Filter 22 Ether Starting Aid
7 Oil Filter 23 Coolant Level Sensor
8 Circuit Breaker CB1 (main system power) 24 Battery (2)
9 Circuit Breaker CB2 (Engine ECM) 25 Air Conditioning Low/High Pressure Switch
10 Circuit Breaker CB3 (Engine ECM) 26 Fuel Pump
11 Circuit Breaker CB4 (Engine Bus Run/Stop) 27 Fuel Shut Off
12 Circuit Breaker CB5 (Engine Ether Start) 28 ECM (Engine Control Module)
13 Circuit Breaker CB6 (Engine Start Solenoid) 29 Engine Oil Dipstick
14 Circuit Breaker CB7 (CAN System Power) 30 Radiator Fill
15 Circuit Breaker CB8 (Cab Power) 31 Radiator Coolant Sight Gauge
16 Battery Disconnect Switch 32 Radiator Drain
Left Side of Rotating Bed
P1986
7
12
11
10
9
15
8
P1914
Engine - Left Side
Engine - Right Side
22
29
20
24
21
16
21
25
20
23
17
Under Engine
P1908
31
30
32
5
28
27
19
6
FIGURE 1-10
13
14
26
18
18CSM1-112
18CSM1-113
