HOISTS 18000 SERIVCE/MAINTENANCE MANUAL
5-22
Published 12-05-17, Control # 035-23
LOAD BLOCK AND HOOK-AND-WEIGHT
BALL INSPECTION
Daily Inspection
The operating condition of the load block and the hook-and-
weight ball can change daily with use, and so they must be
inspected daily (at start of each shift). During operation,
observe for any defects which could affect their safe
operation. Correct all defects before using the load block or
the hook-and-weight ball.
Daily inspection and maintenance will include the following
points (see Figure 5-20
and Figure 5-21):
WARNING
Falling Load Hazard
To prevent the load from dropping due to structural failure
of load block or hook-and-weight ball:
• Only use a load block or a hook-and-weight ball
which has a capacity equal to or greater than the load
to be handled.
• Do not remove or deface the nameplate (Figure 5-19
)
that is attached to the load blocks and hook-and-
weight balls.
• See Section 4 of the Operator Manual for
recommended sling angles and capacity restrictions
when the load block has a duplex or a quadruplex
hook.
Item Description
1 Working Load Limit (ton (US and metric)
2 Wire Rope Diameter (in and mm)
3 Block Weight (lb and kg)
4 Block Serial Number
5 Block Part Number (OEM and Manitowoc)
6 Design Factor

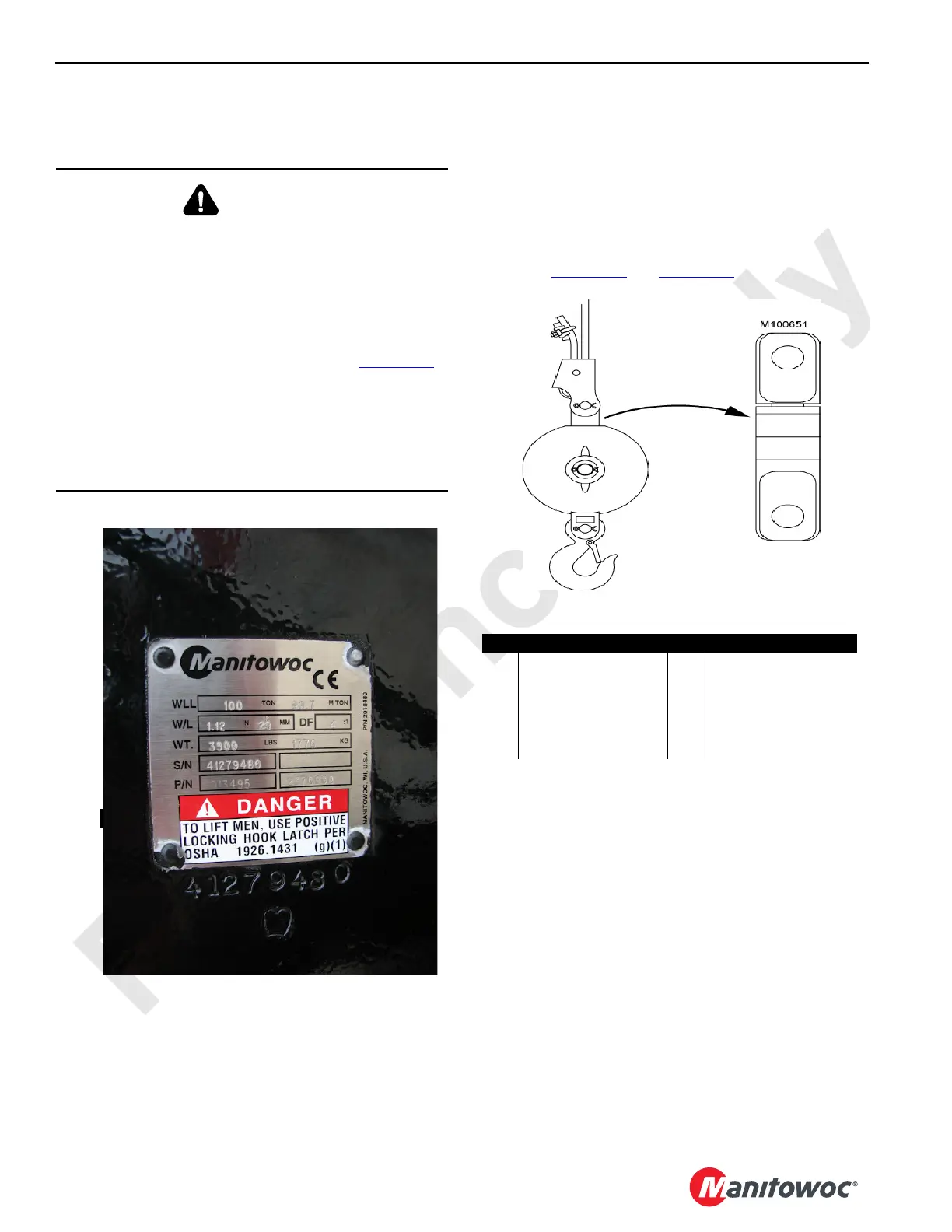

FIGURE 5-19
Item Description Item Description
1 Dead-End Clip 4c Check Gap Here
2 Socket and Wedge 5 Bolt or Pin
3 Bolt or Pin 6 Weight Ball
4 Swivel 7 Bolt or Pin
4a Swivel Shank 8 Hook
4b Swivel Barrel 9 Latch
FIGURE 5-20
