Manitowoc Published 12-05-17, Control # 035-23 1-7
18000 SERIVCE/MAINTENANCE MANUAL INTRODUCTION
1
Left Side
Item Description Item Description Item Description
1 Mast Pins Solenoid Valves 14 Node-3 Controller 27* Boom Hoist A Pump (Drum 4)
2 Front Adapter Frame Pins Solenoid Val. 15 Node-4 Controller 28* Swing Pump (Optional)
3 Rear Adapter Frame Pins Solenoid Val. 16* Supercharge/Accessory Pump 29* Supercharge Pump
4 Cab Tilt Solenoid Valves 17* Boom Hoist B Pump (Drum 4) 30 Accessory System Pressure Sender
5 Boom Hinge Pins Solenoid Valves 18* Pump Drive 31 Not Used
6 Air Cleaner Service Indicator 19* Main Hoist Pump (Drums 1 and 3) 32 Load Drums 2 and 5 Pressure Sender
7 Left Front Jack Solenoid Valves 20* Main Hoist Pump (Drum 2) 33 Left Travel Pressure Sender
8 Left Rear Jack Solenoid Valves 21* Swing Pump 34 Right Travel Pressure Sender
9 Right Rear Jack Solenoid Valves 22* Left Travel Pump 35 Load Drums 1 and 3 Pressure Sender
10 Right Front Jack Solenoid Valves 23* Luffing Jib Hoist Pump (Drum 6) 36 Boom Hoist Pressure Sender
11 Live Mast Solenoid Valves 24* Right Travel Pump 37 Luffing Jib Hoist Pressure Sender
12 Rigging Winch Solenoid Valves 25* Main Hoist Pump (Drums 2 and 5) 38 High Pressure Accessory Pressure
Sender
13* Engine Node-0 Controller (Past
Production)
26* Main Hoist Pump (Drum 1)
*Cranes prior to s/n 18001082
P1998
P1929b
7
P1993
P1992
P1986
15
Under Engine
2
3
1
4
5
8
9
12
10
11
14
19
20
16
28
29
2625
24
27
23
22
17
18
36
37
30
34
33
35
32
31
6
13*
Behind Bracket
21
38

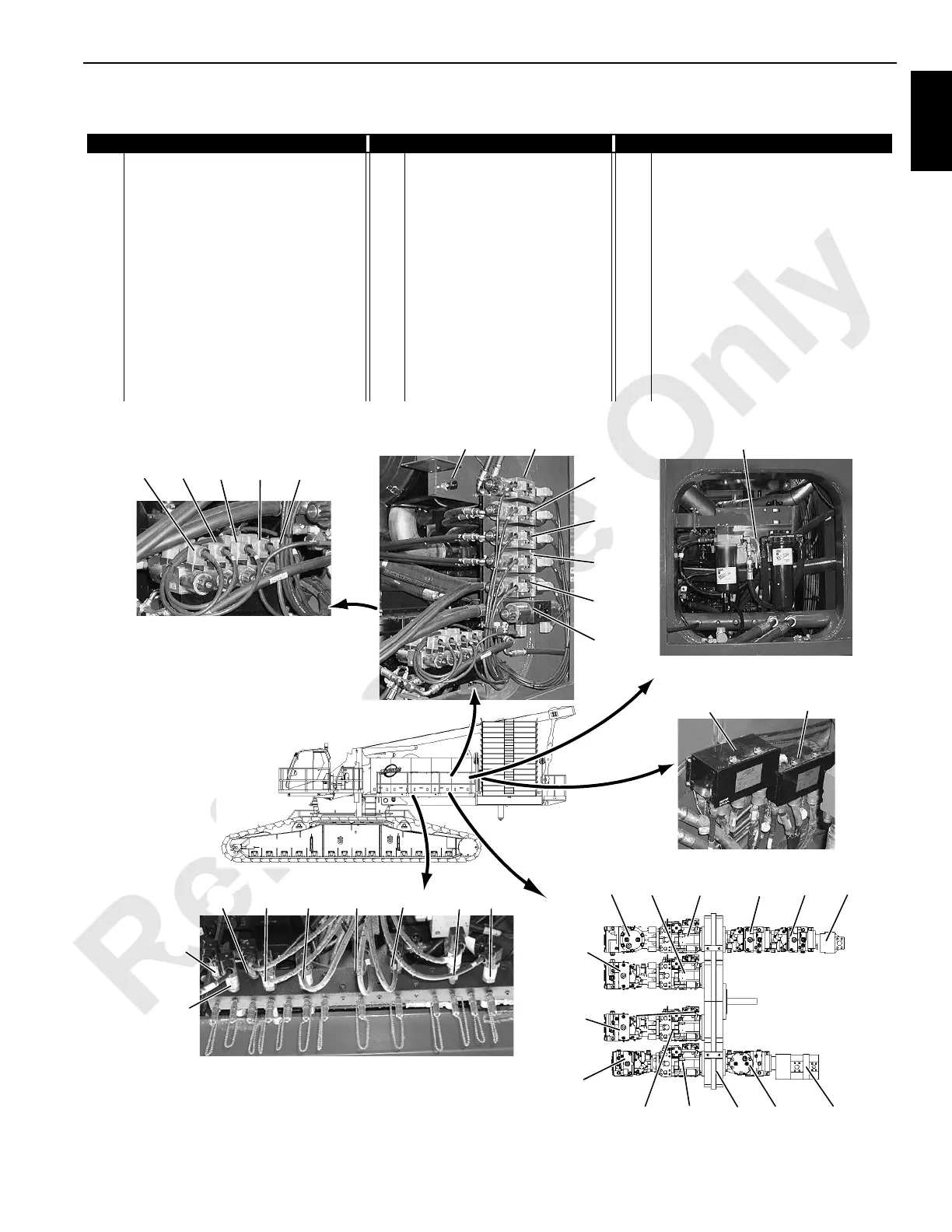

FIGURE 1-4
18CSM1-104
18CSM1-105
Prior to s/n 18001082
Prior to s/n 18001082
