18000 SERIVCE/MAINTENANCE MANUAL INTRODUCTION
1
module controls and process engine information and display
the information on digital display.
Crane systems speed depends on engine speed and control
handle movement in either direction from neutral. Engine
clutch lever for pump drive must be manually engaged for
normal operation.
The engine stop push button stops the engine in an
emergency only as all brakes apply and any functions stop
abruptly.
Three engine diagnostic lights are mounted on front console,
see Engine Diagnostics in Section 10 of the Service/
Maintenance Manual for diagnostic light information.
Drum Identification

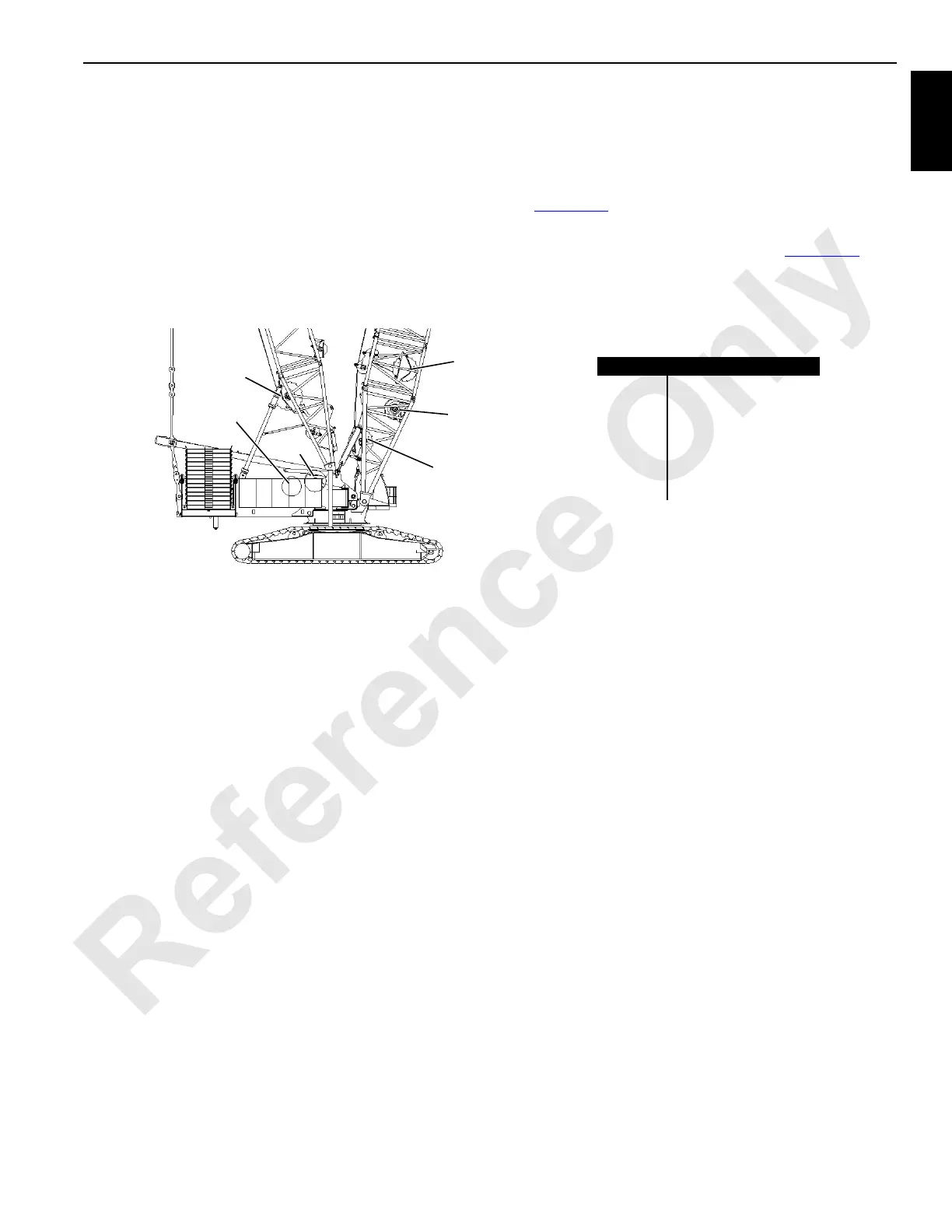

See Figure 1-19 for the following procedure.
Seven wire rope drum drives are on the Model 18000 crane.
The location and nomenclature is shown in Figure 1-19
.
Item Description
1 Main Hoist 1
2 Main Hoist 2
3 Whip Line Hoist
4Boom Hoist
5Mast Hoist
6 Luffing Jib Hoist
7 Rigging Winch
In Boom
Insert
FIGURE 1-19
1
2
3
4
5
6
7
18CSM1-114
