OPERATING PROCEDURES GRT655/655L OPERATOR MANUAL
4-102 Published 3-23-2020, Control # 654-04

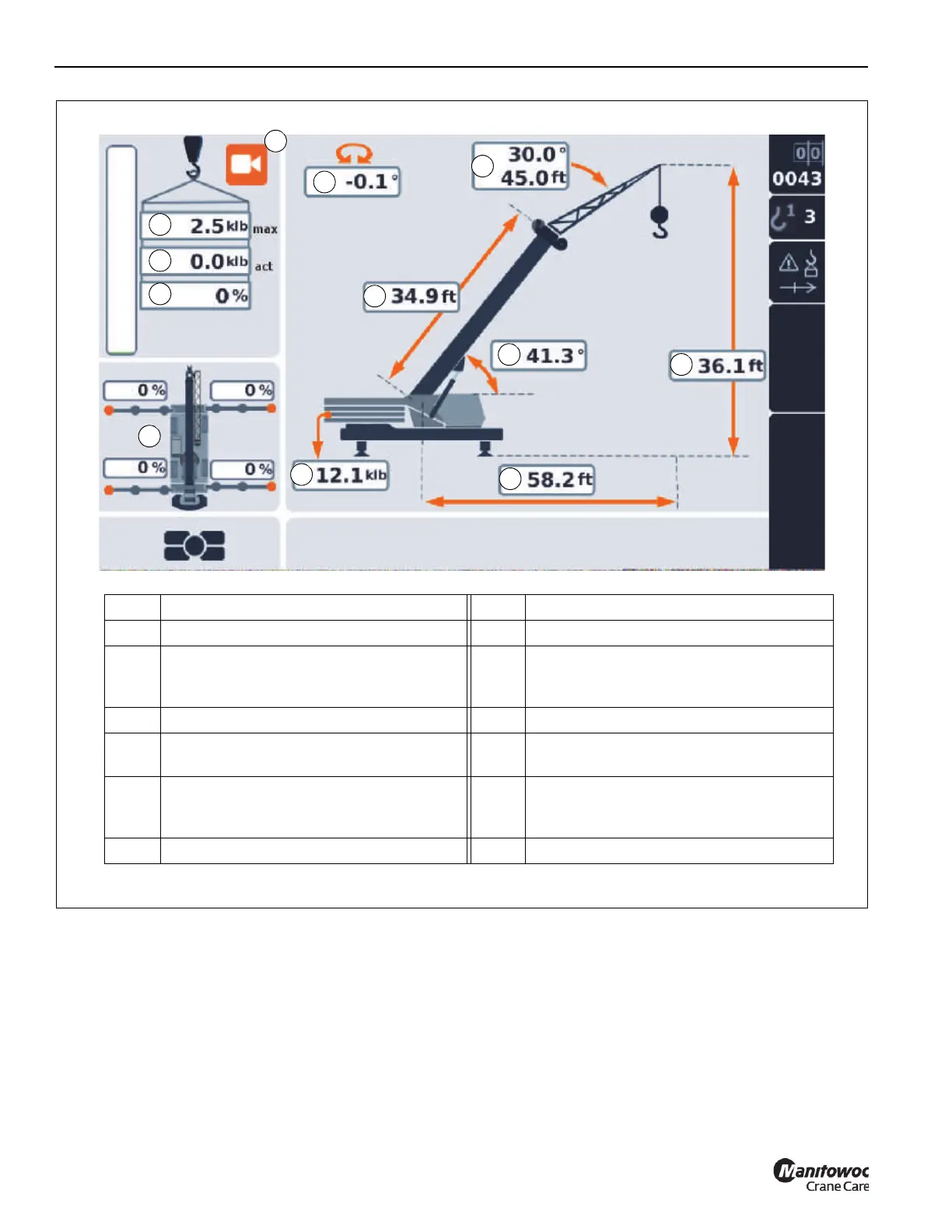

FIGURE 4-84
1
3
5
6
10
9
8
7
2
4
12
11
Item Description Item Description
1 Backup Camera View On/Off Toggle icon 7 Boom Extension Offset and Length
2
Maximum Capacity
(for the Current Crane Configuration/Load
Chart Code Number)
8 Boom Length
3 Actual Load 9 Boom Angle
4
Actual Load as a Percentage of Maximum
Capacity
10 Boom Tip Height
5
Outrigger Position as a Percentage
(Fully Retracted = 0%, Mid-Extend = 50%,
Fully Extended = 100%)
11 Counterweight
6 Swing Angle 12 Load Radius
9219
