Manitowoc MLC300 Service And Maintenance Manual

Reference Only
Manitowoc Published 11-22-17, Control # 257-02 5-35
MLC300 SERVICE/MAINTENANCE MANUAL HOISTS
5

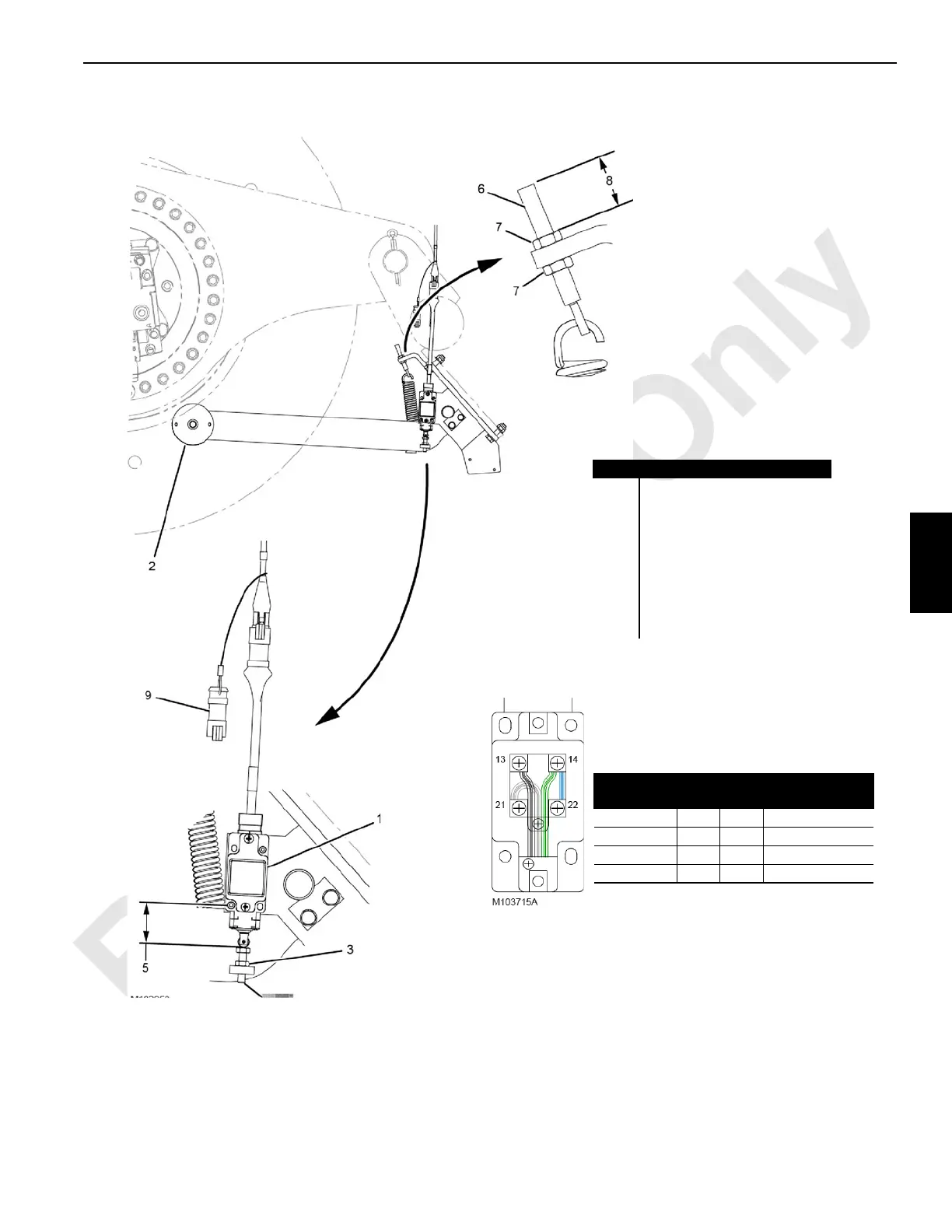

Item Description
1 Limit Switch
2Rollers
3Jam Nut
4Bolt
5 Dimension: 44 mm (1.7 in)
6 Eyebolt (qty 3)
7 Jam Nut (qty 6)
8 Dimension: 35 mm (1.4 in)
9 Shorting Plug
Limit Switch Wiring
Wire Color
Switch
Terminals
Function
Black 13 Normally Open
Green 14 Input
White 21 Normally Closed
Blue 14 22 Jumper
FIGURE 5-18
