HYDRAULIC SYSTEM MLC300 SERVICE/MAINTENANCE MANUAL

2-10

Published 11-22-17, Control # 257-02

Travel Motors

The travel motors (Figure 2-10) are bidirectional, variable-

displacement motors. Motor displacements are controlled by

electronic motor controllers.

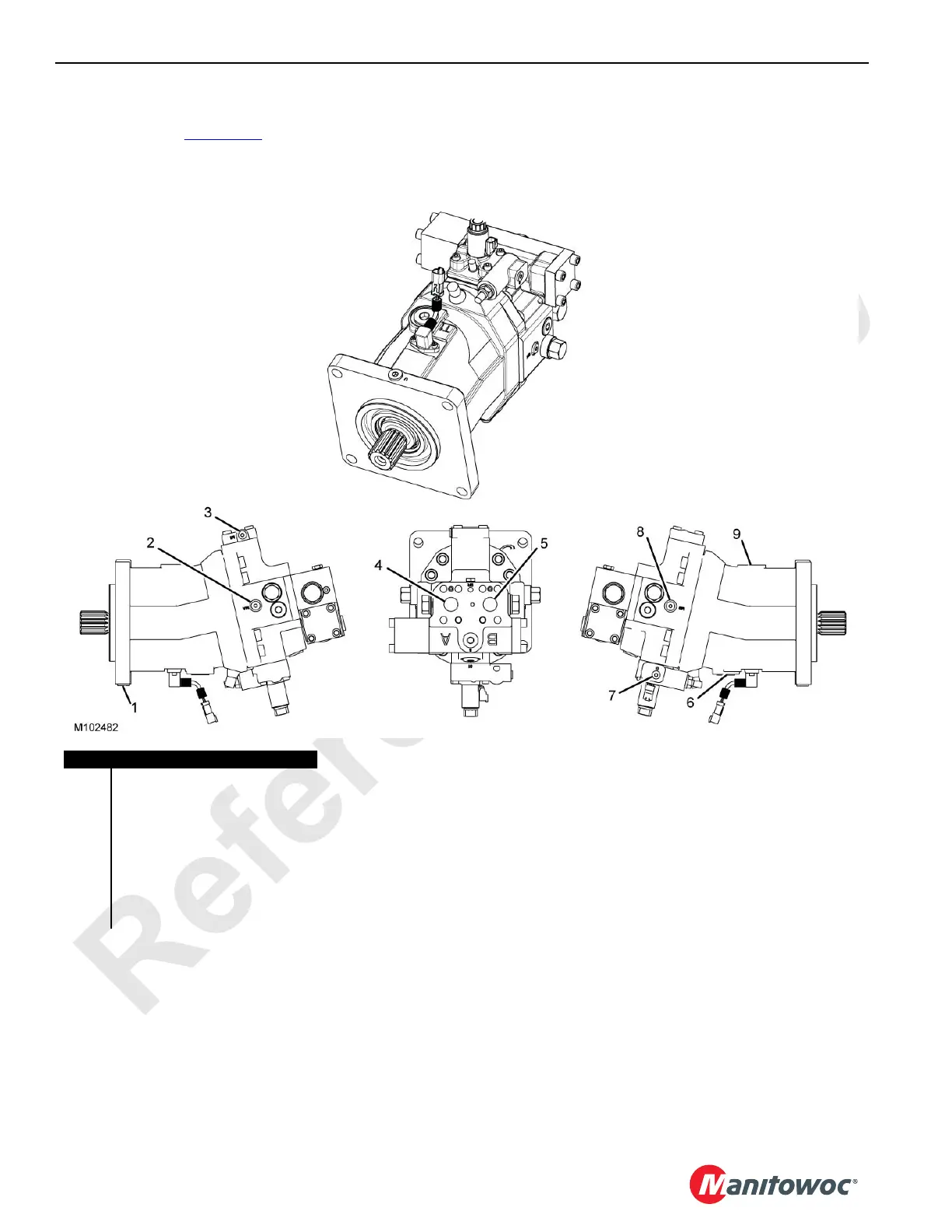

FIGURE 2-10

Item Description

1 Bearing Flushing U

2 Measuring Pressure MA

3 Measuring Stroking Chamber M1

4 System Pressure A

5 System Pressure B

6 Tank T1

7 Synchronous Control G

8 Measuring Pressure MB

9 Tank T2
