MLC300 SERVICE/MAINTENANCE MANUAL HYDRAULIC SYSTEM
2
Pump 6
Pump 6 (Figure 2-5) is a 45cc, variable-displacement, axial
piston pump. It has a maximum operating pressure of
250 bar (3,600 PSI).
Item Description
1 Inlet Port S
2Outlet Port B
3 Case Drain L
4 Case Drain L1

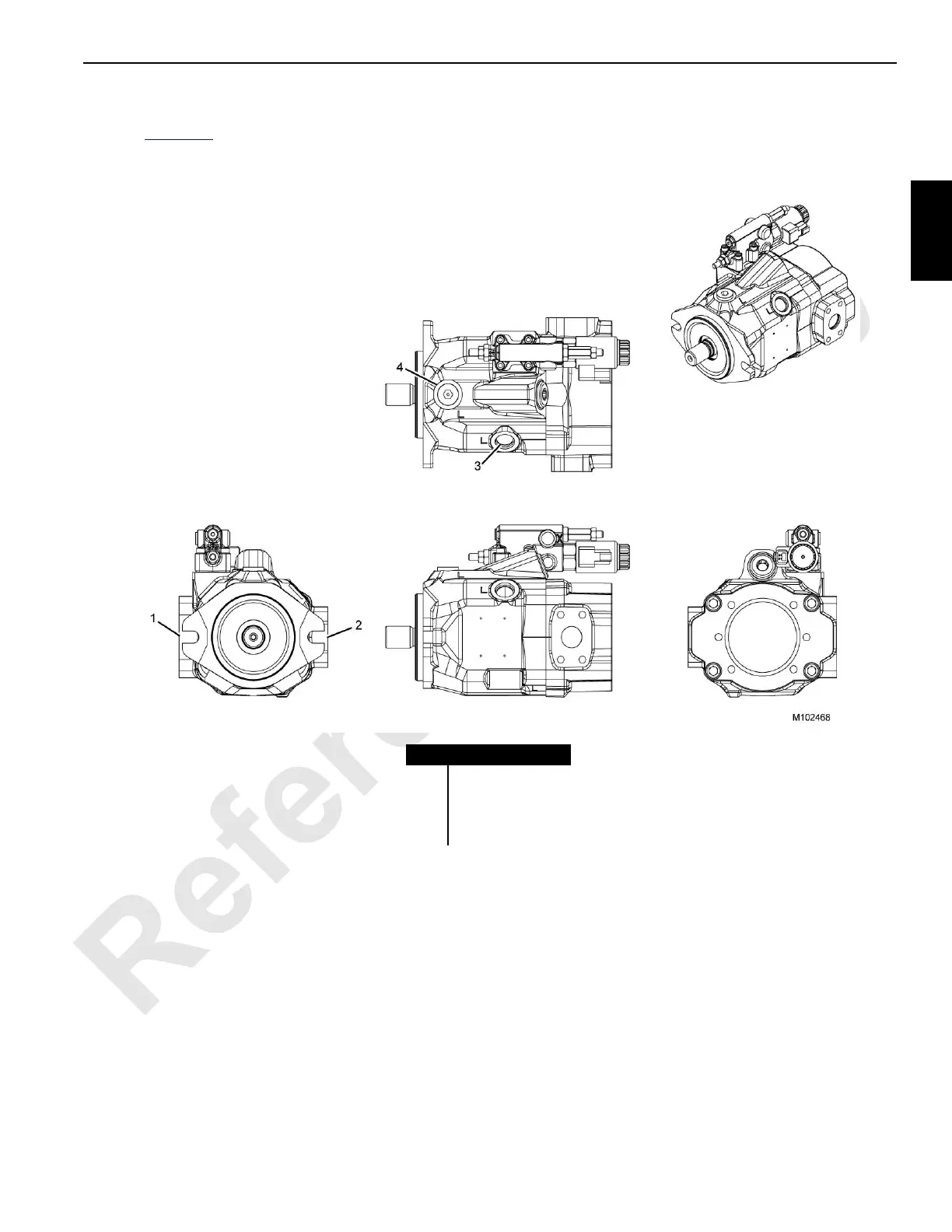

FIGURE 2-5
