Manitowoc Published 11-22-17, Control # 257-02 3-3
MLC300 SERVICE/MAINTENANCE MANUAL ELECTRICAL SYSTEM
3
Crane Electrical System Ground Points
General
The crane electrical system has several frame ground
connection (point) locations. They are located on the
following components:
• Cab right console
• Rotating bed
• Cab mount/arm
Cab Right Console Ground Points

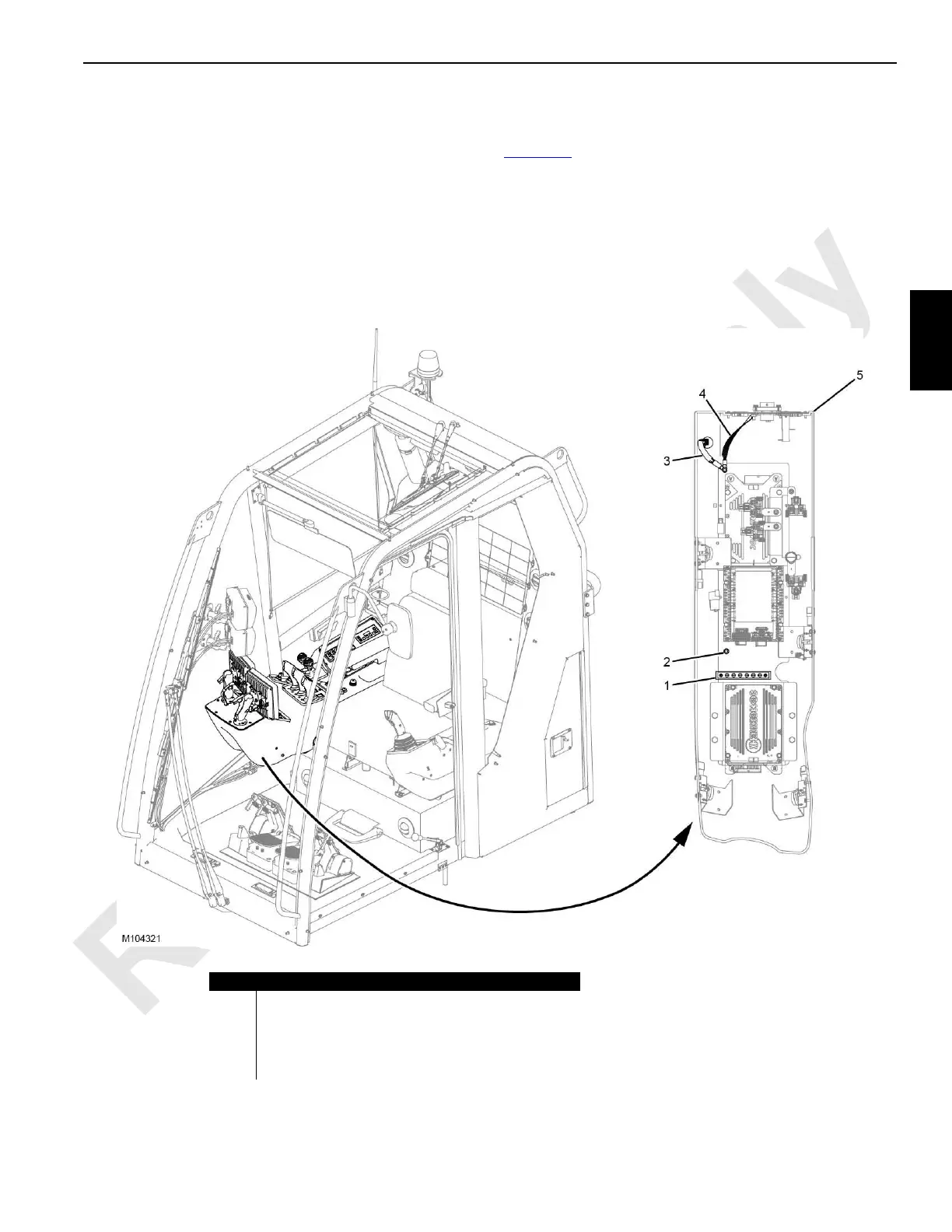

The cab ground points are at the following locations (see
Figure 3-1
):
The cab right console (5) contains the following point ground
locations:
• Right console ground bus bar (1)
• Right console chassis ground stud (2)
• Right console chassis-to-cab ground strap (3)
• Right console chassis-to-rear panel ground strap (4)
Item Description
1 Right Console Ground Bus Bar
2 Right Console Chassis Ground Stud
3 Right Console Chassis-to-Cab Ground Strap
4 Right Console Chassis-to-Rear Panel Ground Strap
5 Cab Right Console
Right Console
(Inside View)
FIGURE 3-1
