HYDRAULIC SYSTEM MLC300 SERVICE/MAINTENANCE MANUAL
2-34
Published 11-22-17, Control # 257-02
ACCUMULATOR MAINTENANCE

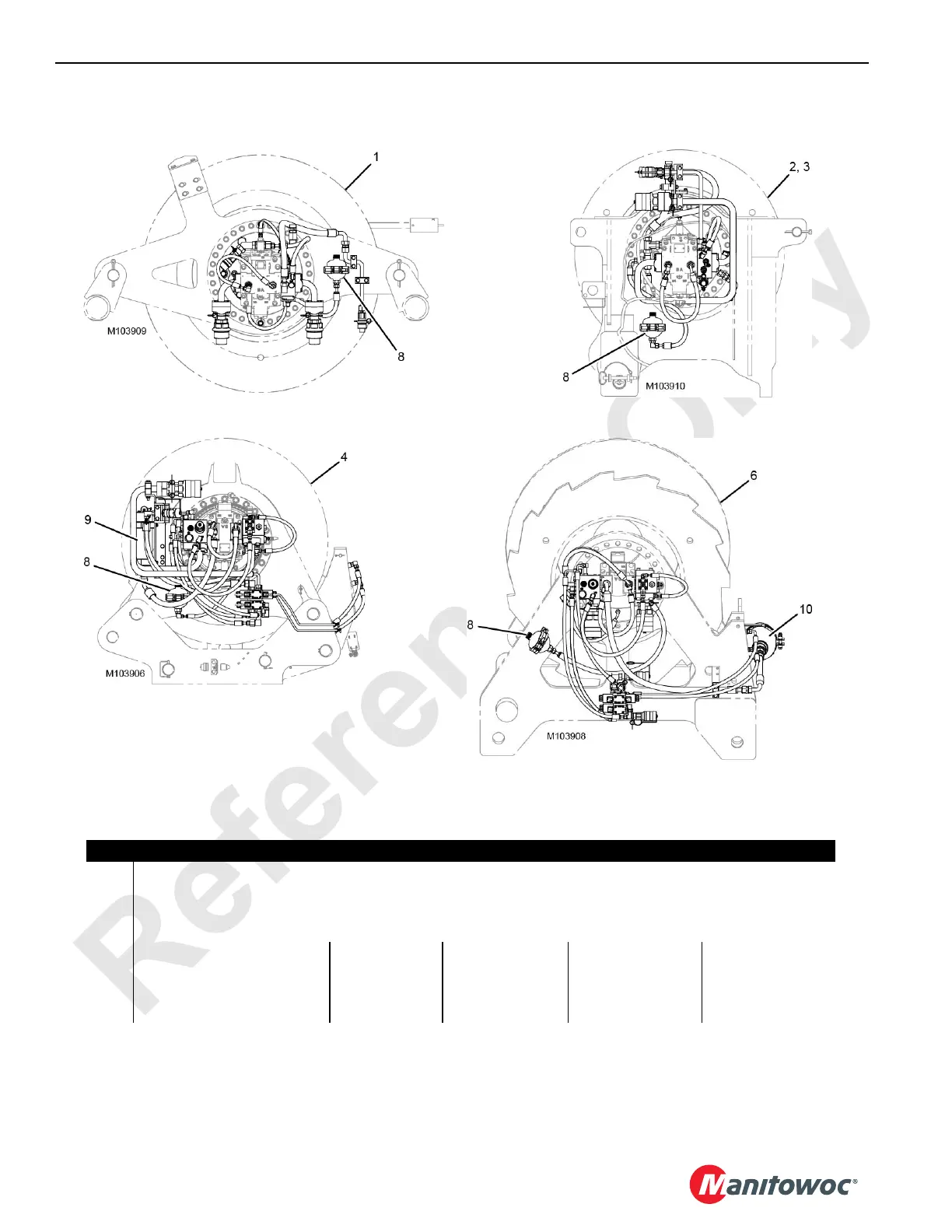

FIGURE 2-27
Item Description
1 Drum 1 (in boom butt)
2, 3 Drum 2 and 3 (in rotating bed)
4 Drum 4 (in rotating bed)
6 Drum 6 (in boom butt)
Item Description Size Pre-Charge Max Pressure Purpose
8 Accumulator: Diaphragm Type 0,5 L (0.13 gal) 1,4 bar (20 psi) 160 bar (2,300 psi) Thermal Expansion
9 Accumulator: Piston Type 1,1 L (0.29 gal) 5,5 bar (80 psi) 207 bar (3,000 psi) Anti-Cavitation
10 Accumulator: Diaphragm Type 3,8 L (1 gal) 8,3 bar (120 psi) 207 bar (3,000 psi) Anti-Cavitation
