MLC300 SERVICE/MAINTENANCE MANUAL HYDRAULIC SYSTEM
2
Swing Motors

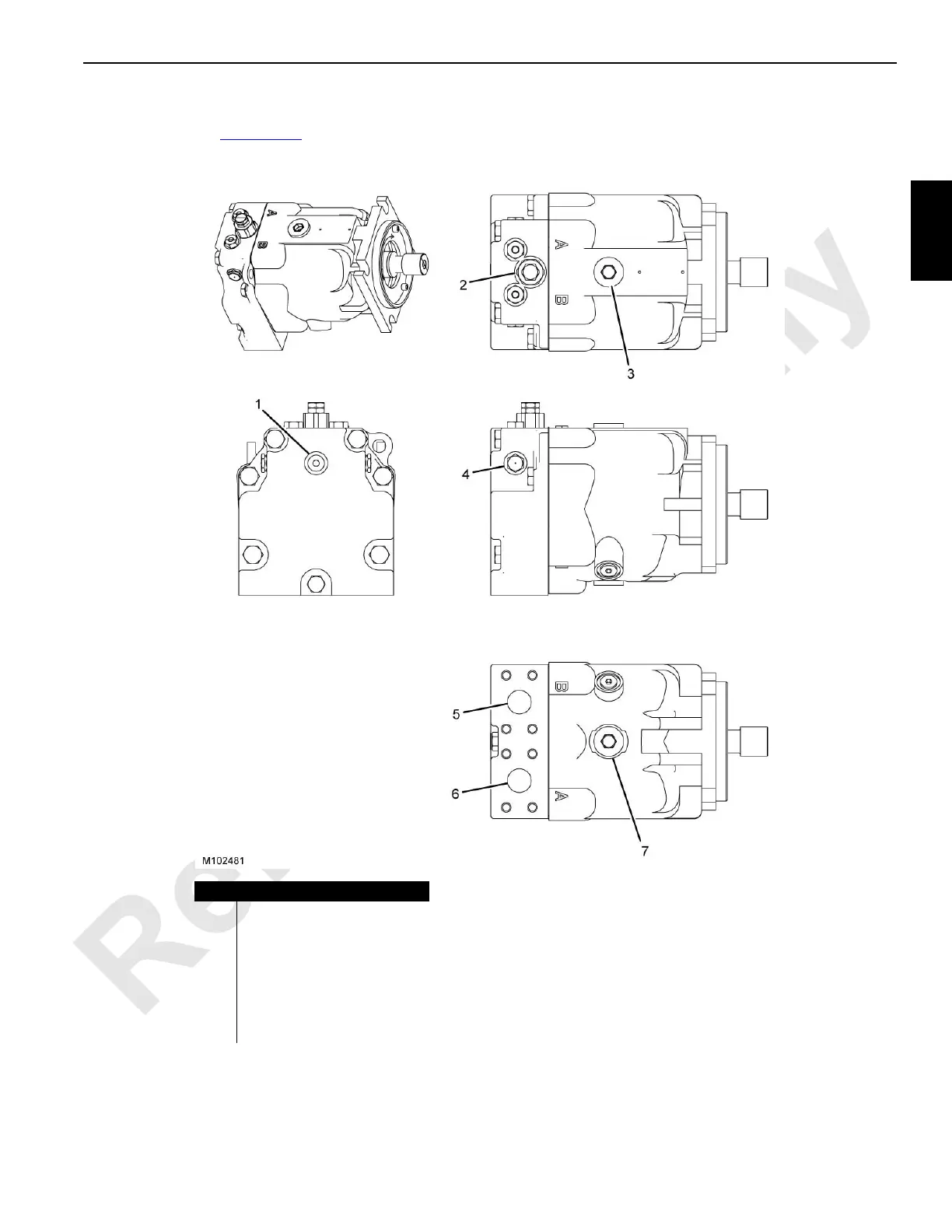

The swing motors (Figure 2-11) are bidirectional, fixed-
displacement motors.
Item Description
1 Charge Pressure Gauge Port
2 Loop Flush Relief Valve
3 Case Outlet
4 Loop Flushing Shuttle Valve
5System Port B
6System Port A
7 Case Outlet
FIGURE 2-11
