HYDRAULIC SYSTEM MLC300 SERVICE/MAINTENANCE MANUAL
2-20
Published 11-22-17, Control # 257-02
Replacing the Desiccant Breather Cartridge
See Figure 2-16 for the following.
1. Replace the breather cartridge when the gold desiccant
beads turn dark green.
2. Vent the hydraulic tank (4) using either of the vent
valves (see Figure 2-15
).
3. Take precautions to prevent being burned by hot oil.
4. Unscrew the breather cartridge (2) from the adapter
fitting (3).
5. Unscrew the reusable cap (1) from the breather
cartridge and dispose of the used breather cartridge
according to local environmental regulations.
6. Do not discard the cap.
7. Remove the protective caps from the top and bottom of
the new cartridge.
8. Securely attach the reusable cap to the breather
cartridge. Tighten the cap by hand only.
9. Securely attach the breather cartridge to the adapter
fitting. Tighten the cartridge by hand only.
Replacing Hydraulic Filters
WARNING
Burn Hazard!
The oil in the hydraulic tank may be under pressure and
extremely hot. Hot oil can escape when servicing
components.
• Allow the hydraulic system to cool before replacing
the breather or the hydraulic filters.
• Before opening the tank, relieve any pressure from
the tank using either vent valve (see Figure 2-15
).
Item Description

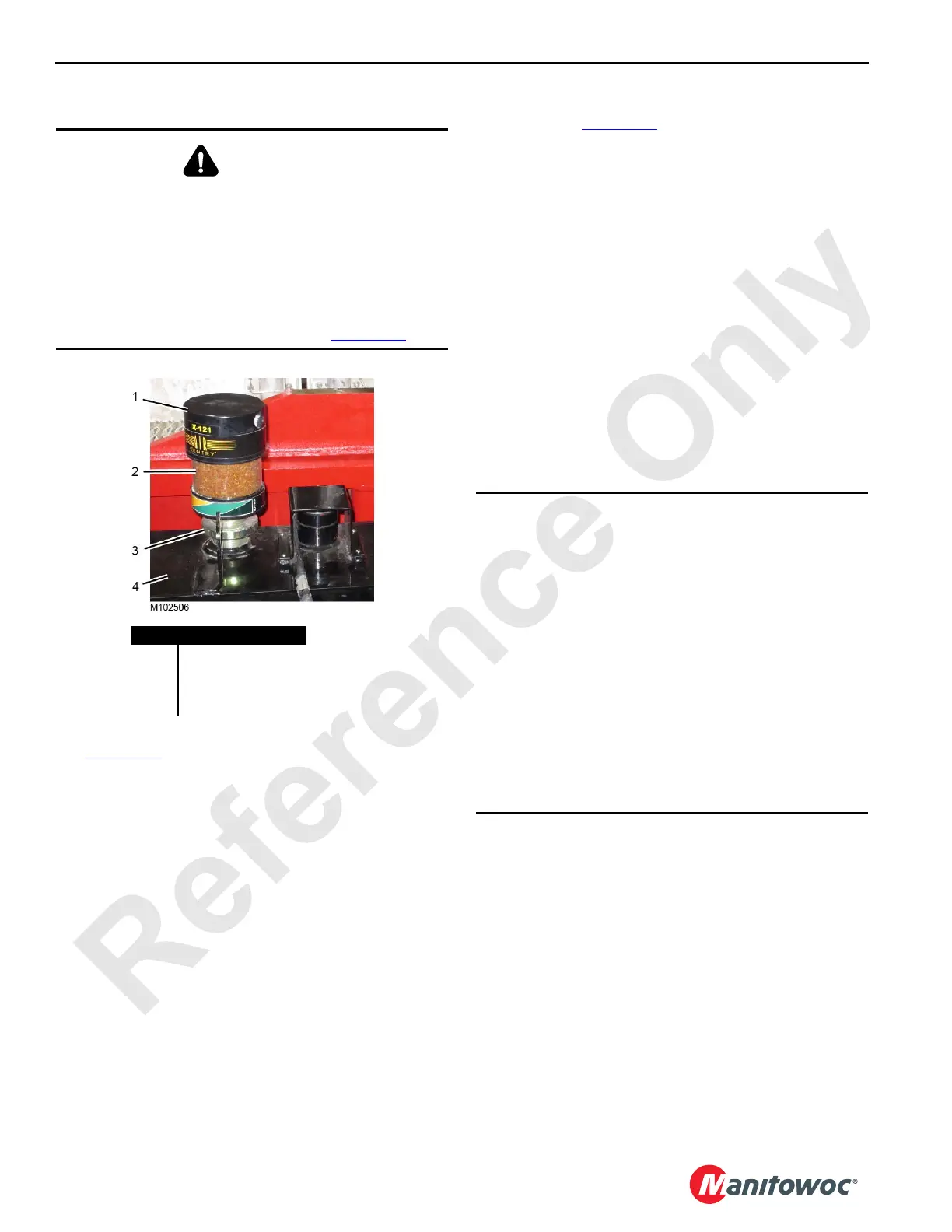

1 Reusable Cap
2 Breather Cartridge
3 Adapter Fitting
4Hydraulic Tank
FIGURE 2-16
CAUTION
Avoid Hydraulic System Damage!
Original Equipment Manufacturers’ filter elements,
available from the Manitowoc Crane Care Lattice Team,
must be used on this crane. Substituting with any other
brand or type of filter element is not allowed.
Non-OEM filter elements may collapse under pressure.
This will allow unfiltered oil to be drawn into the hydraulic
system. Pumps, motors, and valves can be destroyed.
Manitowoc Cranes will reject warranty claims for
damaged hydraulic components if proper hydraulic filter
elements are not used.
• Do not attempt to clean or reuse elements.
• Do not operate the crane without filter elements
installed.
