INTRODUCTION MLC300 SERVICE/MAINTENANCE MANUAL
1-8
Published 11-22-17, Control # 257-02
Solenoid Valve Identification
Each hydraulic valve solenoid is assigned a solenoid number
used in Manitowoc Cranes training classes (see Table 1-1
).
The pin number corresponds to the control module
connector pin number, as represented in the electrical
schematics.

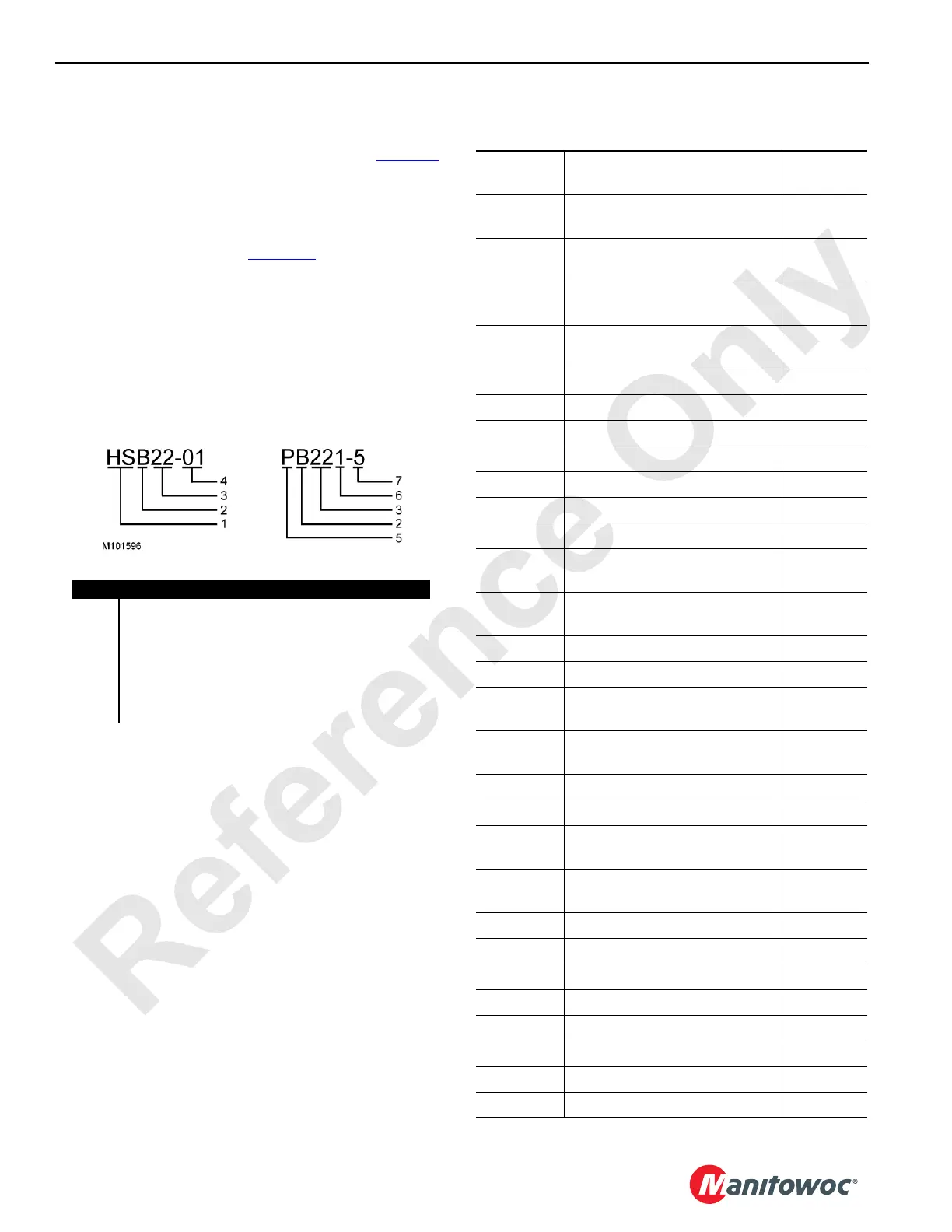

The control module information contained in each solenoid
or pin number is illustrated in Figure 1-3
. In this example, for
the right rear carbody jack raise solenoid, the following
information is contained:
• Control module resides on CAN Bus B
• Control module index is 22
• Control module digital output is ODH3A-01
• Control module output signal is at pin 5 of connector
KS-1
Table 1-1. Hydraulic Solenoid Identification
FIGURE 1-3
Item Description
1 Hydraulic Solenoid Reference Designator
2 CAN Bus (- = controller resides on multiple buses)
3 Control Module Index
4 Digital Output Number
5 Connector Reference Designator
6 Connector Number (1 = KS1, 2 = KS2)
7 Pin Number
Solenoid
Number
Description
Pin
Number
HSB11-04
Left Crawler/Carbody Pin
Puller Extend
PB112-22
HSB11-05
Left Crawler/Carbody Pin
Puller Retract
PB112-5
HSB11-06
Right Crawler/Carbody Pin
Puller Extend
PB112-15
HSB11-07
Right Crawler/Carbody Pin
Puller Retract
PB112-14
HSB11-08 Travel Brake Release PB112-4
HSB11-11 Left Crawler Tension Retract PB112-24
HSB11-12 Left Crawler Tension Extend PB112-25
HSB11-13 Right Crawler Tension Retract PB112-6
HSB11-14 Right Crawler Tension Extend PB112-16
HSB11-23 Left Front Carbody Jack Raise PB111-1
HSB11-24 Left Front Carbody Jack Lower PB112-12
HSB11-25
Right Front Carbody Jack
Raise
PB111-15
HSB11-26
Right Front Carbody Jack
Lower
PB111-42
HSB11-27 Left Rear Carbody Jack Raise PB111-28
HSB11-28 Left Rear Carbody Jack Lower PB111-2
HSB22-01
Right Rear Carbody Jack
Raise
PB221-5
HSB22-02
Right Rear Carbody Jack
Lower
PB221-6
HSC11-05 Drum 2 Left Brake Release PC112-5
HSC11-07 Drum 3 Park Brake Release PC112-14
HSC11-11
Drum 0 (Rigging Winch)
Spool In
PC112-24
HSC11-12
Drum 0 (Rigging Winch)
Spool Out
PC112-25
HSC11-13 Swing Brake Release PC112-6
HSC11-14 Drum 1/Drum 3 Diverter PC112-16
HSC12-06 Not Used PC122-15
HSC12-07 Not Used PC122-14
HSC12-11 Not Used PC122-24
HSC12-12 Not Used PC122-25
HSC12-13 Not Used PC122-6
HSC13-13 Not Used PC132-6
