MLC300 SERVICE/MAINTENANCE MANUAL UNDERCARRIAGE
8
TURNTABLE BEARING ALIGNMENT

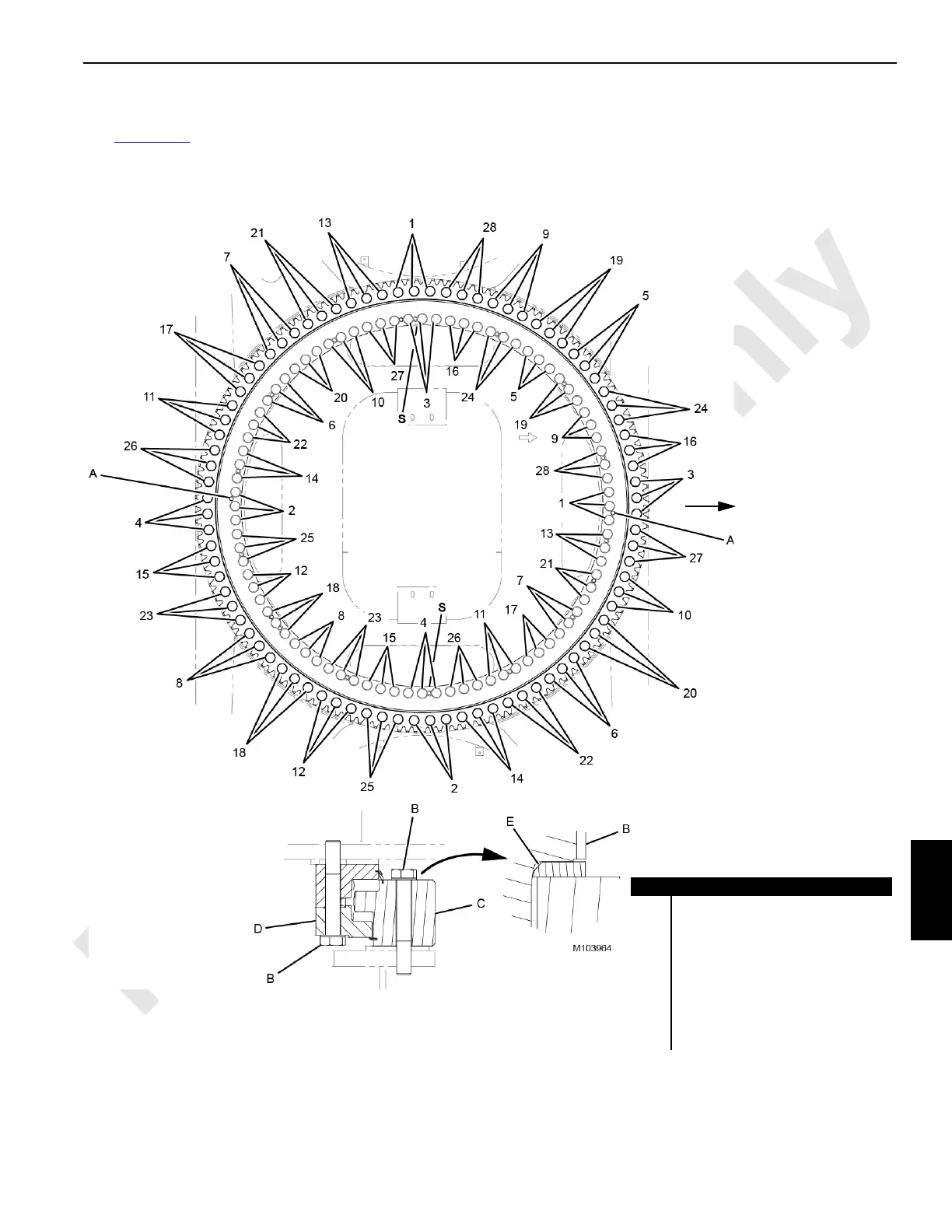

See Figure 8-10 for the following.
The outer ring (C) can be installed in any position with
relation to the carbody.
The S stamped in each side of the inner ring must be
centered on the left and right sides of the rotating bed.
Two dowel pins (A) are installed in the carbody to locate the
inner ring with the carbody.
FIGURE 8-10
Item Description
A Dowel Pin (2 places)
B 1-1/2 in—6 x 10 in Long Heavy Head
Special Grade Bolt with Special Flat
Washer
• 84 Places Outer Ring
• 84 Places Inner Ring
C Outer Ring
D Inner Ring
E Washer Chamfer
Front of Carbody
and Rotating Bed
View A
