MLC300 SERVICE/MAINTENANCE MANUAL UNDERCARRIAGE
8
CRAWLER GEARBOX OIL CHANGE
See Figure 8-11 for the following procedures.
Gear Oil Specifications
For gear oil specifications and the crawler gearbox capacity,
see the Lubrication Guide supplied with the crane.
Oil Analysis
An oil analysis program is the best way to determine the
optimum oil change interval and the condition of the crawler
gearboxes.
Periodic Maintenance
Initial Operation
Drain and refill both crawler gearboxes after the first 200
hours of operation.
Monthly or Every 200 Hours
Check the oil level in both crawler gearboxes every 200
hours of operation or monthly, whichever occurs first, by
performing the following.
1. Travel the crawlers until the plugs are positioned as
shown.
2. Lockout-tagout the crane.
3. Thoroughly clean the area around the plugs to prevent
dirt from entering the gearboxes.
4. Remove the fill plug (1) and the level plug (2) from the
gearbox.
5. The oil must be up to the bottom of the level plug
opening.
6. If necessary, add the specified oil to the gearbox with a
funnel through the fill plug opening.
7. Install the fill and level plugs.
8. Repeat the procedure for the other crawler gearbox.
Every 6 Months or 1,000 Hours
Drain and refill both crawler gearboxes every 1,000 hours of
operation or every 6 months, whichever occurs first, unless
an alternate interval has been established through an oil
analysis program.
Oil Change Procedure
Change the oil when the crawler gearboxes are warm.
1. Travel the crawlers until the plugs are positioned as
shown.
2. Lockout-tagout the crane.
3. Thoroughly clean the area around the plugs to prevent
dirt from entering the gearboxes.
4. Remove the fill plug (1) and the level plug (2) from the
gearbox.
5. Place an appropriate container under the drain plug (3)
to catch the oil.
6. Remove the drain plug.
7. Once the crawler gearbox is drained, securely install the
drain plug.
8. Fill the crawler gearbox with specified oil:
a. If not already done, remove the fill and level plugs.
b. Add the specified oil through the fill plug opening
with a funnel until the oil is up to the bottom of the
level plug opening.
c. Securely install the fill and level plugs.
9. Repeat the procedure for the other crawler gearbox.
10. Dispose of the drained oil according to local
environmental regulations.

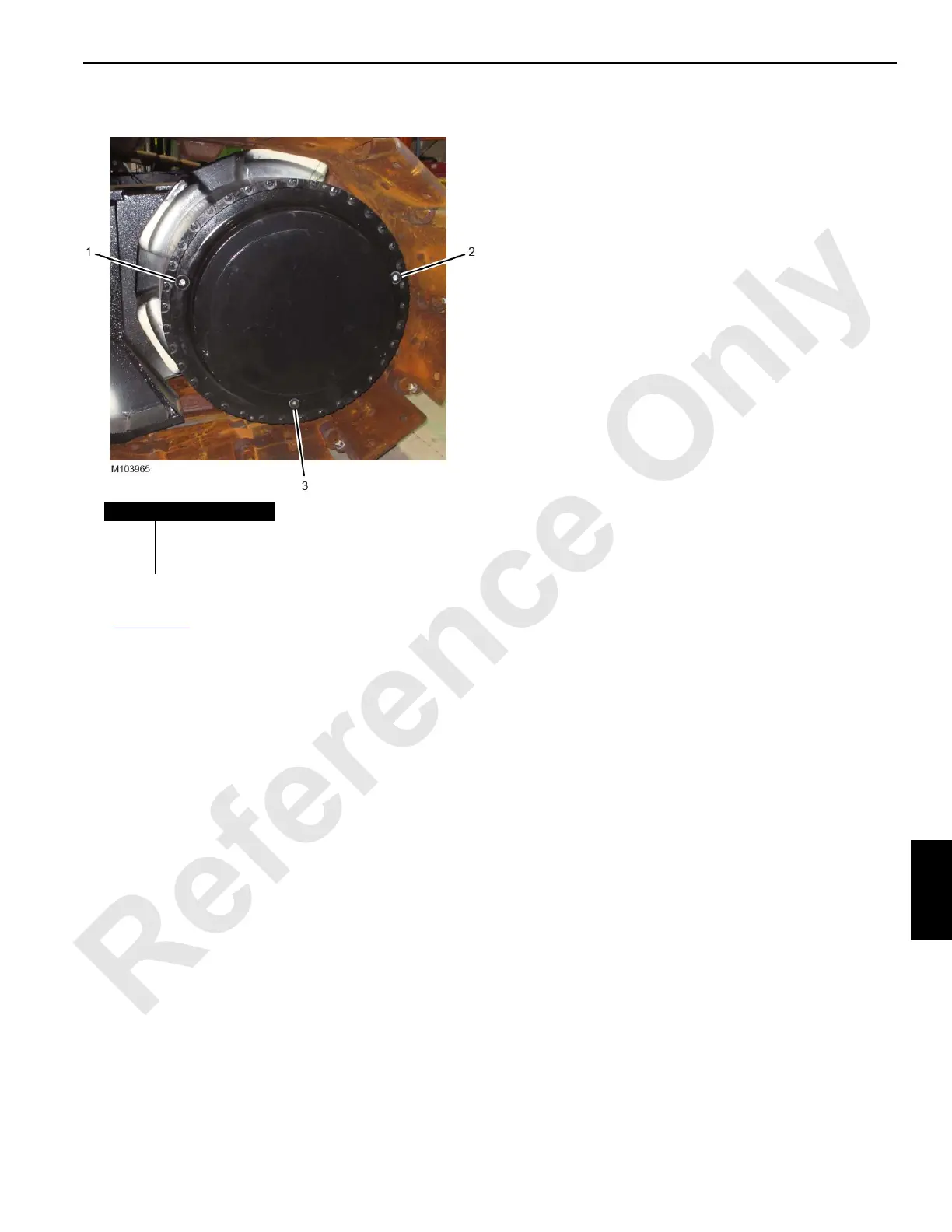

Item Description
1 Fill Plug
2 Level Plug
3Drain Plug
FIGURE 8-11
