Manitowoc MLC300 Service And Maintenance Manual

Reference Only
Manitowoc Published 11-22-17, Control # 257-02 2-13
MLC300 SERVICE/MAINTENANCE MANUAL HYDRAULIC SYSTEM
2
Carbody Hydraulic Valves

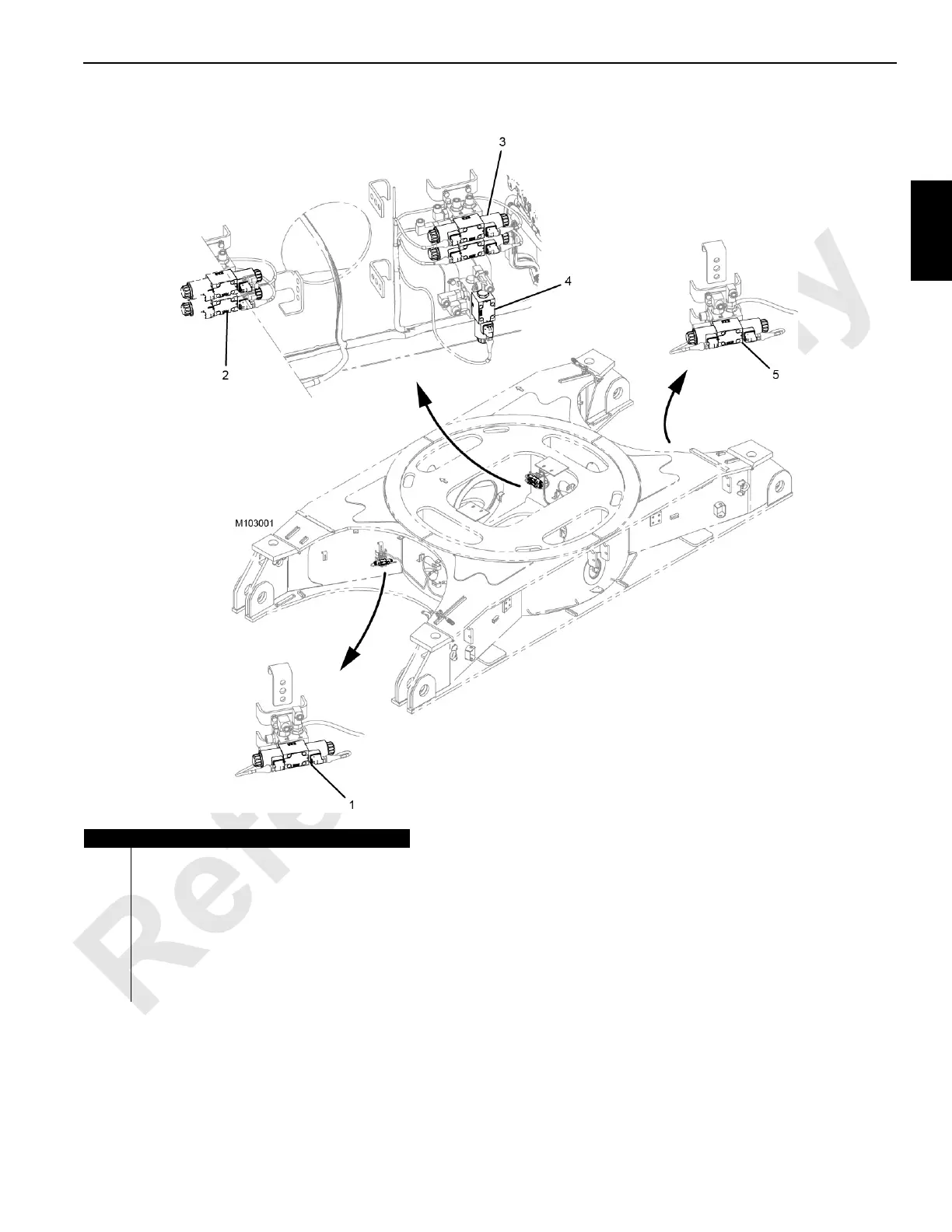

FIGURE 2-13
Item Description
1 Left Crawler Pin Puller Valve
2 Jacking Cylinder Valves (from top to bottom):
• Right Front Jack Raise/Lower Valve
• Left Front Jack Raise/Lower Valve
3 Jacking Cylinder Valves (from top to bottom):
• Left Rear Jack Raise/Lower Valve
• Right Rear Jack Raise/Lower Valve
4 Travel Brakes Valve
5 Right Crawler Pin Puller Valve
