POWER TRAIN MLC300 SERVICE/MAINTENANCE MANUAL
7-6
Published 11-22-17, Control # 257-02
ENGINE ENCLOSURE
The engine enclosure consists of cover panels that can be
removed to allow access for engine service.
WARNING
Personal Injury or Equipment Damage Hazard!
Personal injury can occur from contact with moving
engine components. Equipment damage can occur if all
components are not tightened securely.
Do not operate the crane without the cover panels in place
and all the fasteners secure.
WARNING
Personal Injury Hazard—Heavy Objects!
Engine cover panel weights are listed in the table for
Figure 7-5
.
To prevent serious injury, use the appropriate lifting
equipment when lifting or removing these objects.

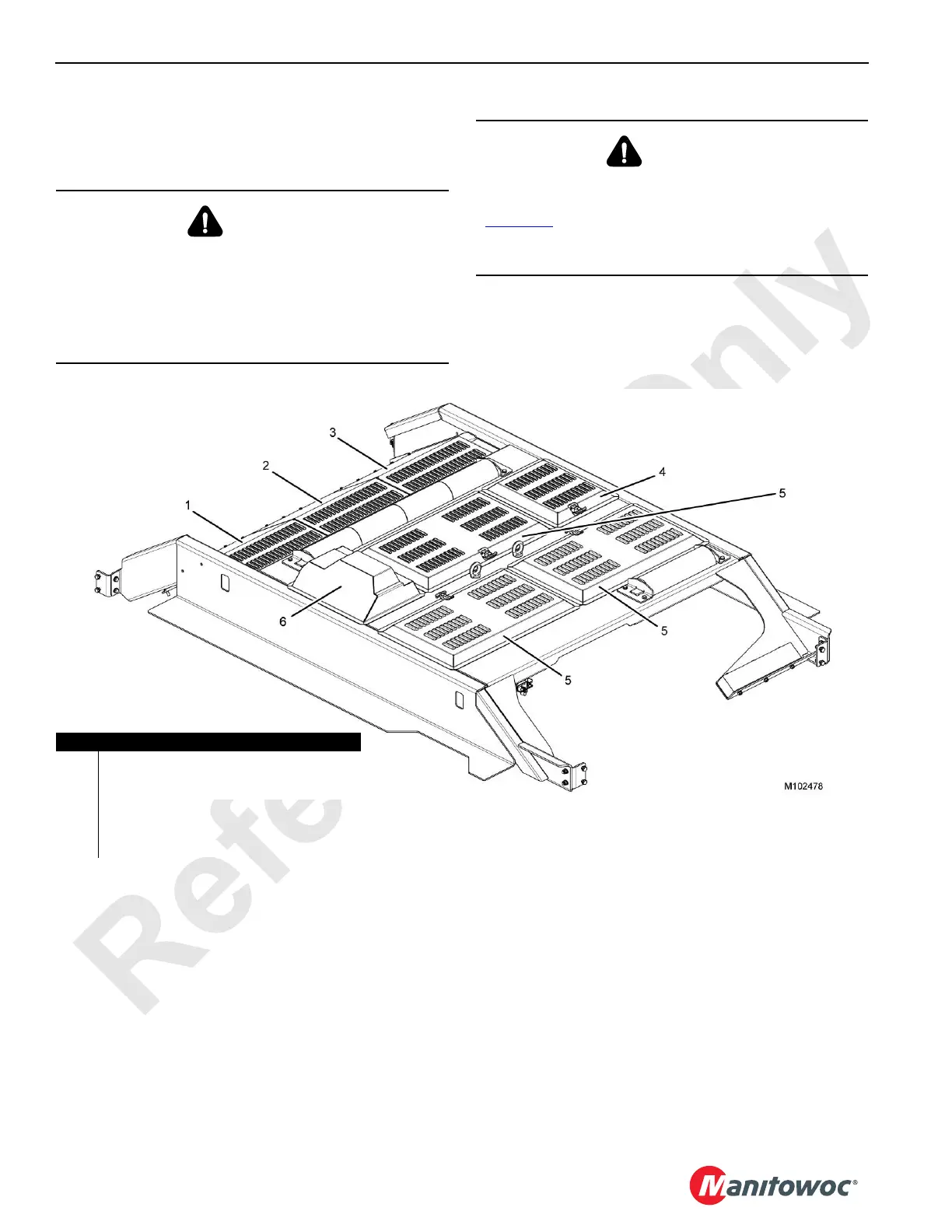

FIGURE 7-5
Item Description
1 Engine Panel—6.97 kg (15.36 lb)
2 Engine Panel—6.66 kg (14.68 lb)
3 Engine Panel—6.97 kg (15.48 lb)
4 Engine Panel—5.57 kg (12.28 lb)
5 Engine Panel—8.9 kg (19.62 lb)
6 Engine Panel—7.38 kg (16.27 lb)
