MLC300 SERVICE/MAINTENANCE MANUAL HOISTS
5

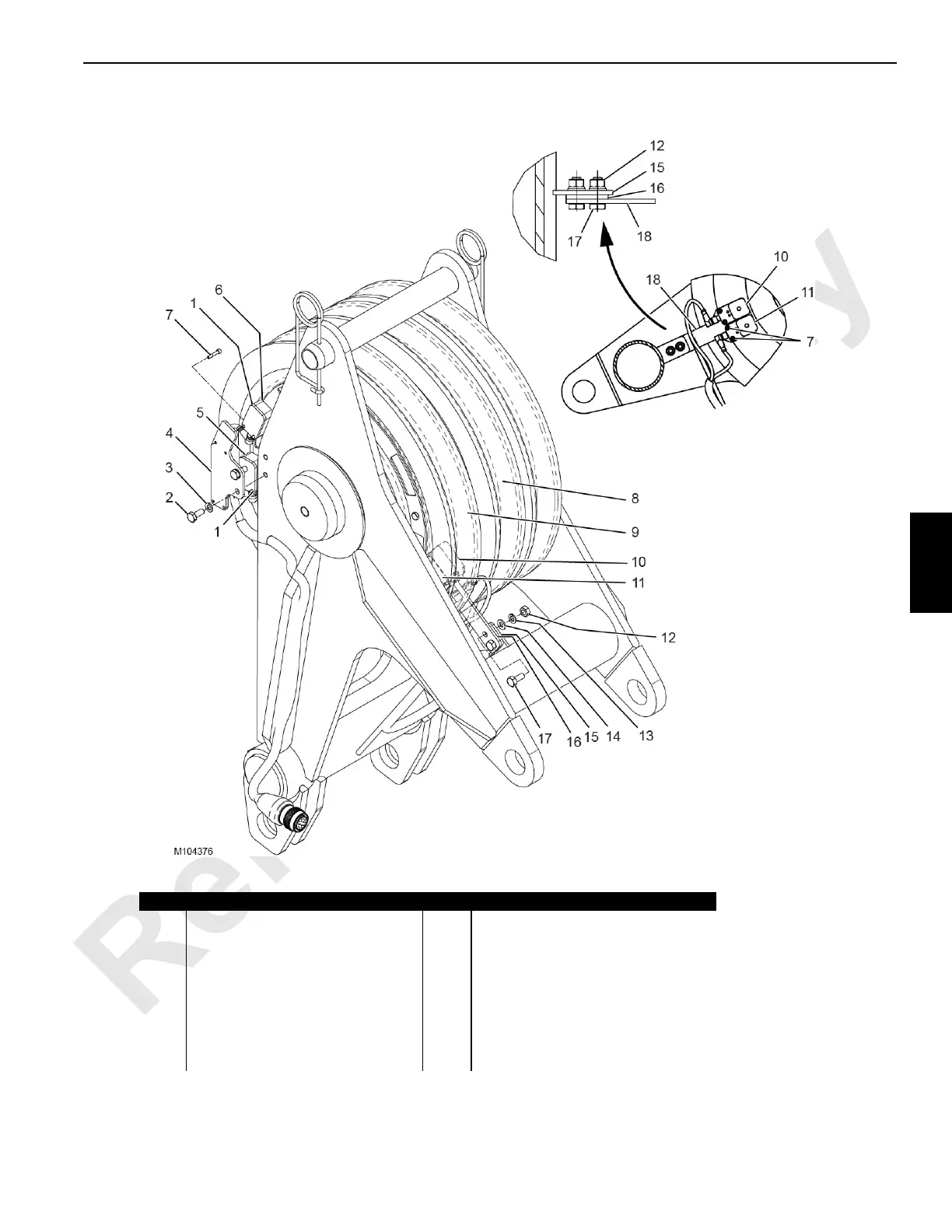

FIGURE 5-23
View A
Item Description Item Description
1 Shim (5 mm [0.2 in]) (as necessary) 10 Drum 2 Proximity Sensor B
2 Bolt (qty 2) 11 Drum 2 Proximity Sensor A
3 Lock Washer (qty 2) 12 Nut (qty 2)
4 Mounting Bracket 13 Lock Washer
5 Drum 3 Proximity Sensor B 14 Flat Washer (qty 4)
6 Drum 3 Proximity Sensor A 15 Guide Frame Bracket
7 Screw (qty 2 per sensor) 16 Shim (5 mm [0.2 in]) (as necessary)
8 Drum 2 Sheave 17 Bolt (qty 2)
9 Drum 3 Sheave 18 Mounting Bracket
