POWER TRAIN MLC300 SERVICE/MAINTENANCE MANUAL
7-10
Published 11-22-17, Control # 257-02
9. Carefully install new secondary filters (2b, View E), if
required, and gently push them into the back of the
housing. Apply pressure to all four corners and tabs to
make sure each filter is completely secure in the
housing.
10. Repeat the previous step for the primary filters
(2a, View D).
11. Install the inlet/pre-cleaner cover (3, View A), making
sure the seal is in place. Fasten the latches. The cover
should go on without extra force.
Never use the latches on the cover to force the filters
into the air cleaner. It is tempting to assume that the
cover will do the job of sealing the filters, but it will not.
Using the latches to push the filters into the housing
could damage the housing and will void the warranty.
Close and latch the enclosure cover (1, View A).
12. Push the reset button on the service indicator
(5, View B).
Item Description
1 Enclosure Cover
2 Air Cleaner Housing
2a Primary Filter (qty 2)
2b Secondary Filter (qty 2)
3 Inlet/Pre-Cleaner Cover
4Dust Ejector
5 Service Indicator
5a Reset Button
5b Indicator Window
View D
View E
View A
View B
View C

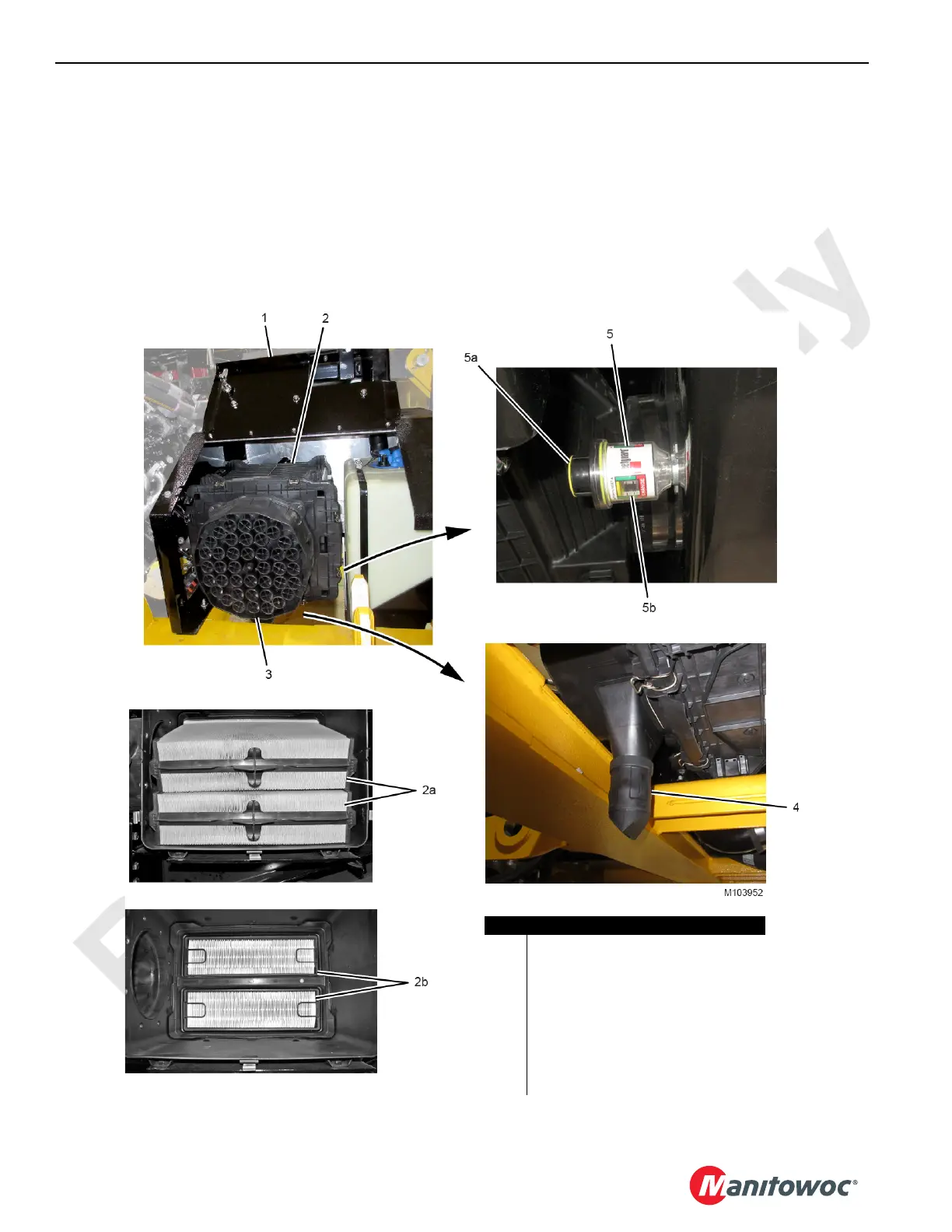

FIGURE 7-9
To Next Page
