OPERATING CONTROLS AND PROCEDURES MLC300 OPERATOR MANUAL

3-54

Published 11-20-19, Control # 234-19

DRUM AND CONTROL HANDLE IDENTIFICATION

Drum Description

1 Main Hoist

2 Auxiliary Front Hoist (optional)

3 Auxiliary Rear Hoist (optional)

Boom Hoist (standard) OR Mast Hoist

(VPC-MAX)

5 Boom Hoist (VPC-MAX)

6 Luffing or Auxiliary Hoist

7 Tagline Winch (optional)

0 Rigging Winch (optional)

Drum Numbers Change to

Match Selected Configuration

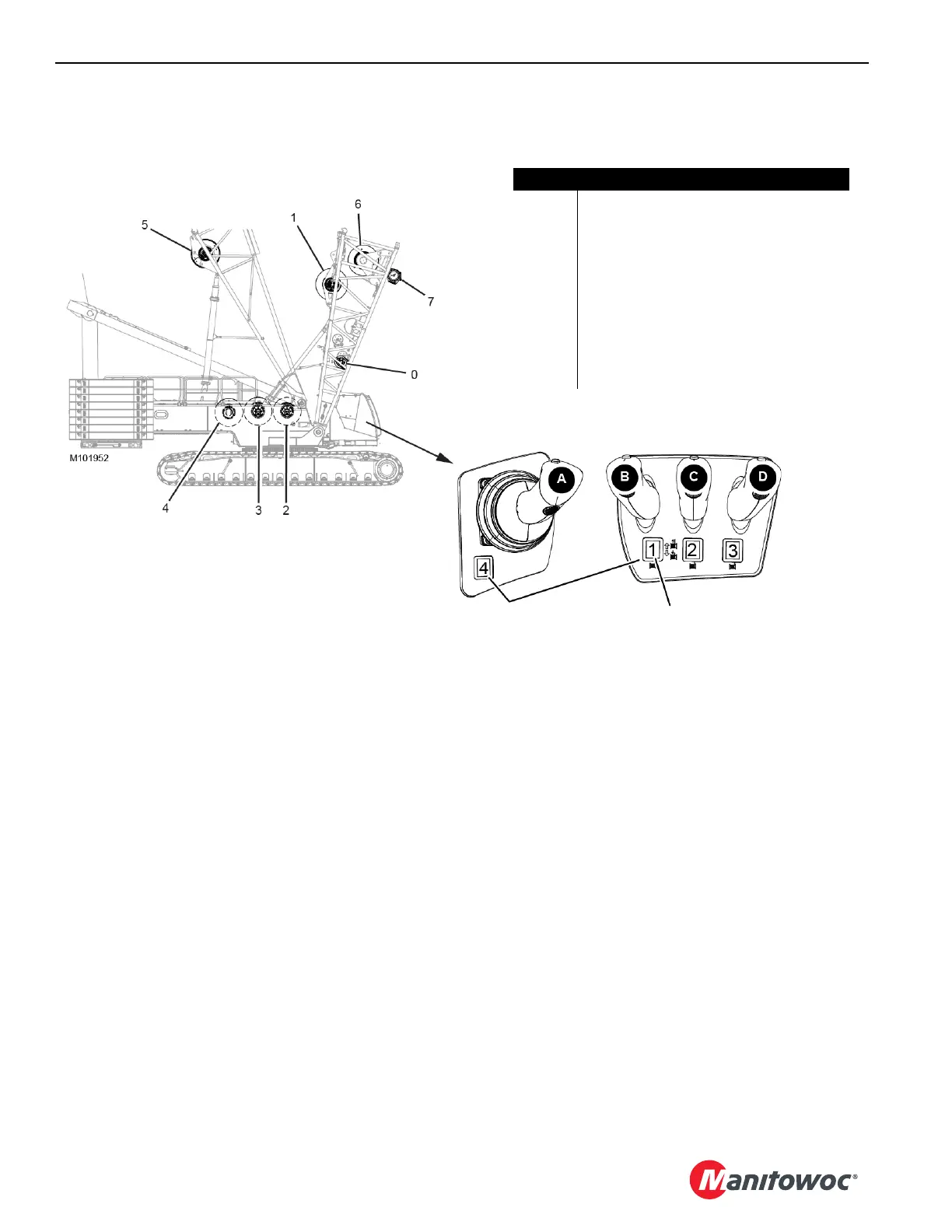

Figure 3-7. Drum Identification

T Appears if TANDEM Drums

are Configured and Both

Drums are Unparked
