SETUP AND INSTALLATION MLC300 OPERATOR MANUAL
4-112
Published 11-20-19, Control # 234-19
CRANE DISASSEMBLY
Before proceeding, read and understand all of the topics on
page 4-1
through page 4-13.
Prepare Crane
1. Position the crane in the desired disassembly area.
2. If required, block under the boom end of the
crawlers. See the following:
• Appropriate Liftcrane Boom or Jib Capacity Chart
for blocked crawler requirements.
• Crawler Blocking Diagram in the Capacity Chart
Manual for blocking dimensions.

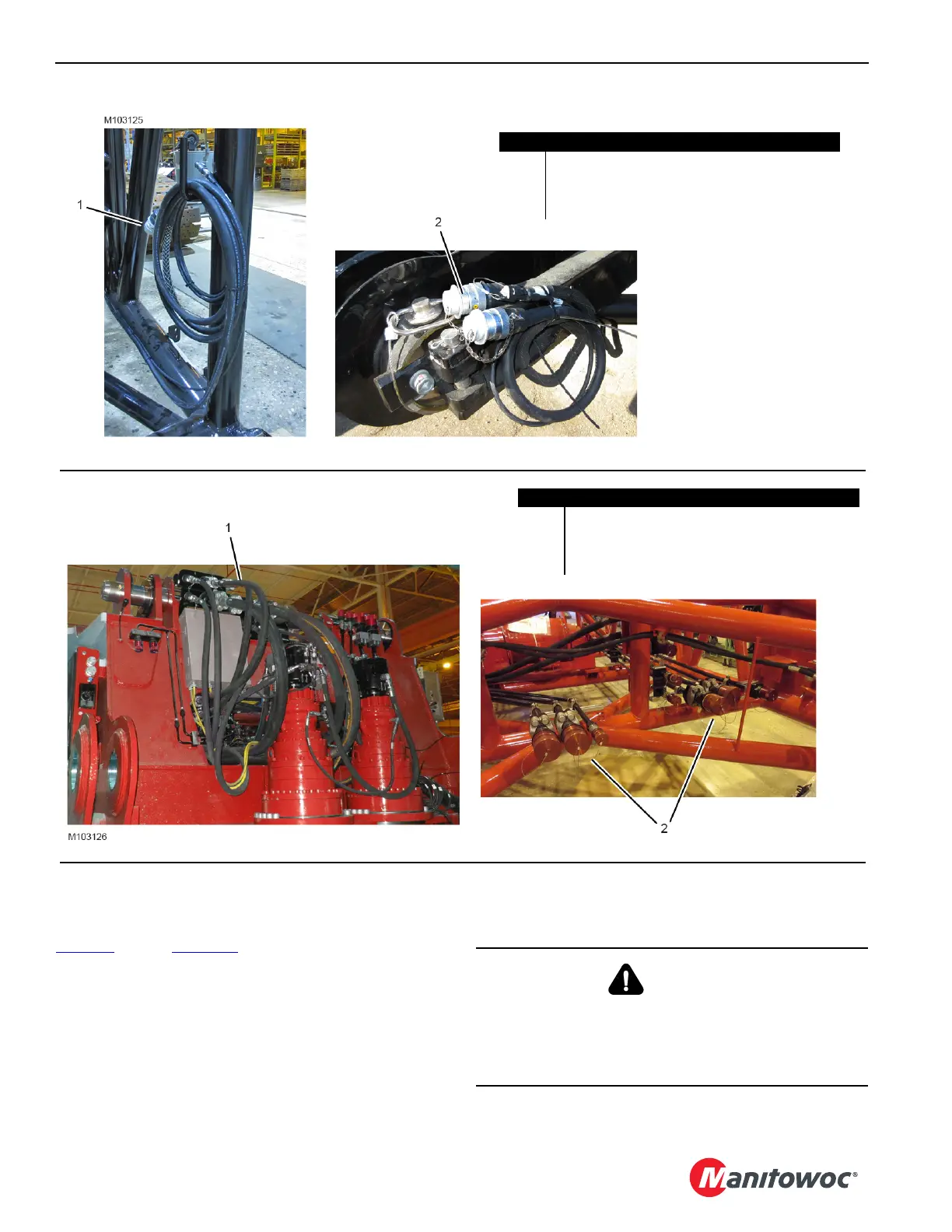

Figure 4-77
Item Description
1 Electric Cables from Cable Reels in Boom Insert
Stored on Top End of Boom Butt
2 Electric Cables from Boom Butt to Rotating Bed
Stored on Bottom End of Boom Butt
Figure 4-78
Item Description
1 Hydraulic Hoses from Rotating Bed to Boom Butt
Stored on Front of Rotating Bed
2 Dust Caps Installed on Couplers in Bottom End
Boom Butt
DANGER
Tipping Hazard!
Do not attempt to lower the boom or the boom and jib to
the ground until the crawlers are blocked, if required.
Otherwise, the crane will tip.
To Next Page
