Manitowoc Published 11-20-19, Control # 234-19 4-41
MLC300 OPERATOR MANUAL SETUP AND INSTALLATION
Camera Connections

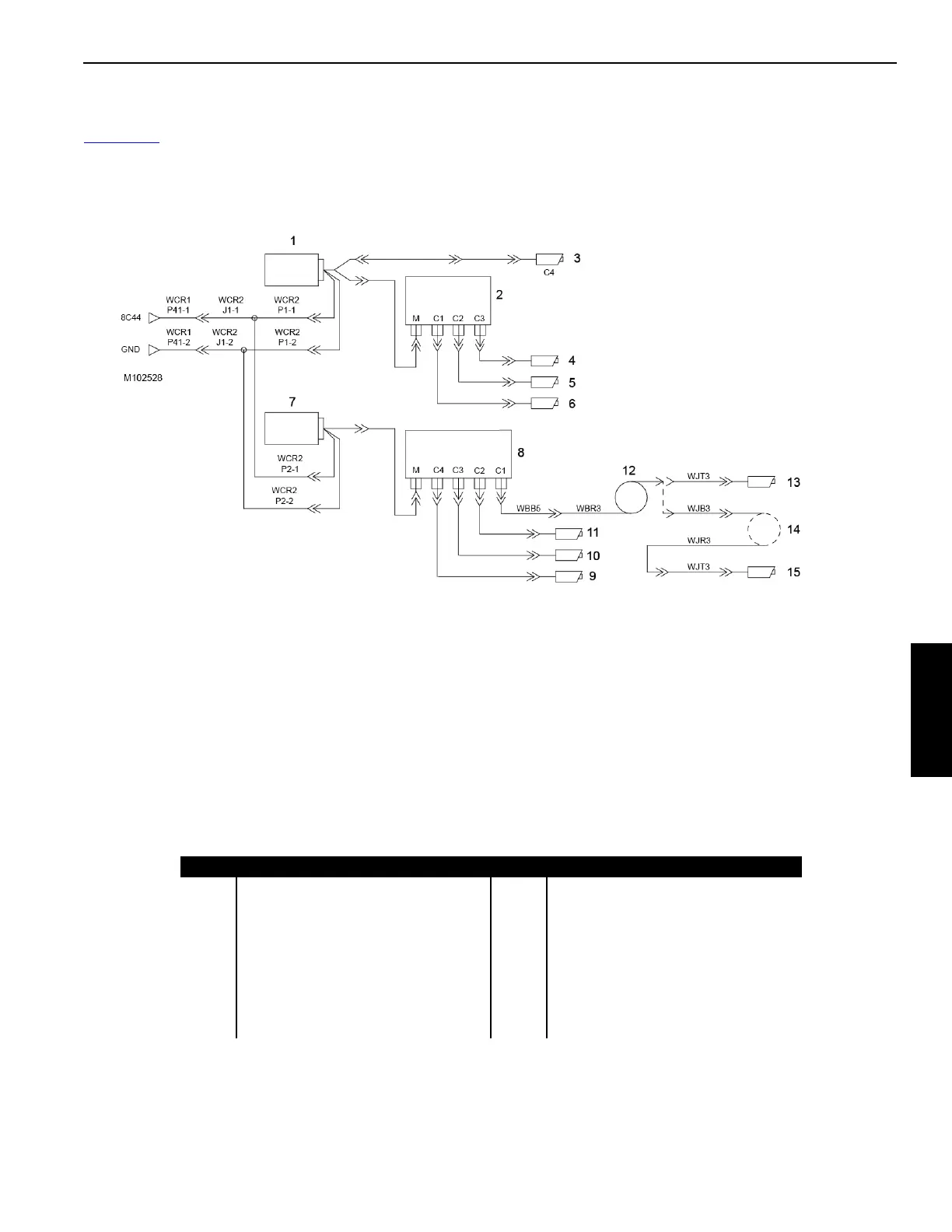

Figure 4-30 shows Manitowoc recommended connections to
the camera (CCTV) switchers on the front of the rotating bed.
The crane owner can rearrange the connections as desired
to meet operator preference.
Figure 4-30
Item Description Item Description
1 Upper Monitor (in cab) 9 Camera: Drum 2/3
2 Camera Switcher 10 Camera: VPCMAX Rear of Rotating Bed
3 Lower Monitor (in cab) 11 Camera: Drum 4
4 Camera Switcher 12 Cable Reel in Boom
5 Camera: VPC Rear of Fixed Mast 13 Camera: Boom Top
6 Camera: Drum 1 14 Cable Reel in Jib
7 Camera: Drum 6 15 Camera: Jib Top
8 Camera: Drum 5
To Next Page
