OPERATING CONTROLS AND PROCEDURES MLC300 OPERATOR MANUAL
3-58
Published 11-20-19, Control # 234-19

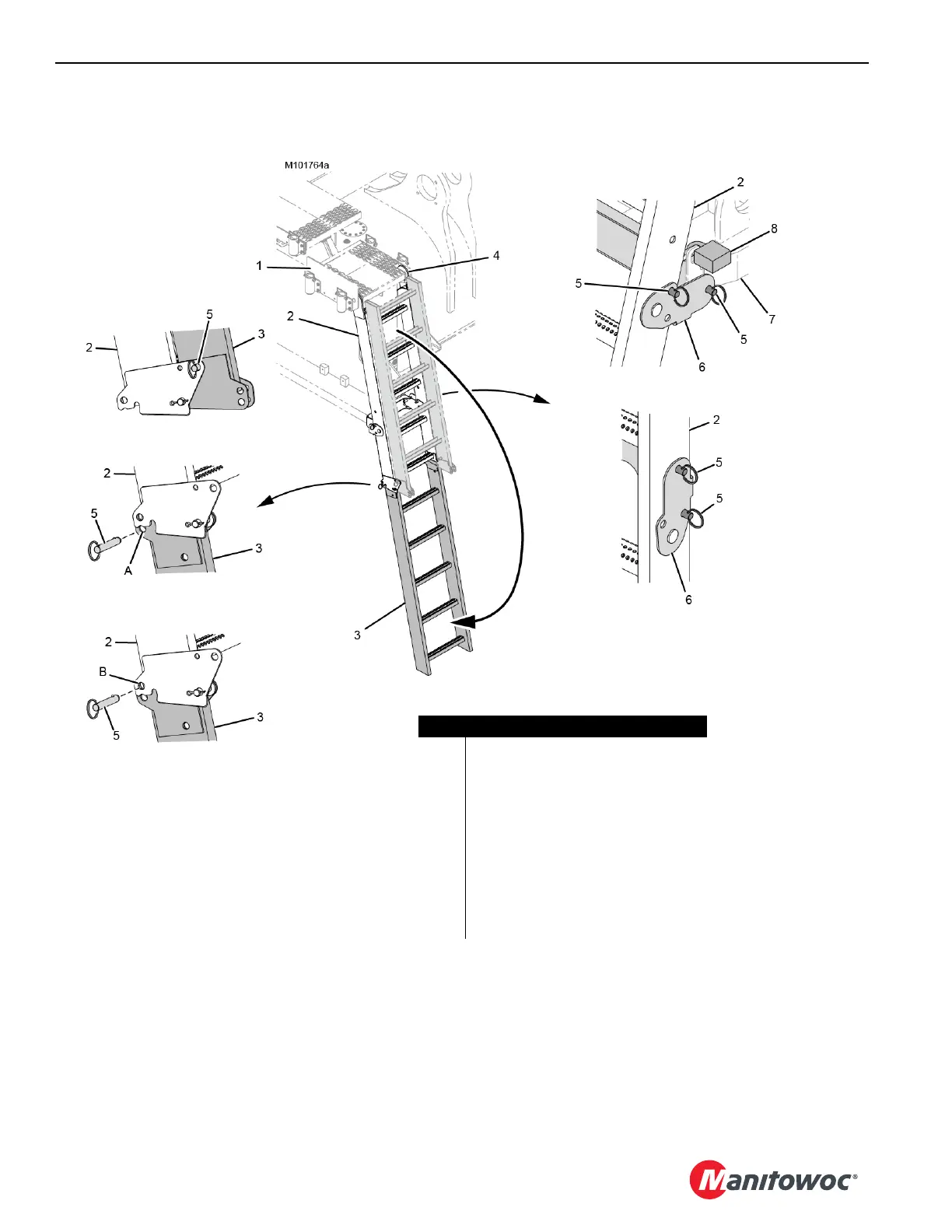

Figure 3-11. Ladder (past)
Item Description
1 Left-Rear Platform
2 Top Ladder
3 Bottom Ladder
4 Ladder Hook (2)
5 Pin with Hair-Pin Cotter (2)
6 Ladder Support Bracket
7 Rotating Bed Lug
8Padlock
A Lower Hole for Rotating Bed Working
B Upper Hole for Standalone
View A — STORED
View B— ROTATING BED WORKING
View C — STANDALONE
View E — STANDALONE
View D — ROTATING BED WORKING
