OPERATING CONTROLS AND PROCEDURES MLC300 OPERATOR MANUAL
3-74
Published 11-20-19, Control # 234-19

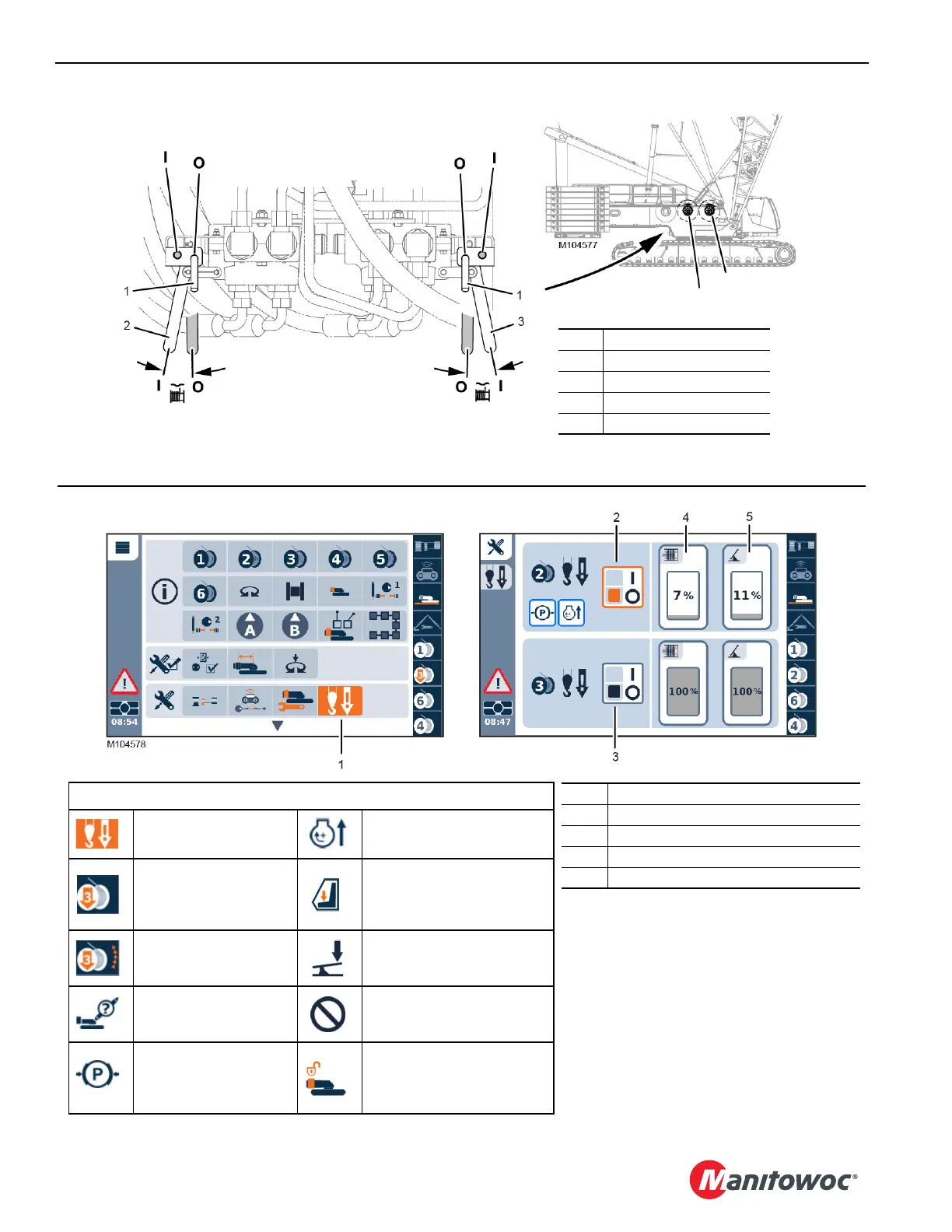

1 Locking Pin
2 Selector Handle (Drum 2)
3 Selector Handle (Drum 3)
IOn
OOff
Drum 2
Drum 3
Figure 3-23. Free Fall Selector Valves
1 Free Fall Mode
2 Drum 2 I/O Selection Box
3 Drum 3 I/O Selection Box
4 Free Fall Drum Slip Selection Box
5 Free Fall Pedal Response Selection Box
Figure 3-24. Free Fall Selection Screen
Menu
Screen
Free Fall
Selection Screen
Free Fall Icon Identification
Free Fall
Engine Off: engine must be
running to enable free fall.
Free Fall Enabled for
Corresponding Drum
Operator Out of Seat: operator
must remain seated to enable
free fall. Drum will park if
operator gets out of seat.
Corresponding Drum
Paying Out Load Line (load
is free falling)
Latch Pedal: corresponding free
fall pedal must be latched to
enable free fall.
Invalid Configuration:
cannot turn on free fall if
configured with VPC-MAX.
Operating Limit Active: correct
all active operating limits.
Function Parked:
corresponding drum must
be unparked to turn on free
fall.
VPC Unlocked: VPC must be
LOCKED to confirm free fall.
