OPERATING CONTROLS AND PROCEDURES MLC300 OPERATOR MANUAL
3-88
Published 11-20-19, Control # 234-19

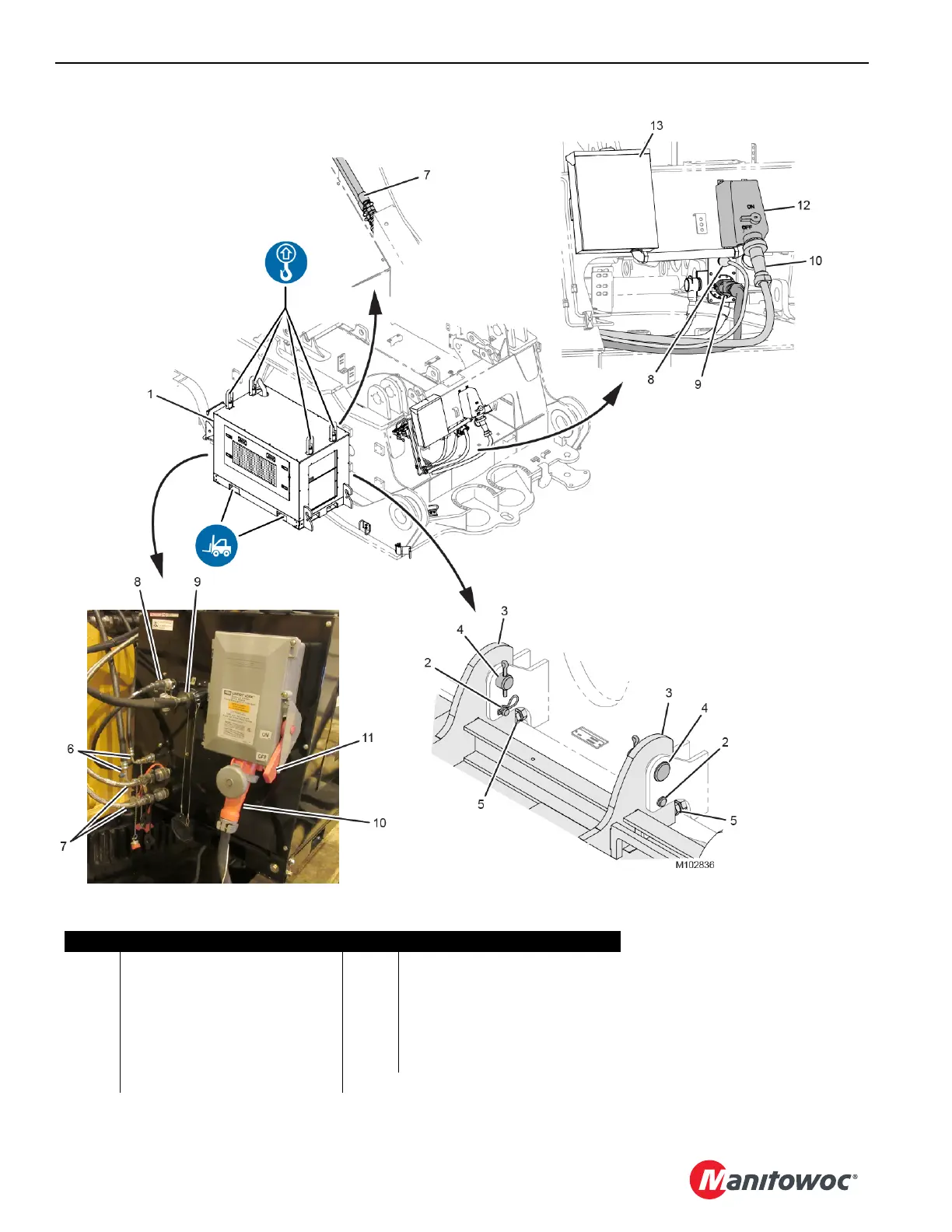

Figure 3-32. AC Generator
View A
View B
View C
View D
View E
Item Description Item Description
1 APU 8* Electric Cable (DC, WAC1)
2 Locking Pin with Hair-Pin Cotter (2) 9* Electric Cable (DC, WAD1)
3 Hook (2) 10* Power Supply Cable (AC, WAA1)
4 Fixed Pin (2) 11 Interlock Switch
5 Adjusting Bolt with Nuts (2) 12 Interlock Switch
6 Air Conditioner Hose (2) 13 Load Center
7* Fuel Hose (2) * Stored in Job Box
