MLC300 OPERATOR MANUAL SETUP AND INSTALLATION
3
1
4

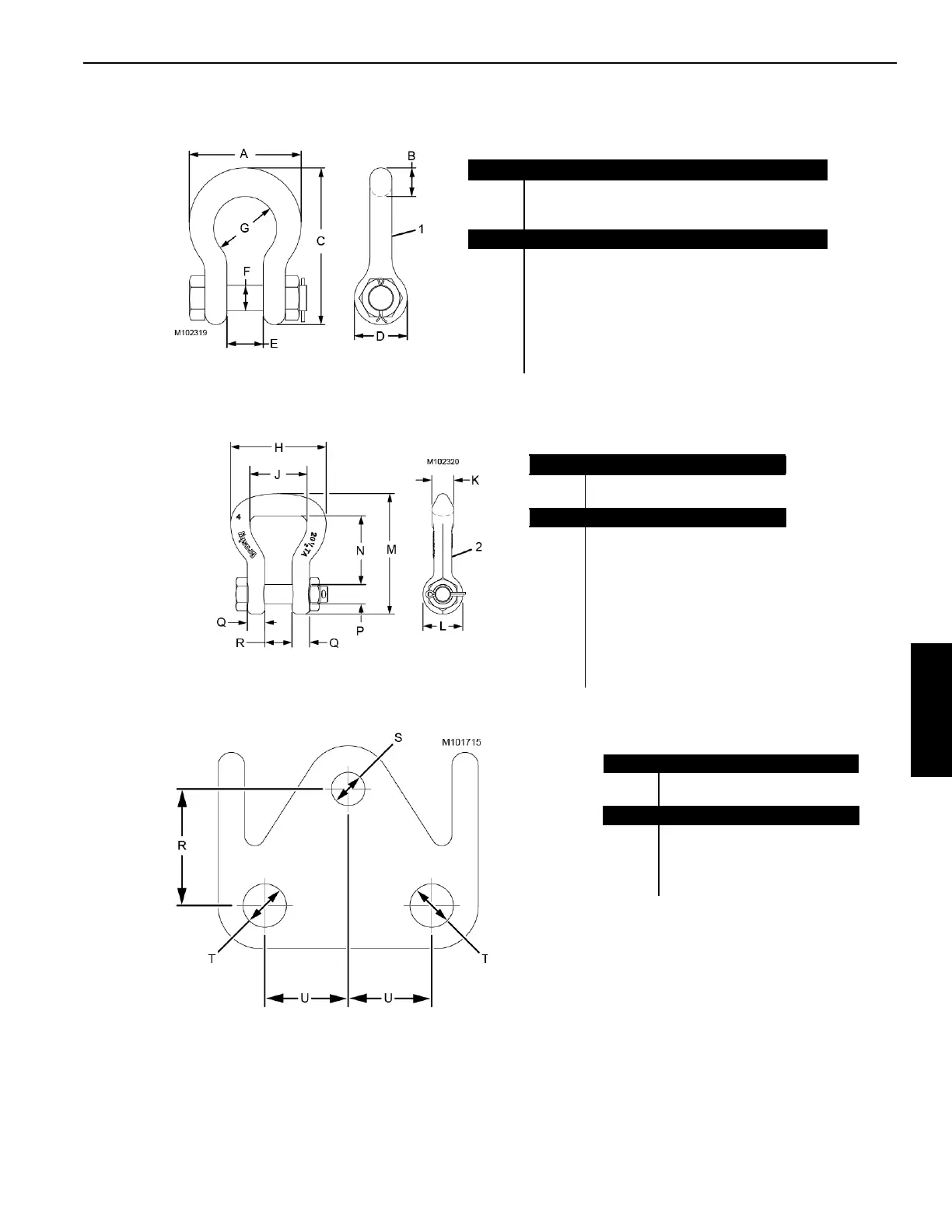

Figure 4-6
Item Description
3 Lifting Link: 40 t (44 USt)
Attached to Self-Erect Cylinder
Item mm in
R 175,0 6.89
S 50,2 1.98
T 65,0 2.56
U 125,0 4.92
PAST AND CURRENT PRODUCTION
Item
Description
1 Shackle: 25 t (28 USt)
Six Supplied by Manitowoc, Past Production
Two, Supplied by Manitowoc, Current Production
Item mm in
A 225,0 8.86
B 57,0 2.25
C 313,0 12.34
D 106,0 4.19
E 73,0 2.88
F 51,0 2.00
G 127,0 5.00
PAST AND CURRENT PRODUCTION
Item
Description
2 Shackle: 20,5 t (23 USt)
Four Supplied by Manitowoc
Item mm in
H 190,5 7.5
J 114,3 4.5
K44,5 1.75
L79,2 3.12
M 240,0 9.45
N 136,5 5.37
P38,9 1.53
Q35,1 1.38
R54,1 2.13
