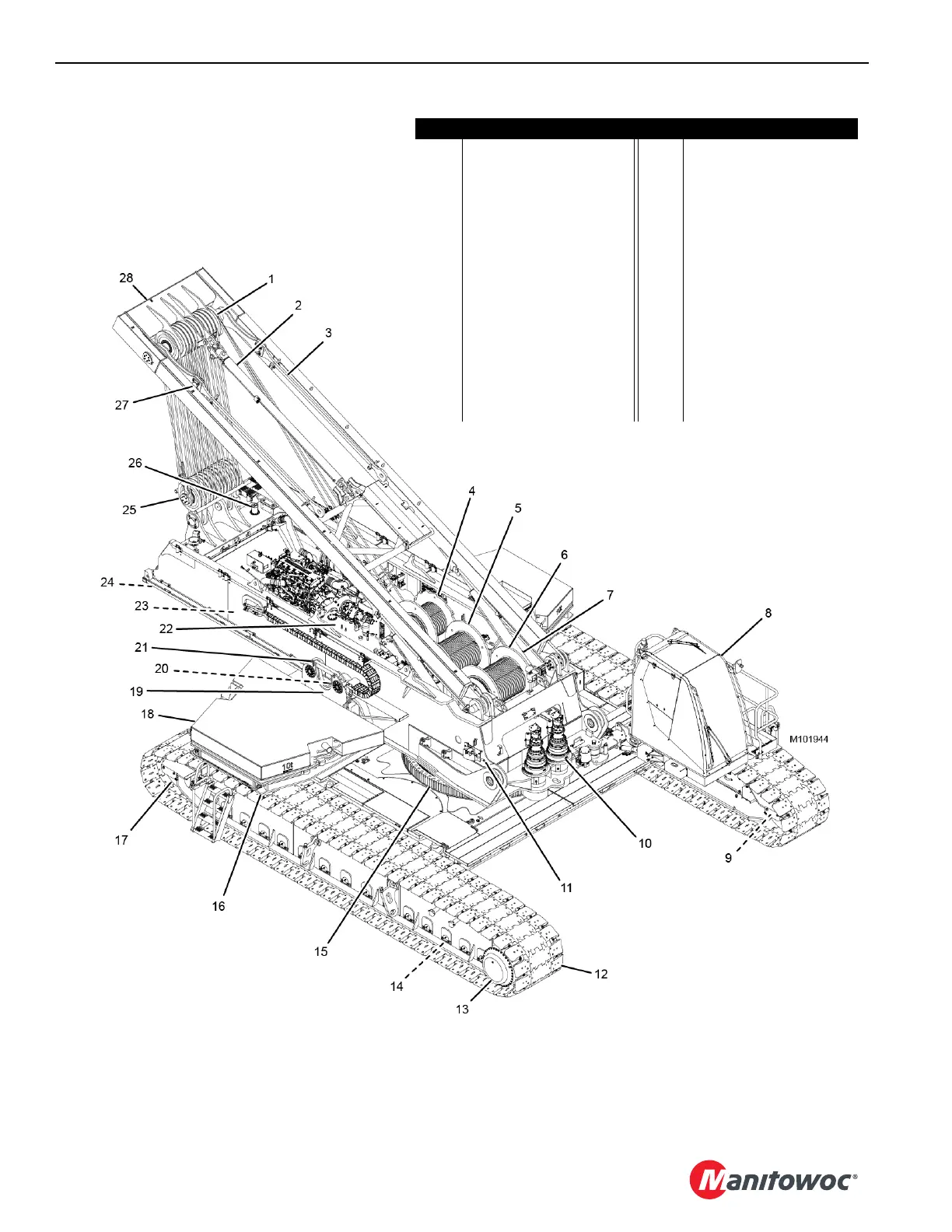

Figure 1-4. Right-Front View
Item Description Item Description
1 Live Mast Sheaves 15 Turntable Bearing
2 Self-Erect Cylinder 16 VPC™ Tray
3 Live Mast Straps 17 Roller
4 Drum 4 18 Counterweight Box
5 Drum 3 19 VPC Trolley
6 Drum 2 20 VPC Drive
7 Mast-Assist Arms (2) 21 VPC Roller
8 Operator Cab 22 Hydraulic Tank
9 Tread Slack Adjustor 23 Batteries
10 Swing Drive 24 Gear Rack
11 Boom Stop Switch 25 Mast Equalizer
12 Crawler 26 Fuel Tank
13 Crawler Drive 27 Load Pin (right side only)
14 Intermediate Roller 28 Live Mast
