SETUP AND INSTALLATION MLC300 OPERATOR MANUAL
4-38
Published 11-20-19, Control # 234-19

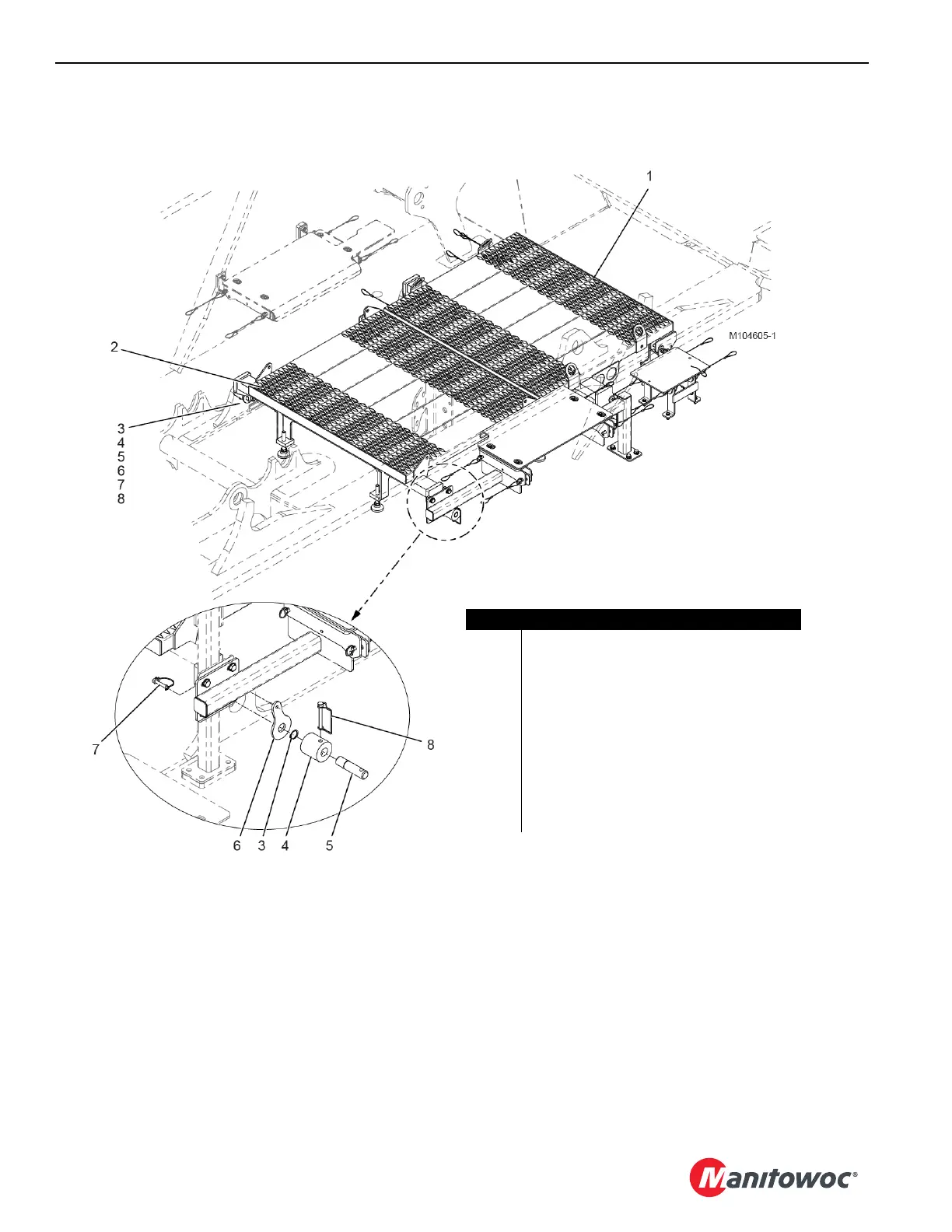

Figure 4-29
Item Description
1 Front Platform
2 Rear Platform
3 Retaining Ring (qty 4)
4 Bushing (qty 4)
5 Pin (qty 4)
6 Plate (qty 4)
7 Safety Pin (qty 4)
8 Safety Pin (qty 4)
9 Quick-Release Pin with Lanyard (qty 8)
10 Support Bracket (qty 2)
View A — Shipping/Working
Configuration without Drums 2 and 3
View B — Typical 4 Places
